'AFA' 4WB-F

4 Way Breeching Inlet

Size
100 mm


Pressure Rating
PN10


Connection
Flanged

Ask For A Quote
Quantity:
Certified by

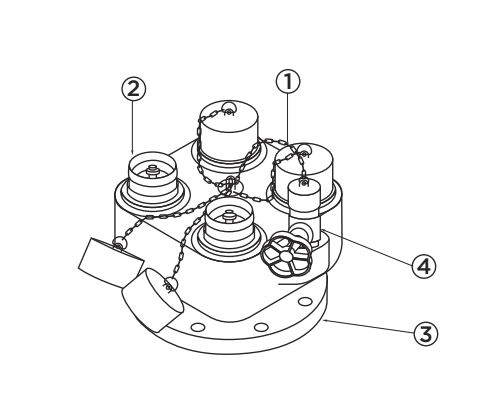

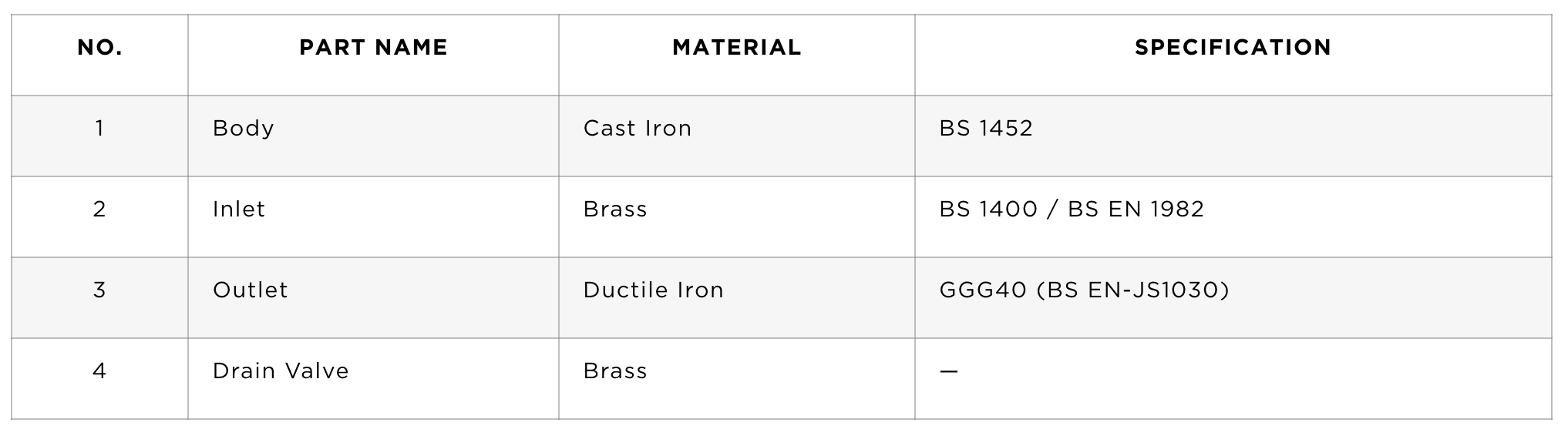

NO.PART NAMEMATERIALSPECIFICATION
1BodyCast IronBS 1452
2InletBrass BS 1400 / EN 1982
3OutletDuctile IronGGG40 (EN-JS1030)
4Drain ValveBrass
  • 1″ drain valve complete with blank cap and chain
  • Hydrostatically tested and manufactured in accordance with BS 5401-3:1975
  • Inlet male instantaneous connections complying with BS 336:2010
  • 4″ outlet flanged to 6″ BS 10:1962 Table E

Working Pressure: 10 Bar

Testing Pressure: Seal: 20 Bar

Working Temperature: 0°C- 50°C
