‘AFA’ FIG933G-H

Ductile Iron Resilient Seated Gate Valve

Size
50 – 300 mm

Pressure Rating
PN25

Type
Non-rising stem
Resilient seat
Flanged Connection

Ask For A Quote

Dimension:

Quantity:

Certified by

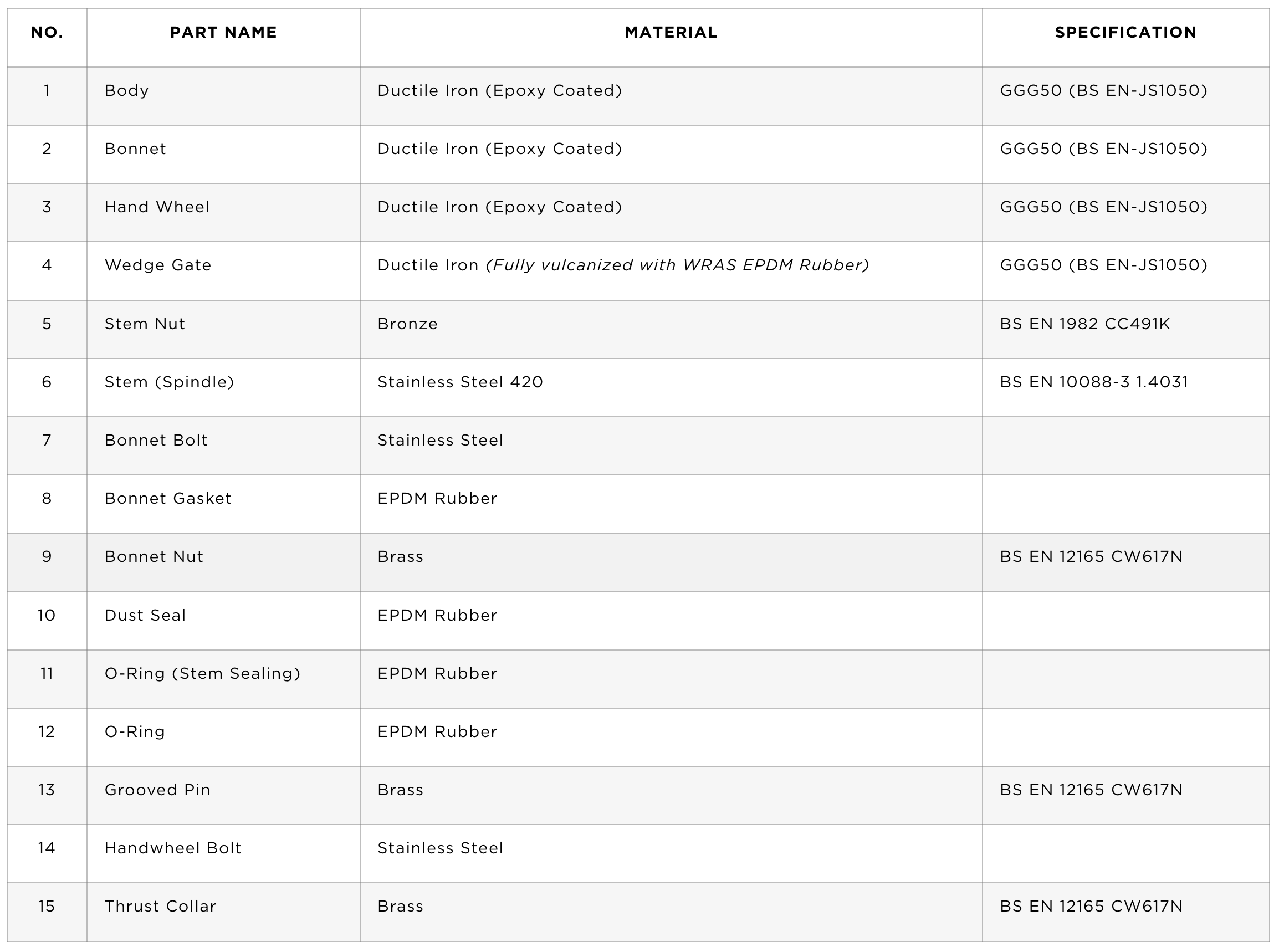

NO.	PART NAME	MATERIAL	SPECIFICATION
1	Body	Ductile Iron (Epoxy Coated)	GGG50 (EN-JS1050)
2	Bonnet	Ductile Iron (Epoxy Coated)	GGG50 (EN-JS1050)
3	Hand Wheel	Ductile Iron (Epoxy Coated)	GGG50 (EN-JS1050)
4	Wedge Gate	Ductile Iron (fully vulcanised with WRAS EPDM rubber)	GGG50 (EN-JS1050)
5	Stem Nut	Bronze	BS EN 1982 CC491K
6	Stem (Spindle)	Stainless Steel 420	BS EN 10088-3 1.4031
7	Bonnet Bolt	Stainless Steel
8	Bonnet Gasket	EPDM Rubber
9	Bonnet Nut	Brass	BS EN 12165 CW617N
10	Dust Seal	EPDM Rubber
11	O-Ring (Stem Sealing)	EPDM Rubber
12	O-Ring	EPDM Rubber
13	Grooved Pin	Brass	BS EN 12165 CW617N
14	Handwheel Bolt	Stainless Steel
15	Thrust Collar	Brass	BS EN 12165 CW617N

Non-rising stem, inside screw
Hydrostatically tested to BS EN 12266-1:2012
Manufactured in accordance with BS 5163 / EN 1171
Flanged to EN 1092-1 PN25
Applicable for Waterwork, Sewage Systems, Drainage Systems, Fire Protection System, HVAC System, Plumbing / Sanitary System, Heating System, Irrigation System

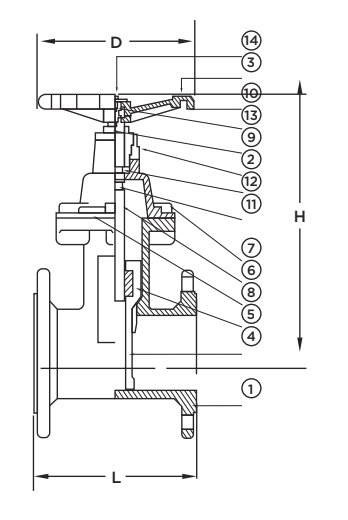

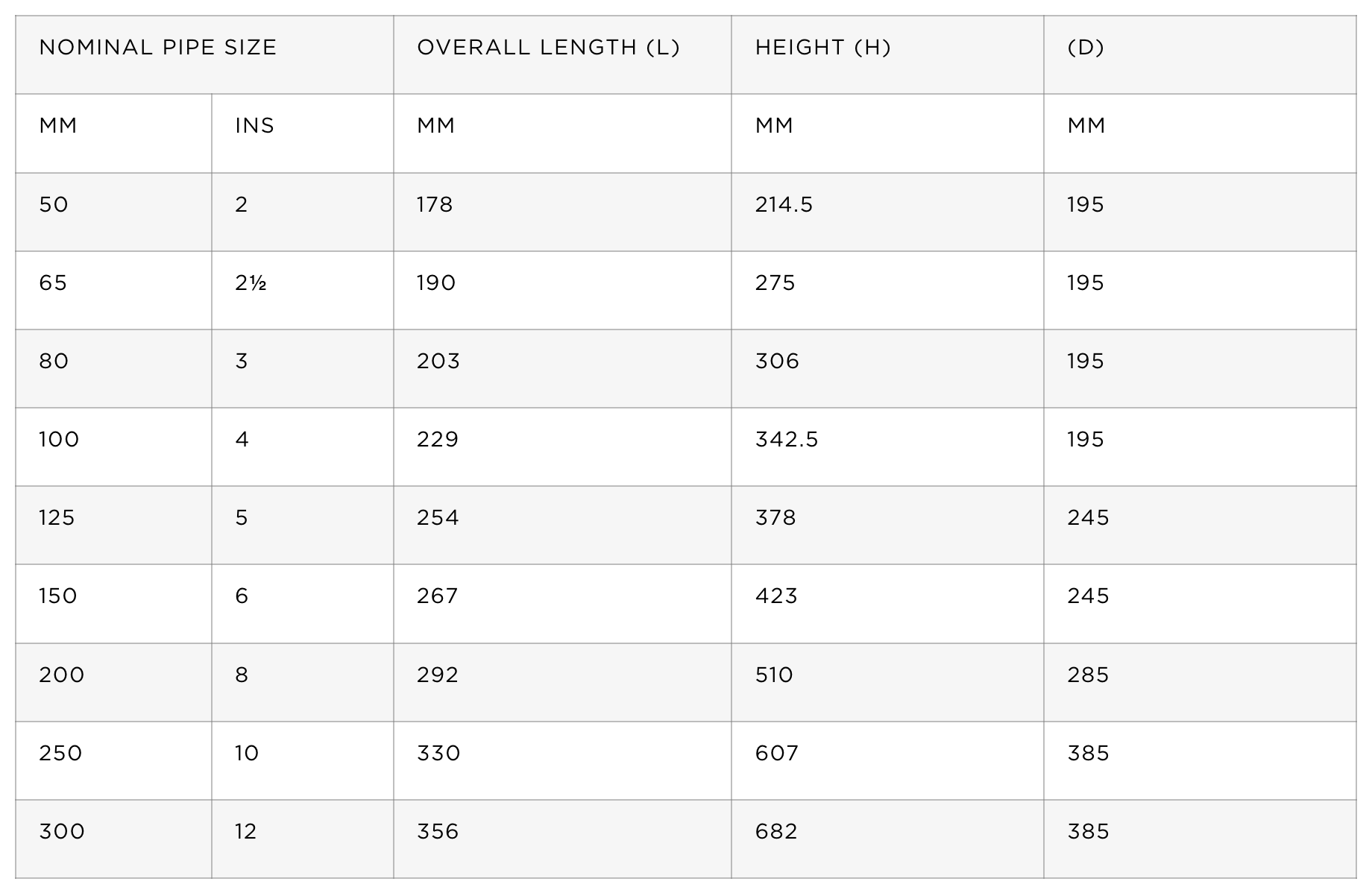

NOMINAL PIPE SIZE		OVERALL LENGTH (L)	HEIGHT (H)	D
MM	IN	MM	MM	MM
50	2	178	214.5	195
65	2 1/2	190	275	195
80	3	203	306	195
100	4	229	342.5	195
125	5	254	378	245
150	6	267	423	245
200	8	292	510	285
250	10	330	607	385
300	12	356	682	385

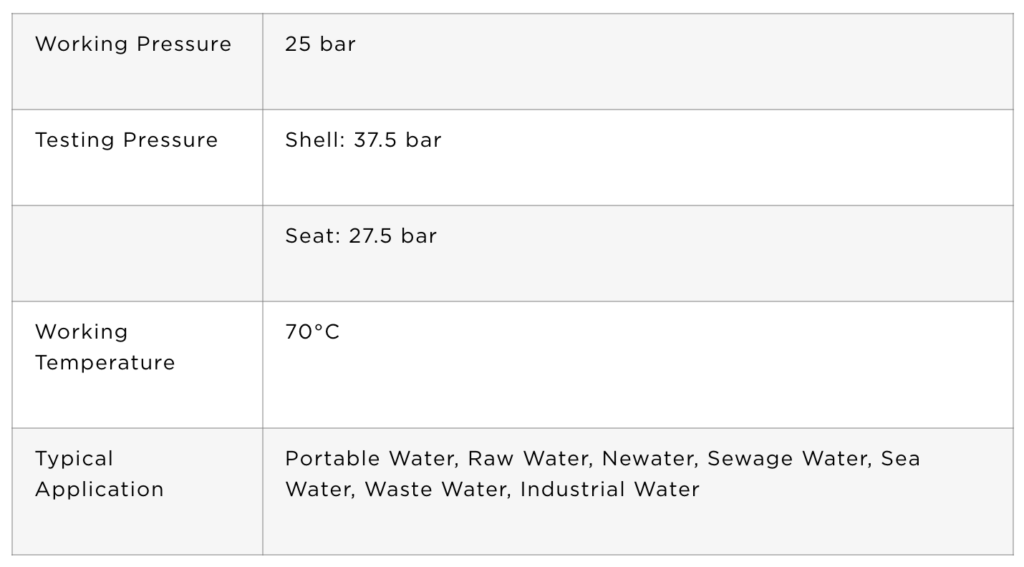

Working Pressure: 25 bar

Testing Pressure: Shell: 37.5 bar | Seat: 27.5 bar

Working Temperature: 70°C

Typical Application: Portable Water, Raw Water, Newater, Sewage Water, Sea Water, Waste Water, Industrial Water
