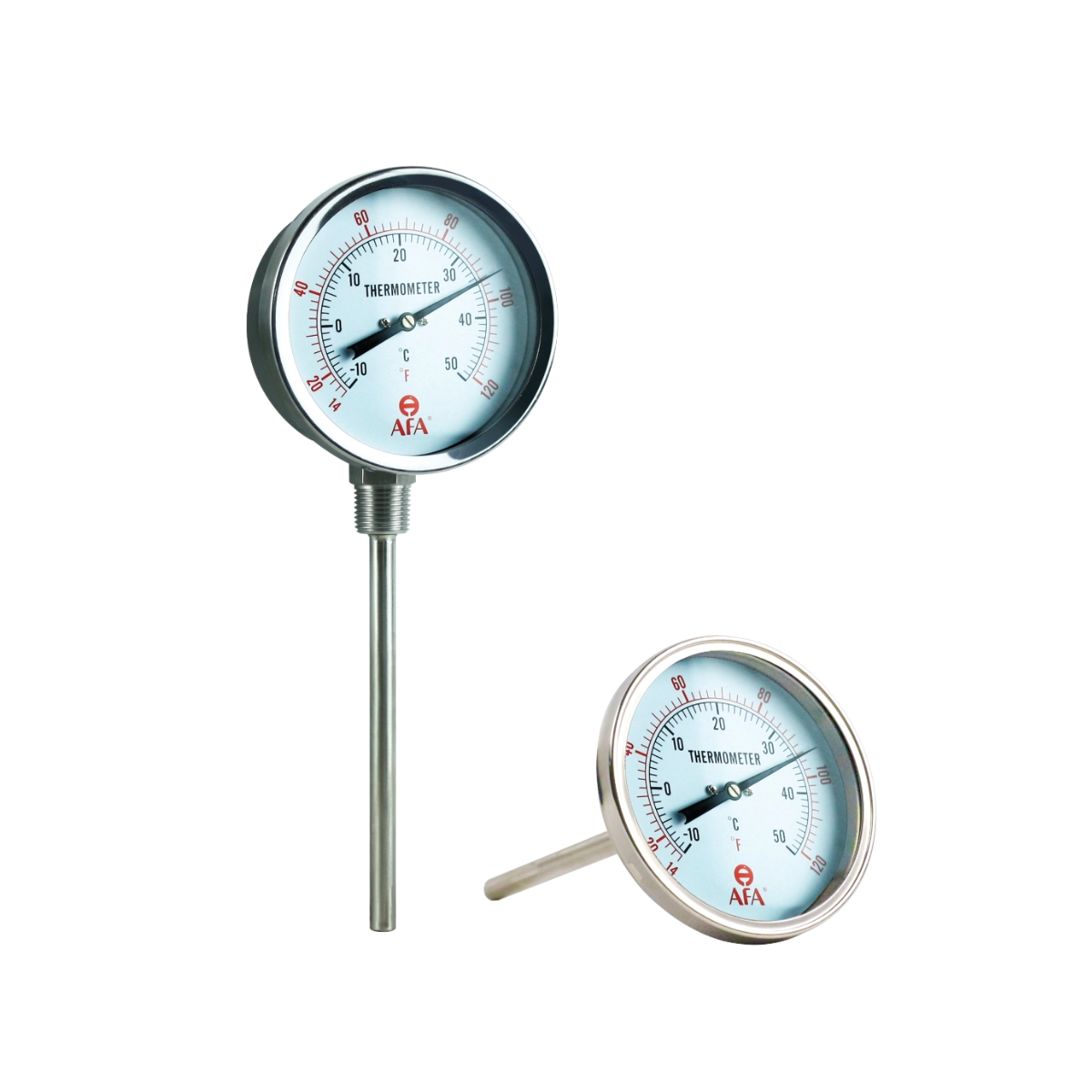

'AFA' BTM-BT | BTM-BTB

Bimetal Thermometer

Length
4″ , 6″


Temperature Range
-10°C – 50°C


Connection
1/2″ BSPT

Ask For A Quote
Quantity:
Certified by
Case Size6" (150 mm)
Stem Length2 1/2" (65 mm) | 4" (100 mm) | 6" (150 mm)
Temperature Range-30°C - 50°C
Scale ReadingCelcius (°C) & Fahrenheit (°F)
CaseAluminum, anodized gold with black markings
TubeGlass Cushioned
Liquid FillingOrganic red liquid
StemBrass
Connection1/2" BSPT
Swivel NutBrass
  • Lower Mount (BTM-BT) and Back Mount (BTM-BTB)
  • Stainless steel casing
  • Dual scale pressure units reading in Celsius (°C) and Fahrenheit (°F)
  • Applicable for HVAC Systems, Machine Building, Vessel Piping and Apparatus Construction.

Operating Pressure: Max 25 Bar

Ambient Temperature: -40°C – 70°C

Operating Temperature: Maximum 80% of full-scale value

Accuracy: +/- 1°C (Class 1 per EN 13190)

Protection: IP43 per EN 60529
