Size
15 – 100 mm
Pressure Rating
PN16
Type
2 – Piece Body

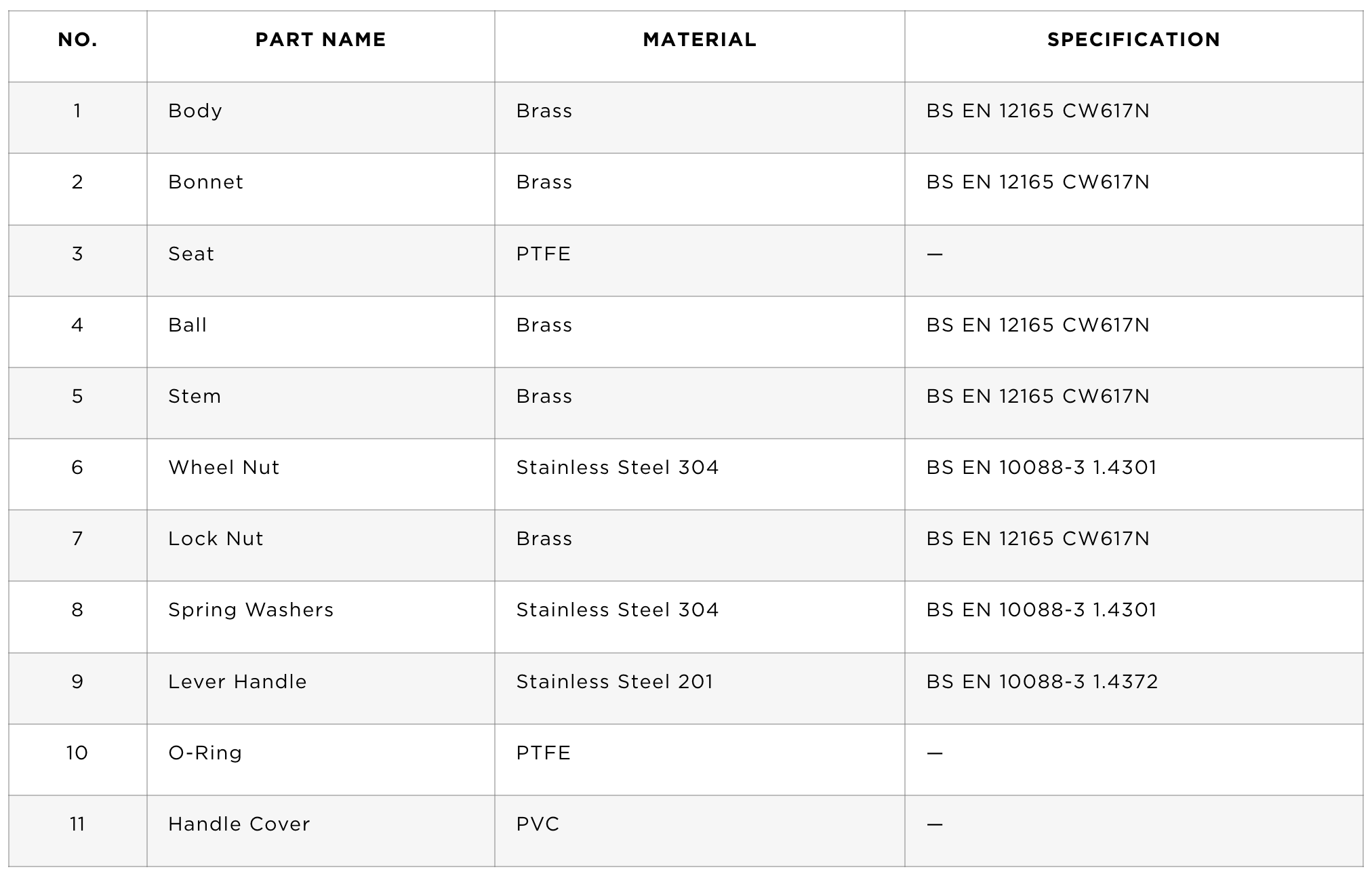

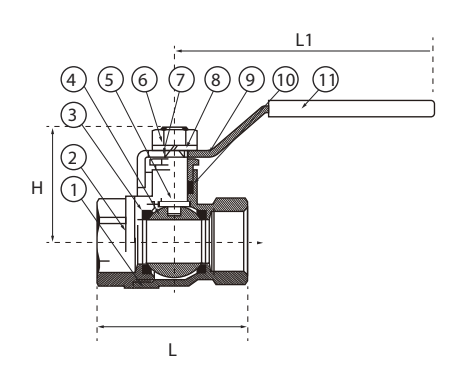

NO. | PART NAME | MATERIAL | SPECIFICATION |
---|---|---|---|
1 | Body | Brass | BS EN 12165 CW617N |
2 | Bonnet | Brass | BS EN 12165 CW617N |
3 | Seat | PTFE | |
4 | Ball | Brass | BS EN 12165 CW617N |
5 | Stem | Brass | BS EN 12165 CW617N |
6 | Wheel Nut | Stainless Steel 304 | BS EN 10088-3 1.4301 |
7 | Lock Nut | Brass | BS EN 12165 CW617N |
8 | Spring Washers | Stainless Steel 304 | BS EN 10088-3 1.4301 |
9 | Lever Handle | Stainless Steel 201 | BS EN 10088-3 1.4372 |
10 | O-Ring | PTFE | |
11 | Handle Cover | PVC |

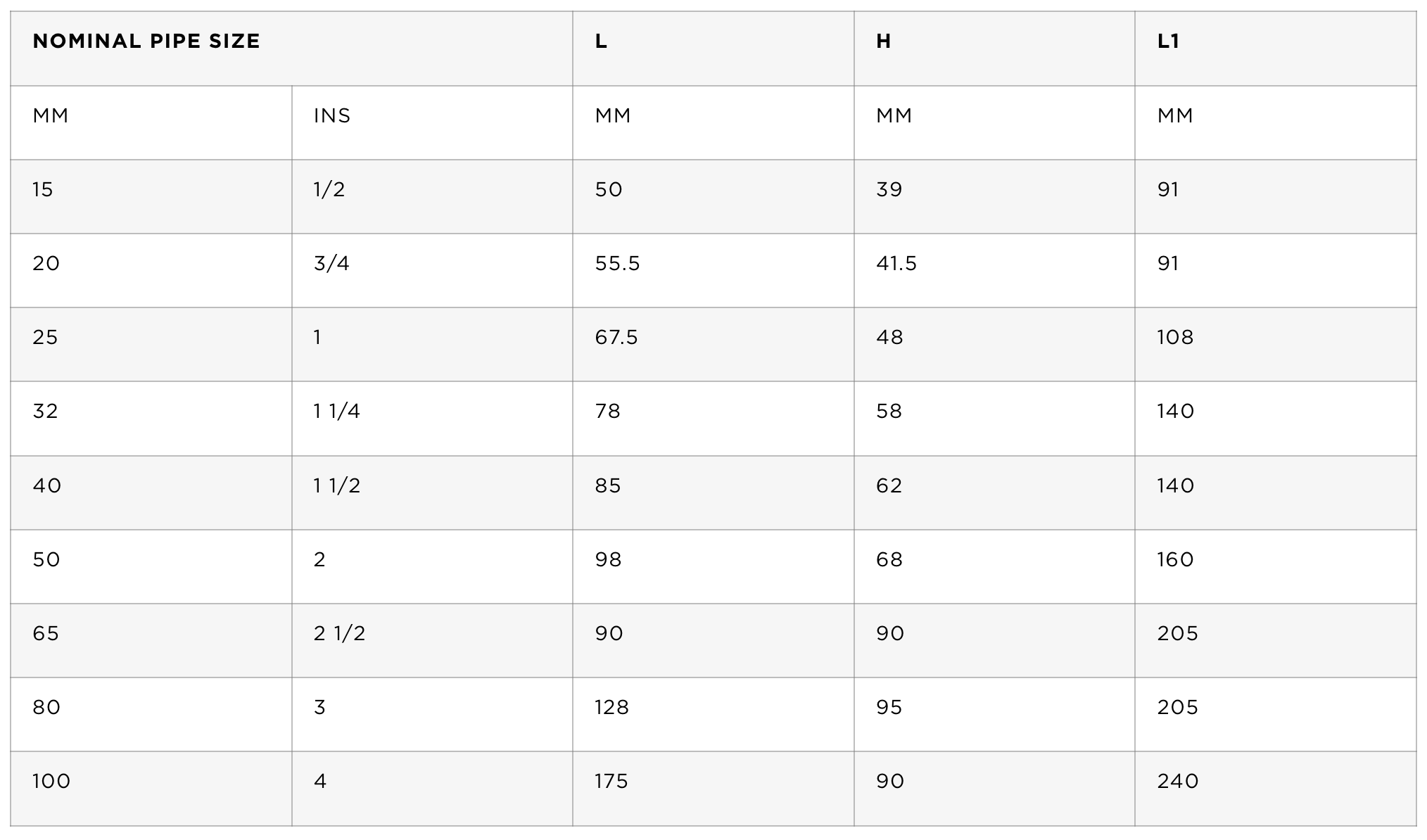

NOMINAL PIPE SIZE | OVERALL LENGTH (L) | HEIGHT (H) | LENGTH (L1) | |
---|---|---|---|---|
MM | IN | MM | MM | MM |
15 | 1/2 | 50 | 39 | 91 |
20 | 3/4 | 55.5 | 41.5 | 91 |
25 | 1 | 67.5 | 48 | 108 |
32 | 1 1/4 | 78 | 58 | 140 |
40 | 1 1/2 | 85 | 62 | 140 |
50 | 2 | 98 | 68 | 160 |
65 | 2 1/2 | 90 | 90 | 205 |
80 | 3 | 128 | 95 | 205 |
100 | 4 | 175 | 90 | 240 |

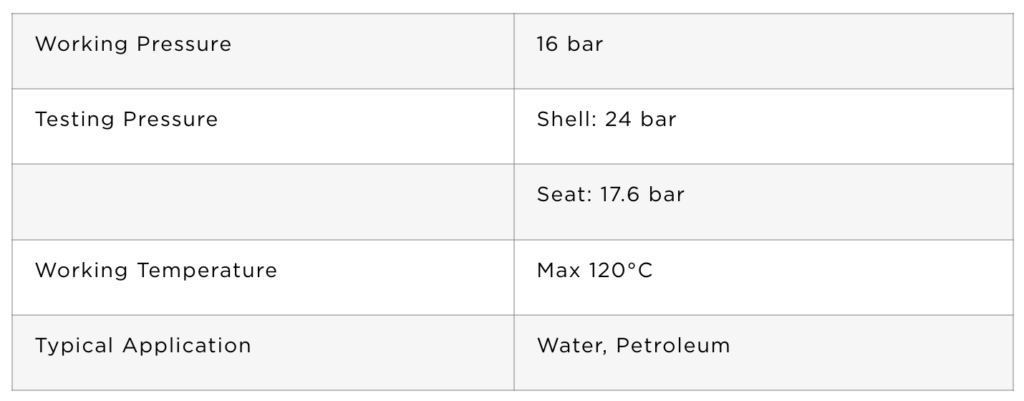

Working Pressure: 16 bar
Testing Pressure: Shell: 24 bar | Seat: 17.6 bar
Working Temperature: Max 120°C
Typical Application: Water, Petroleum
