'MIHA' MBGV01

Brass NRS Gate Valve

Size
15 – 100 mm


Pressure Rating
PN16 / PN20


Type
Non-Rising Stem

Ask For A Quote
Quantity:
Certified by

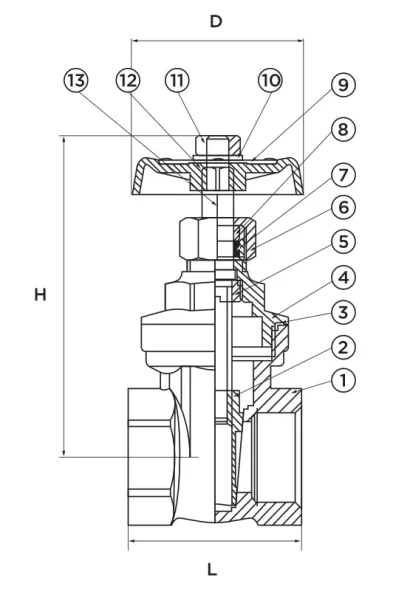

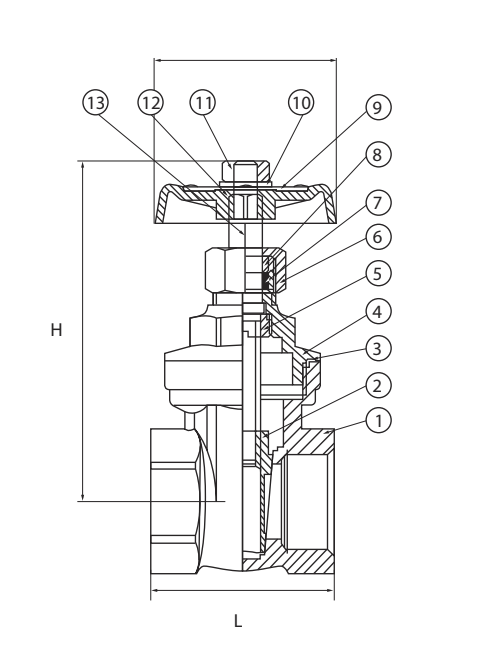

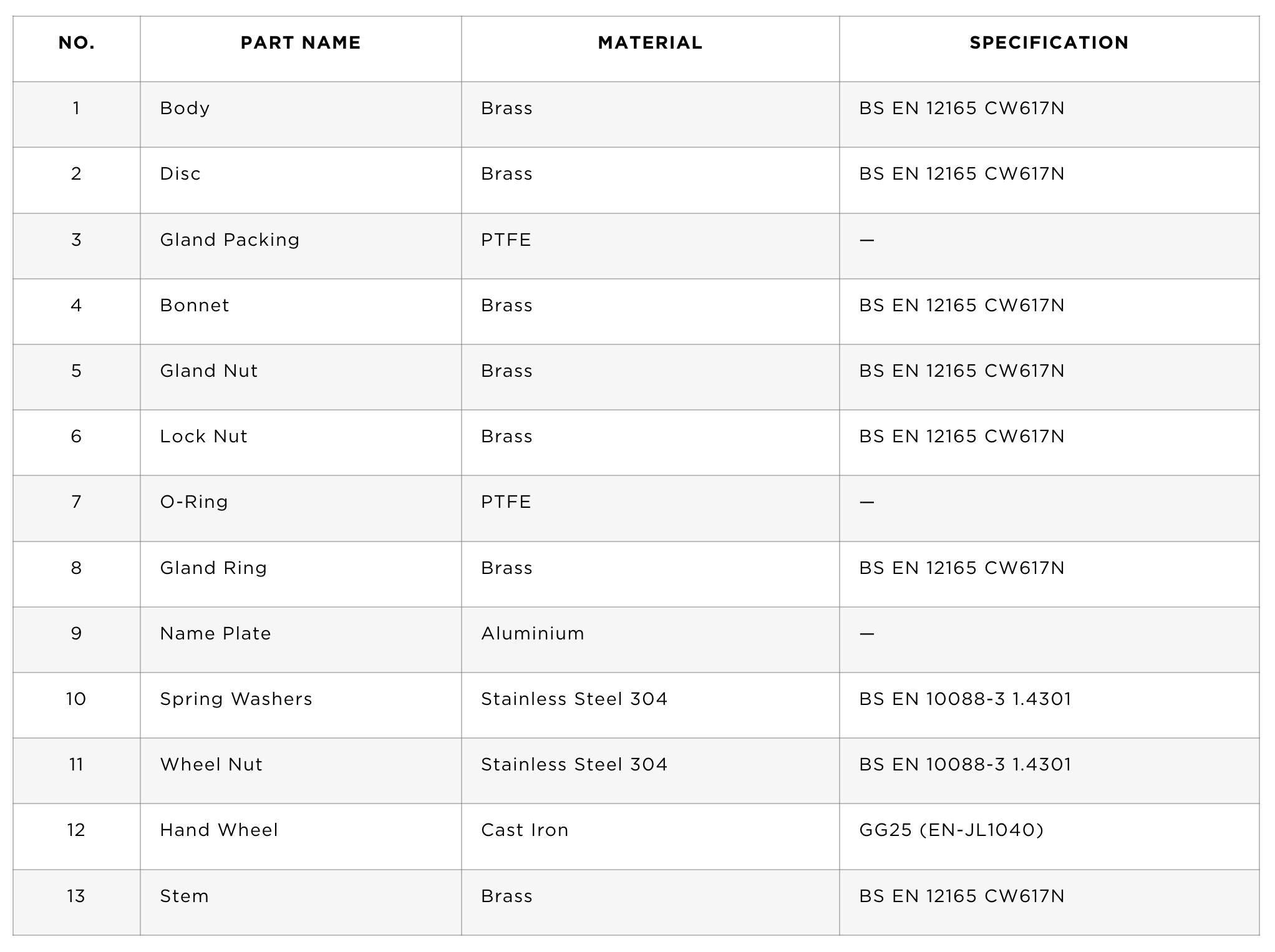

NO.PART NAMEMATERIALSPECIFICATION
1BodyBrassBS EN 12165 CW617N
2DiscBrassBS EN 12165 CW617N
3Gland PackingPTFE
4BonnetBrassBS EN 12165 CW617N
5Gland NutBrassBS EN 12165 CW617N
6Lock NutBrassBS EN 12165 CW617N
7O-RingPTFE
8Gland RingBrassBS EN 12165 CW617N
9Name PlateAluminium
10Spring WashersStainless Steel 304BS EN 10088-3 1.4301
11Wheel NutStainless Steel 304BS EN 10088-3 1.4301
12Hand WheelCast IronGG25 (EN-JL1040)
13StemBrassBS EN 12165 CW617N
  • Non-rising stem, screwed bonnet, solid wedge.
  • Hydrostatically tested to BE EN 12266-1:2012
  • Manufactured in accordance with BS  EN 12288:2010
  • Threaded to BS EN 10226-2 (BSP)
  • Applicable for HVAC System, Fire Protection System, Plumbing / Sanitary System

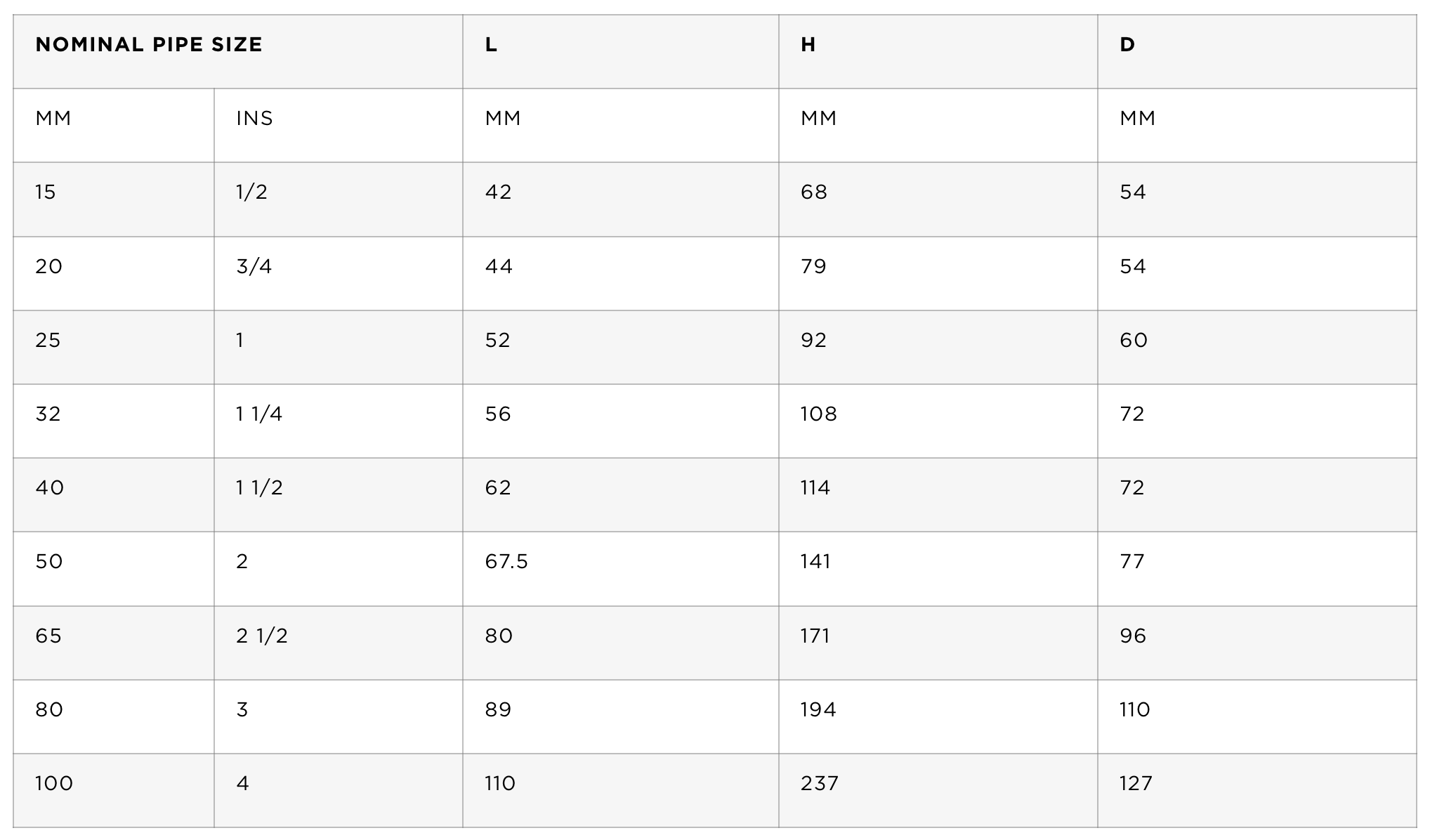

NOMINAL PIPE SIZEOVERALL LENGTH (L)HEIGHT (H)D
MMINMMMMMM
151/2426854
203/4447954
251529260
321 1/45610872
401 1/26211472
50267.514177
652 1/28017196
80389194110
1004110237127

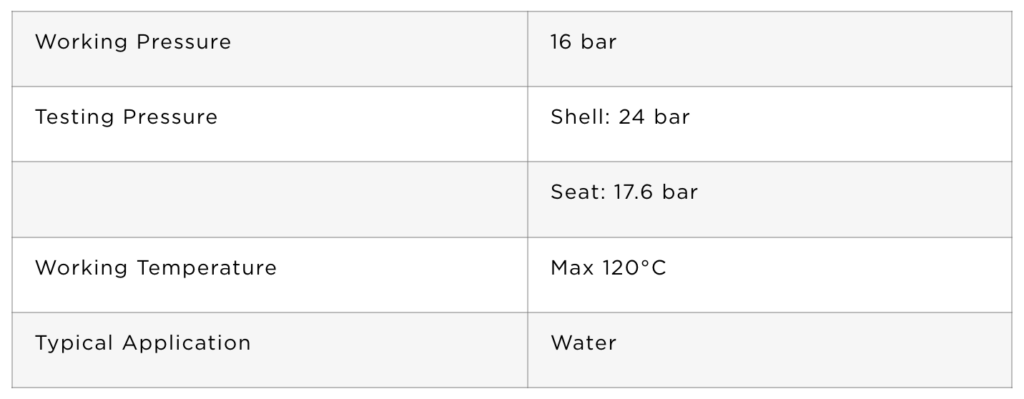

Working Pressure: 16 bar

Testing Pressure:  Shell: 24 bar |  Seat: 17.6 bar

Working Temperature: Max 120°C

Typical Application: Water
