Size
15 – 50 mm
Pressure Rating
PN16
Type
2 – Piece Body

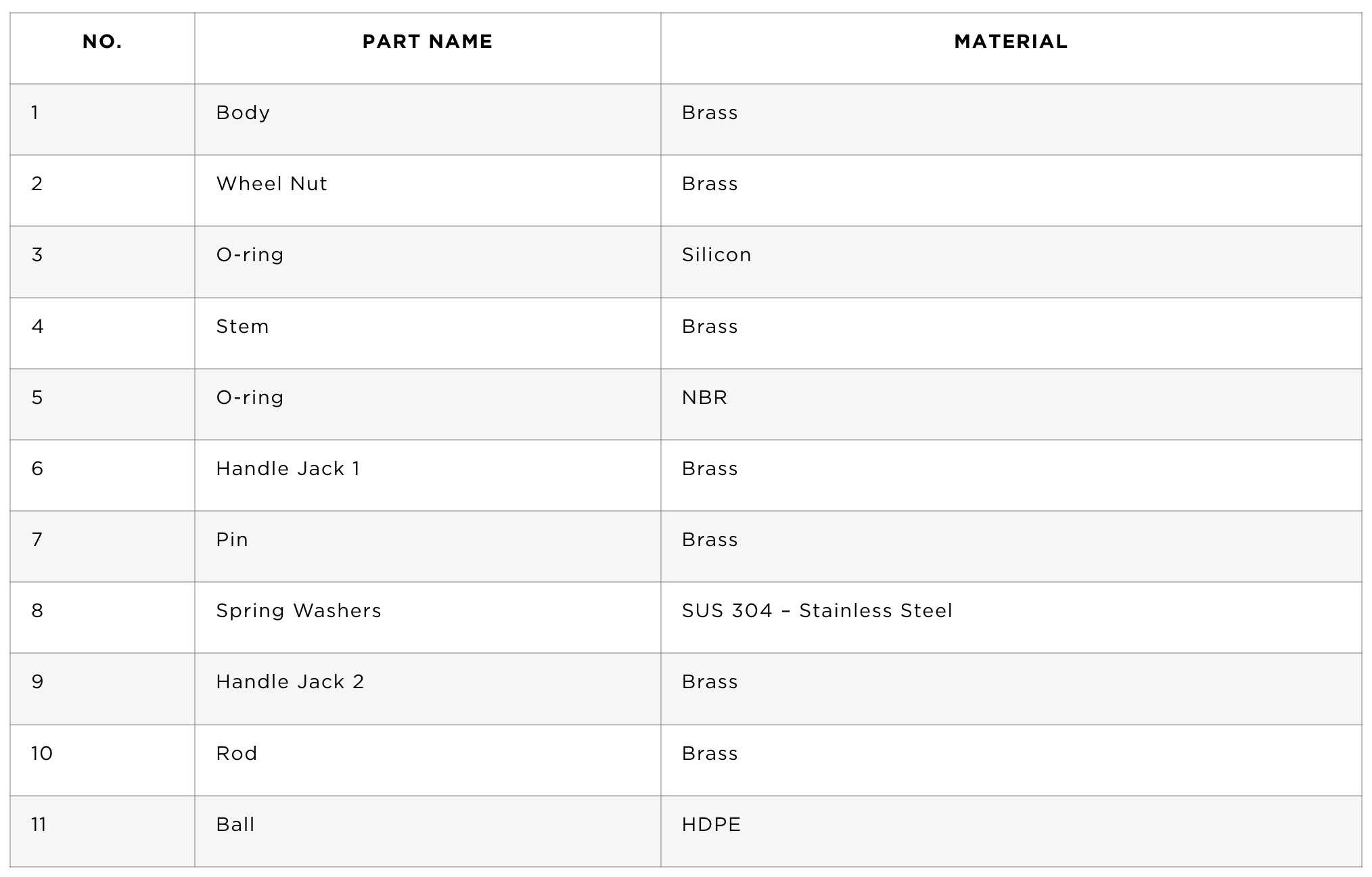

| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Brass |
| 2 | Wheel Nut | Brass |
| 3 | O-Ring | Silicon |
| 4 | Stem | Brass |
| 5 | O-Ring | NBR |
| 6 | Handle Jack 1 | Brass |
| 7 | Pin | Brass |
| 8 | Spring Washers | SUS 304 - Stainless Steel |
| 9 | Handle Jack 2 | Brass |
| 10 | Rod | Brass |
| 11 | Ball | HDPE |
Piston type, float operated
Brass body and internal components, HDPE float ball
Suitable for cold water service
Tested and certified in accordance with JKR 20200-0178-04
Manufactured in accordance with BS 1212-3:2016
Threaded to BS EN 10226-2 (BSP)
Applicable for Water Supply System, Plumbing / Sanitary System, Storage Tank Installation

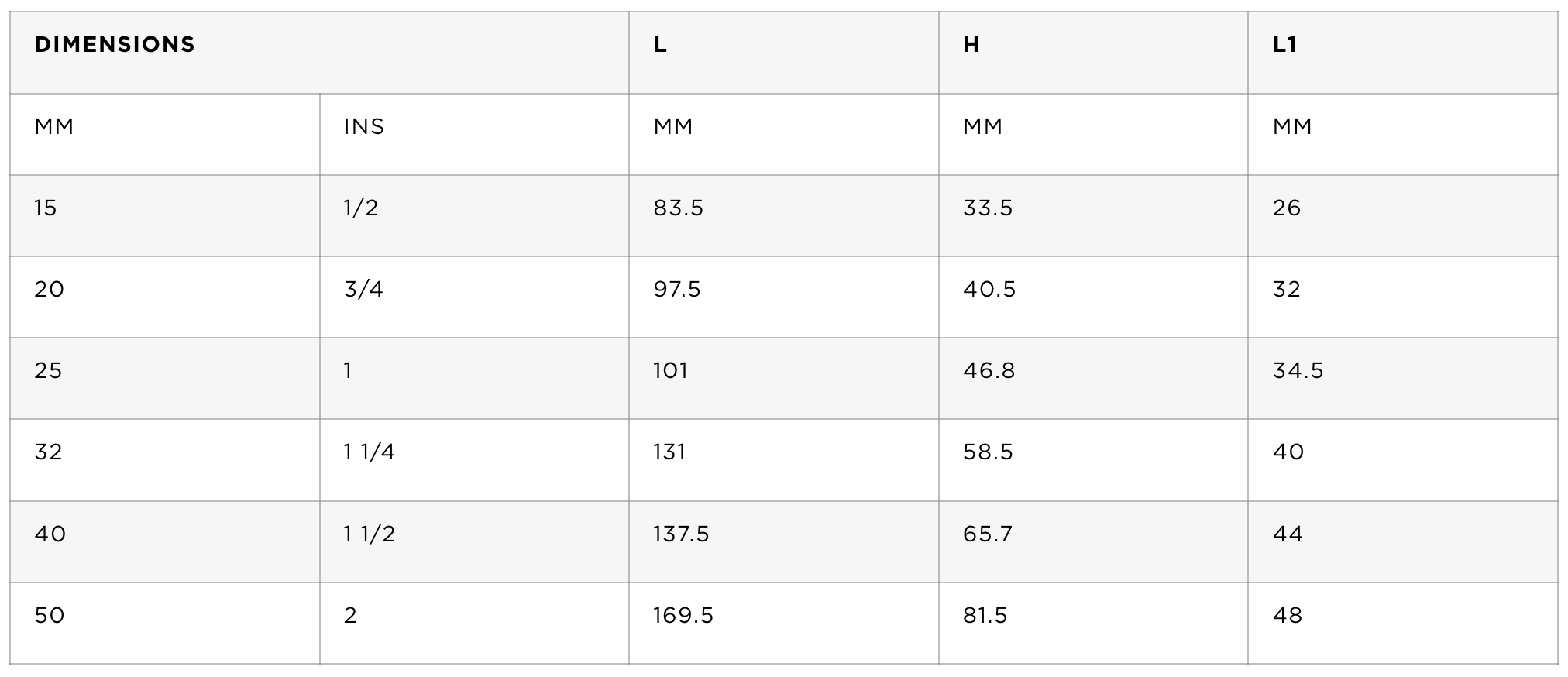

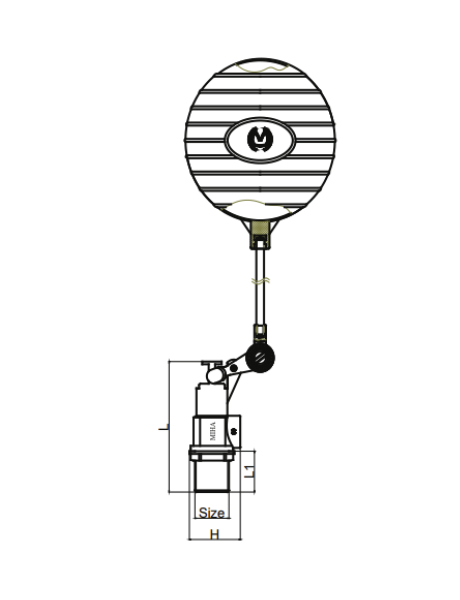

| NOMINAL PIPE SIZE | L | H | L1 | |
|---|---|---|---|---|
| MM | IN | MM | MM | MM |
| 15 | 1/2 | 83.5 | 33.5 | 26 |
| 20 | 3/4 | 97.5 | 40.5 | 32 |
| 25 | 1 | 101 | 46.8 | 34.5 |
| 32 | 1 1/4 | 131 | 58.5 | 40 |
| 40 | 1 1/2 | 137.5 | 65.7 | 44 |
| 50 | 2 | 169.5 | 81.5 | 48 |

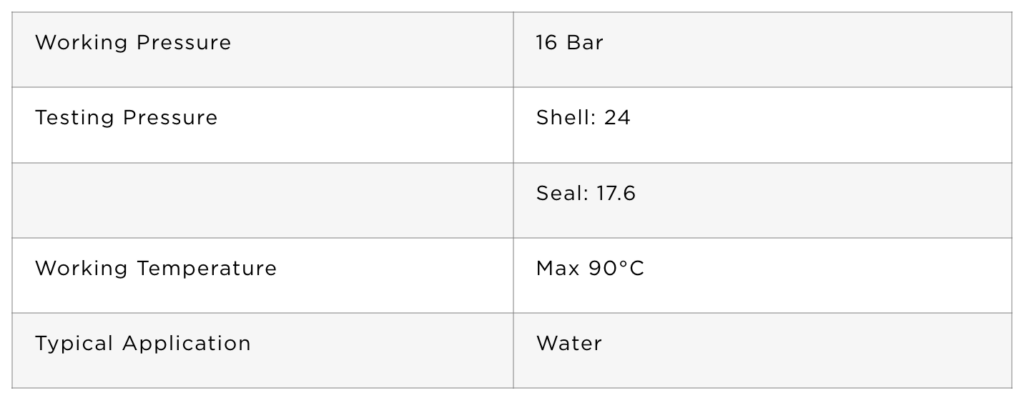

Working Pressure: 16 bar
Testing Pressure: Shell: 24 bar | Seat: 17.6 bar
Working Temperature: Max 90°C
Typical Application: Water
