'MIHA' MBSC01

Brass Stop Cock

Size
15 – 25 mm

Pressure Rating
PN16

Ask For A Quote

Certified by

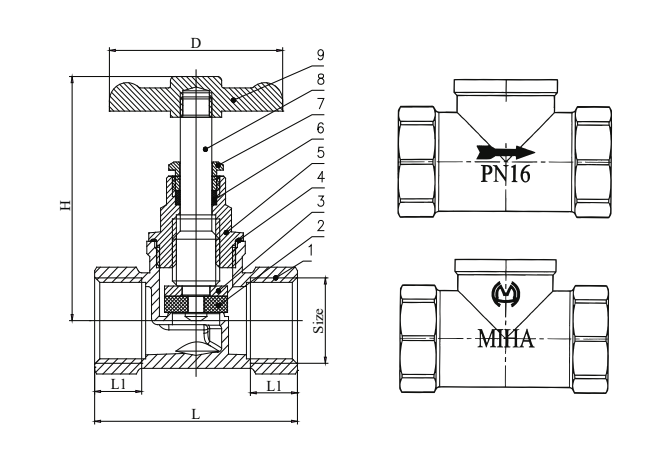

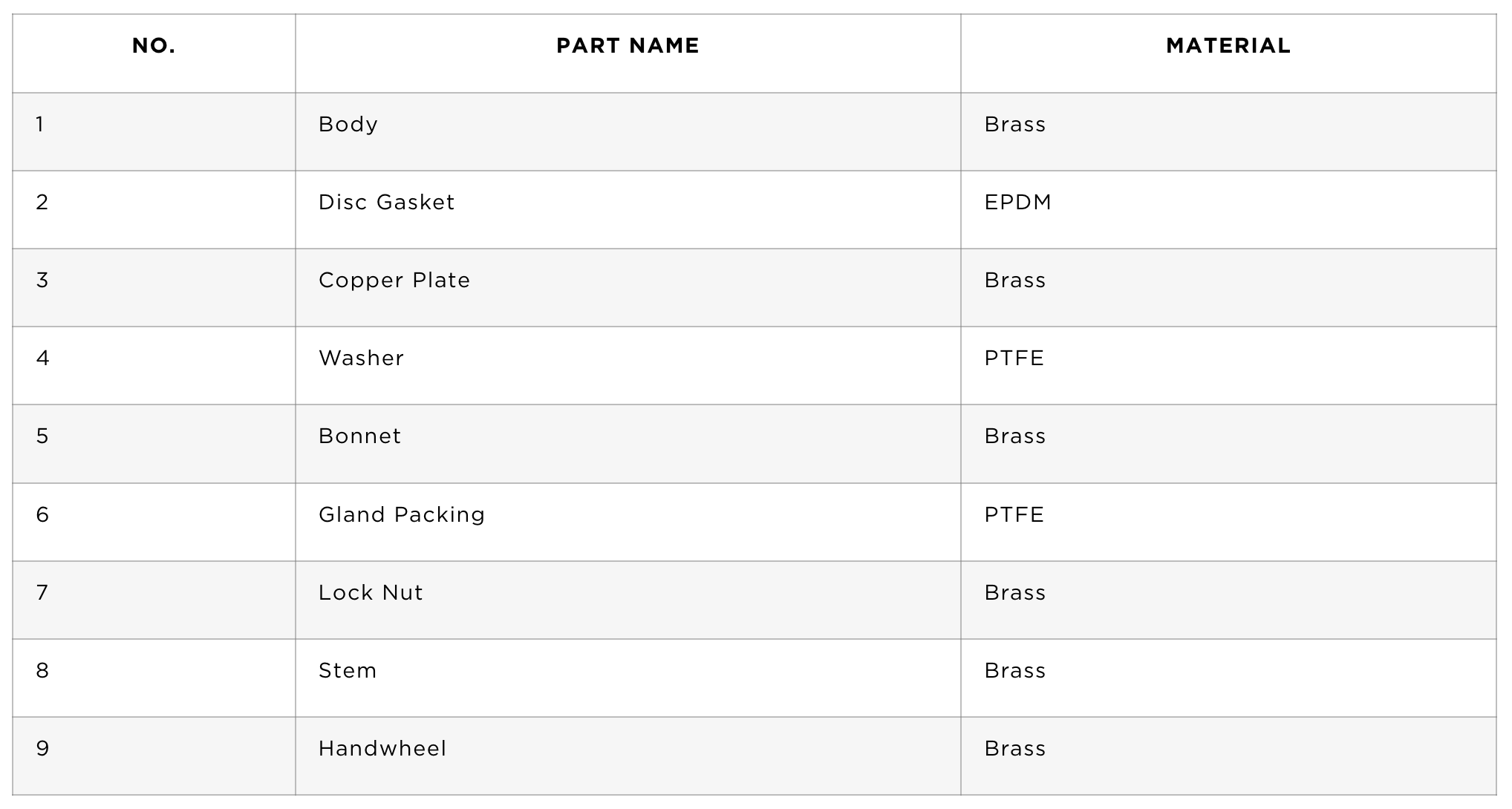

NO.	PART NAME	MATERIAL
1	Body	Brass
2	Disc Gasket	EPDM
3	Copper Plate	Brass
4	Washer	PTFE
5	Bonnet	Brass
6	Gland Packing	PTFE
7	Lock Nut	Brass
8	Stem	Brass
9	Handwheel	Brass

Screwed bonnet, with brass level handle
Hydrostatically tested to BS EN 12266-1:2012
Manufactured in accordance with BS EN 1213:2000
Threaded To BS EN 10226-2
Applicable for HVAC System, Fire Protection System, Plumbing / Sanitary System

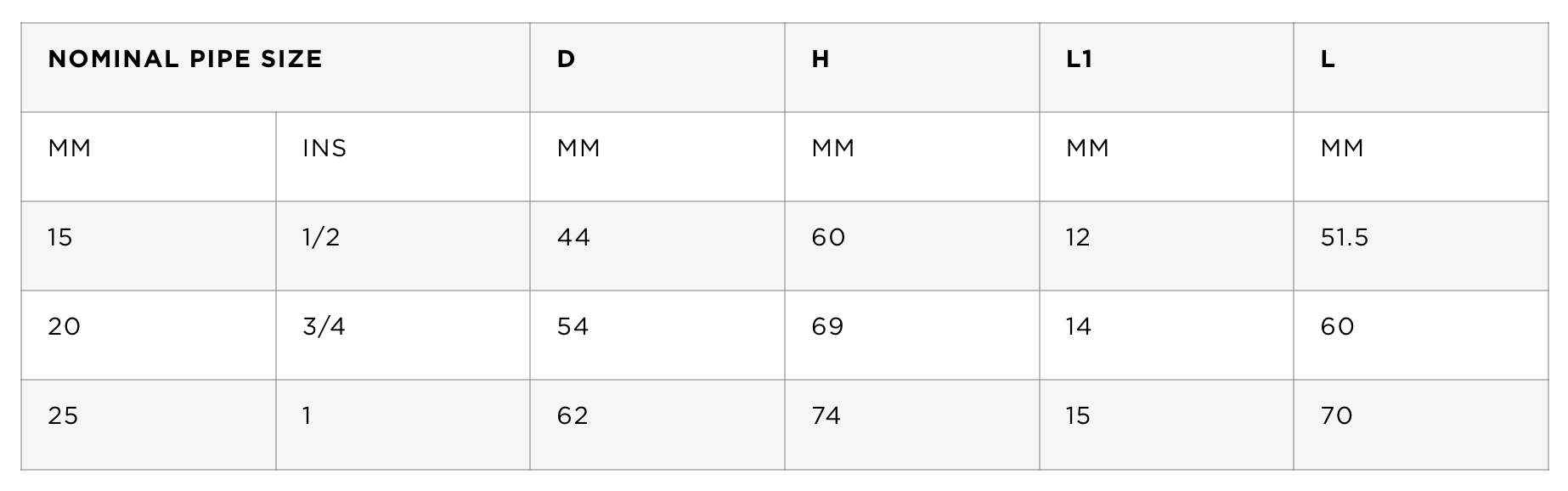

NOMINAL PIPE SIZE		D	H	L1	L
MM	IN	MM	MM	MM	MM
15	1/2	44	60	12	51.5
20	3/4	54	69	14	60
25	1	62	74	15	70

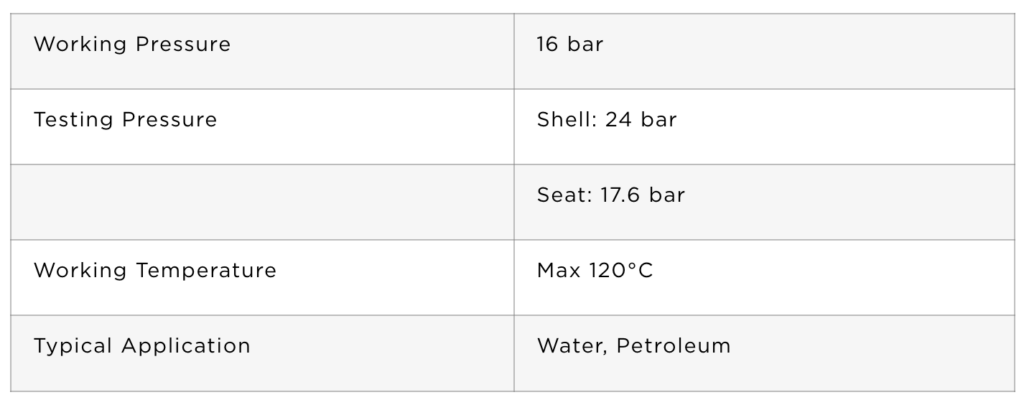

Working Pressure: 16 bar

Testing Pressure: Shell: 24 bar | Seat: 17.6 bar

Working Temperature: Max 120°C

Typical Application: Water, Petroleum
