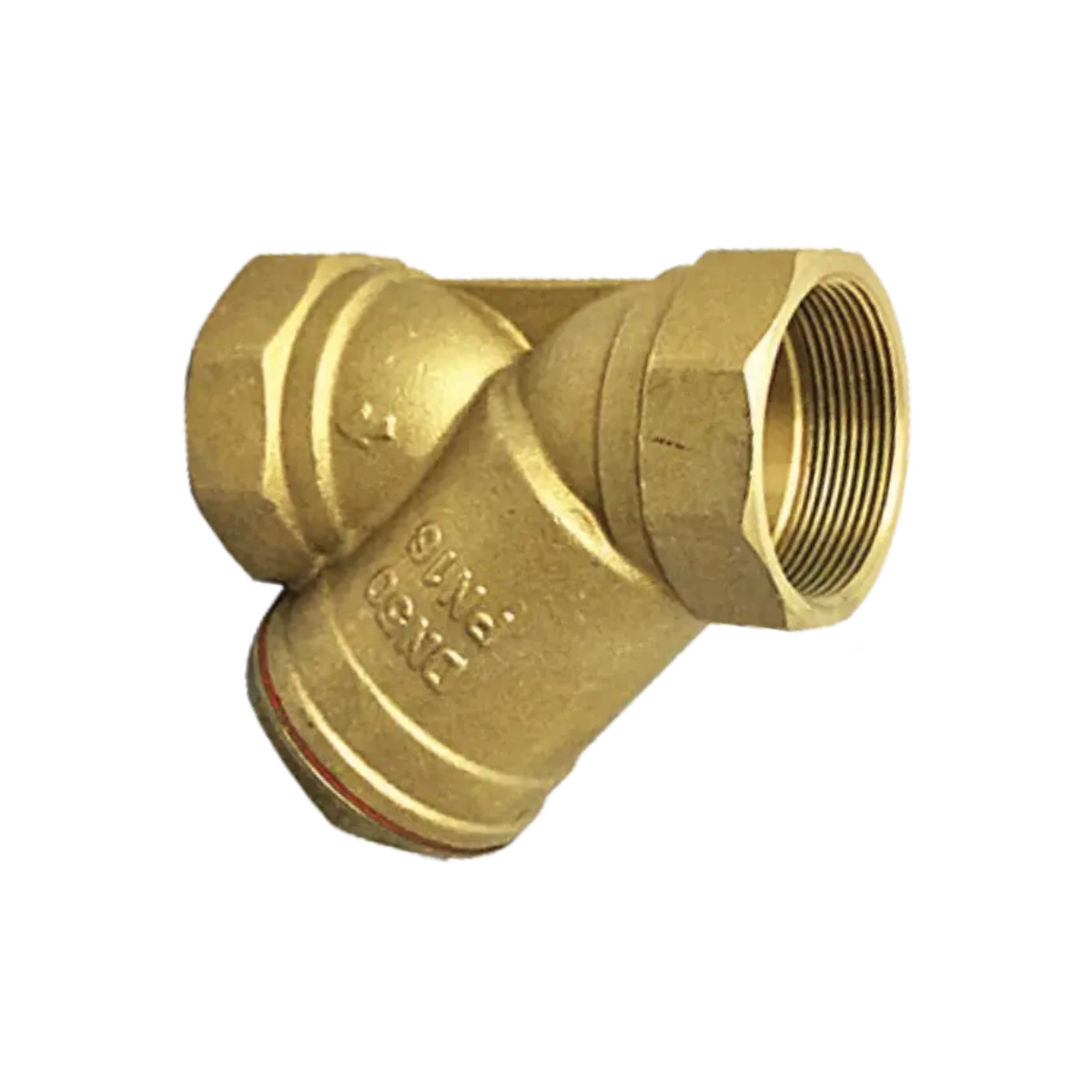

'MIHA' MYST01

Brass Y-Pattern Strainer

Size
15 – 50 mm


Pressure Rating
PN16


Type
Stainless steel mesh

Ask For A Quote
Quantity:
Certified by

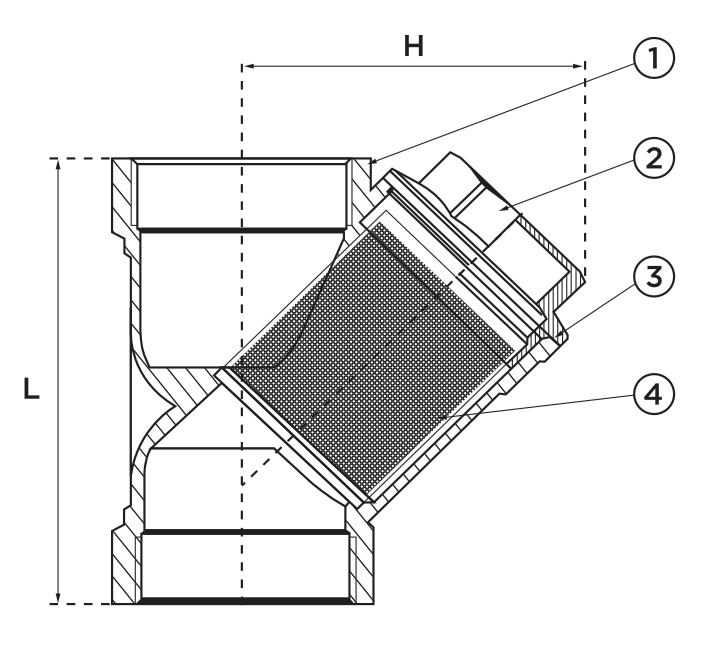

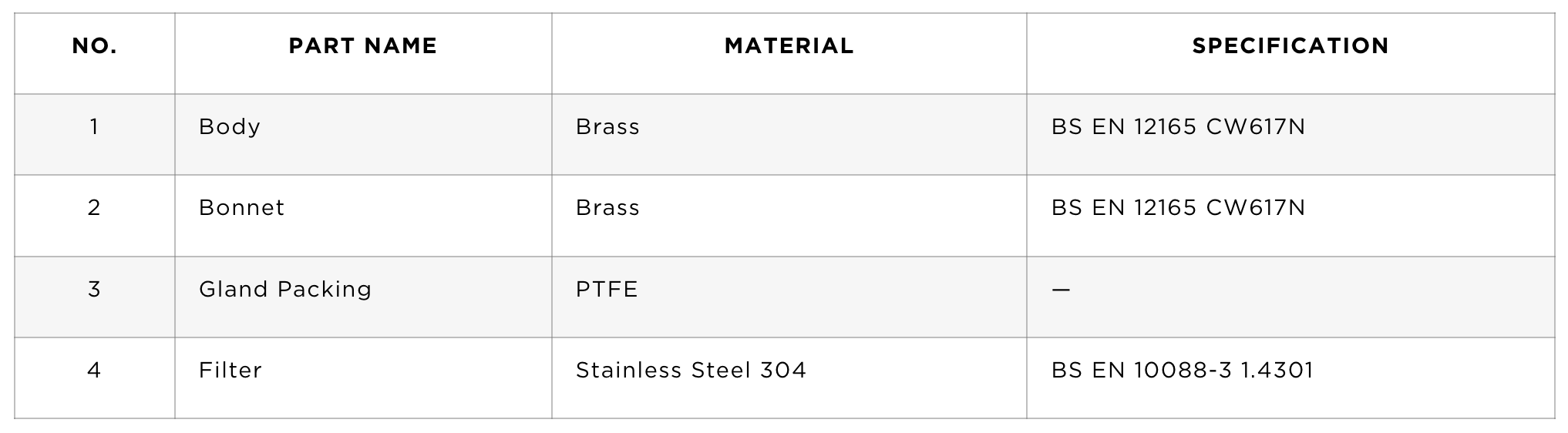

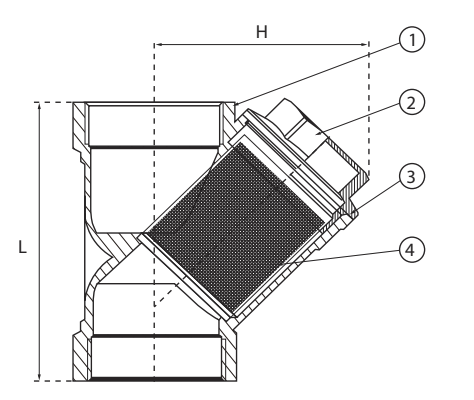

NO.PART NAMEMATERIALSPECIFICATION
1BodyBrassBS EN 12165 CW617N
2BonnetBrassBS EN 12165 CW617N
3Gland PackingPTFE
4FilterStainless Steel 304BS EN 10088-3 1.4301
  • Y-Pattern body, screwed cover, stainless steel screen
  • Hydrostatically tested to BS EN 12266-1:2012
  • Manufactured in accordance with BS  5154:1991
  • Threaded to BS EN 10226-2 (BSP)
  • Applicable for HVAC System, Fire Protection System, Plumbing / Sanitary System

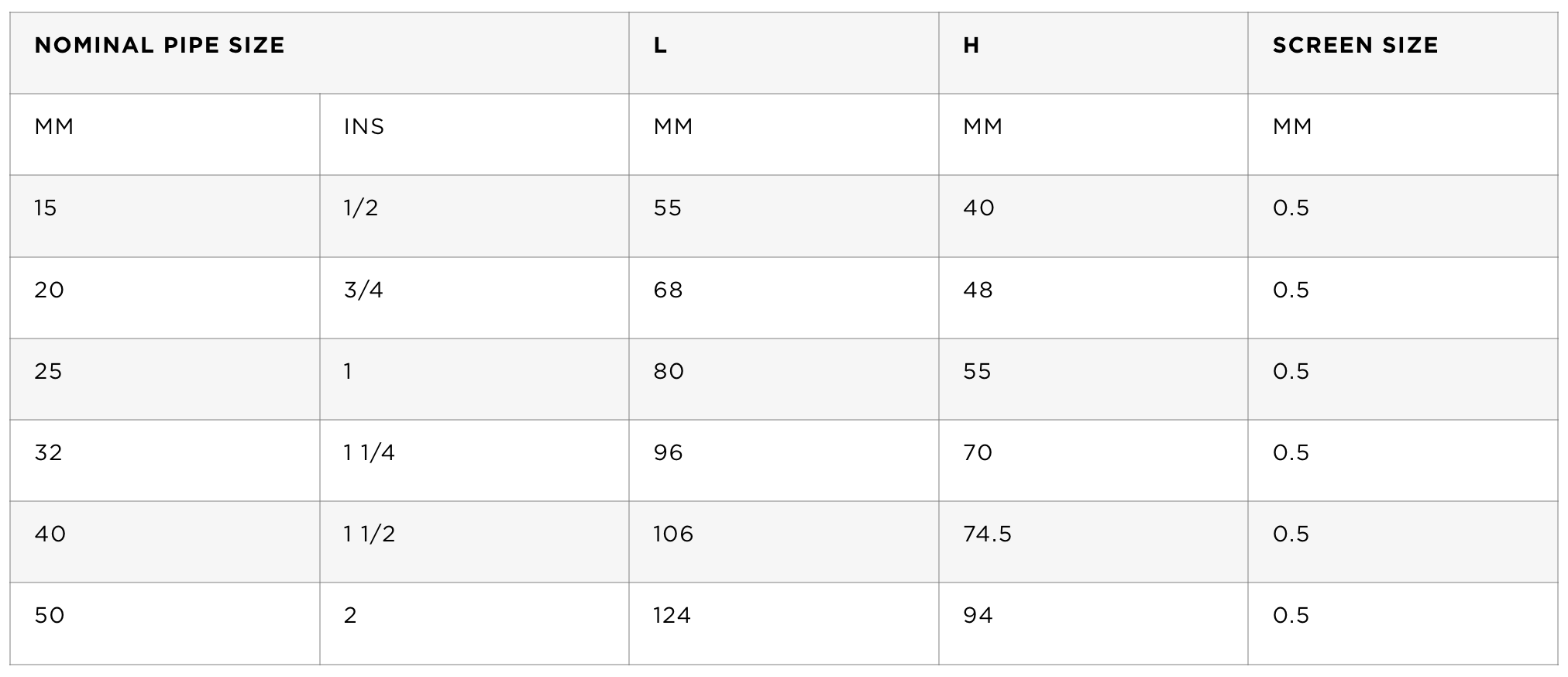

NOMINAL PIPE SIZEOVERALL LENGTH (L)HEIGHT (H)SCREEN SIZE
MMINMMMMMM
151/255400.5
203/468480.5
25180550.5
321 1/496700.5
401 1/210674.50.5
502124940.5

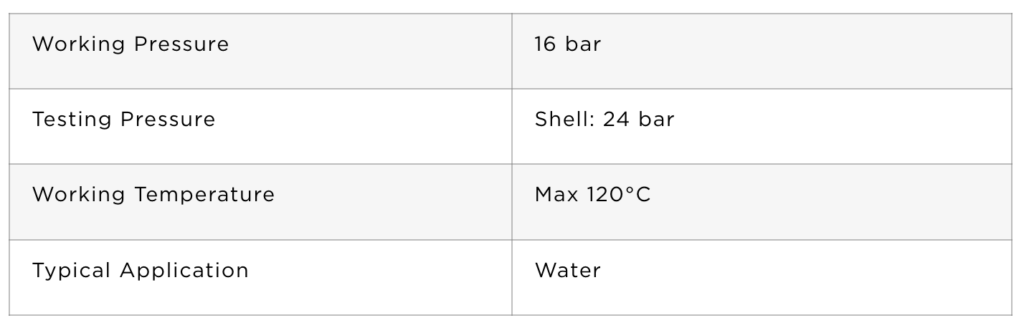

Working Pressure: 16 bar

Testing Pressure:  Shell: 24 bar

Working Temperature: Max 120°C

Typical Application: Water
