'AFA' SRV-S

Bronze Safety Relief Valve W/ Sealing

Size
25 mm

Pressure Rating
PN20

Connection
Screwed-End

Ask For A Quote

Certified by

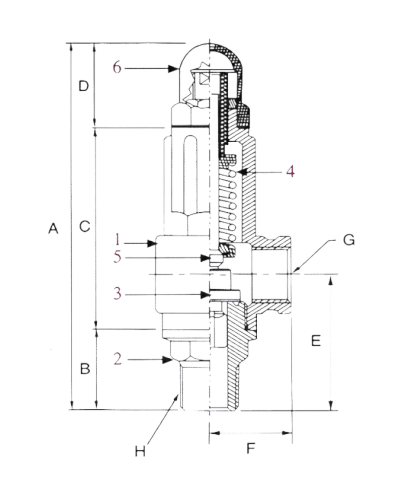

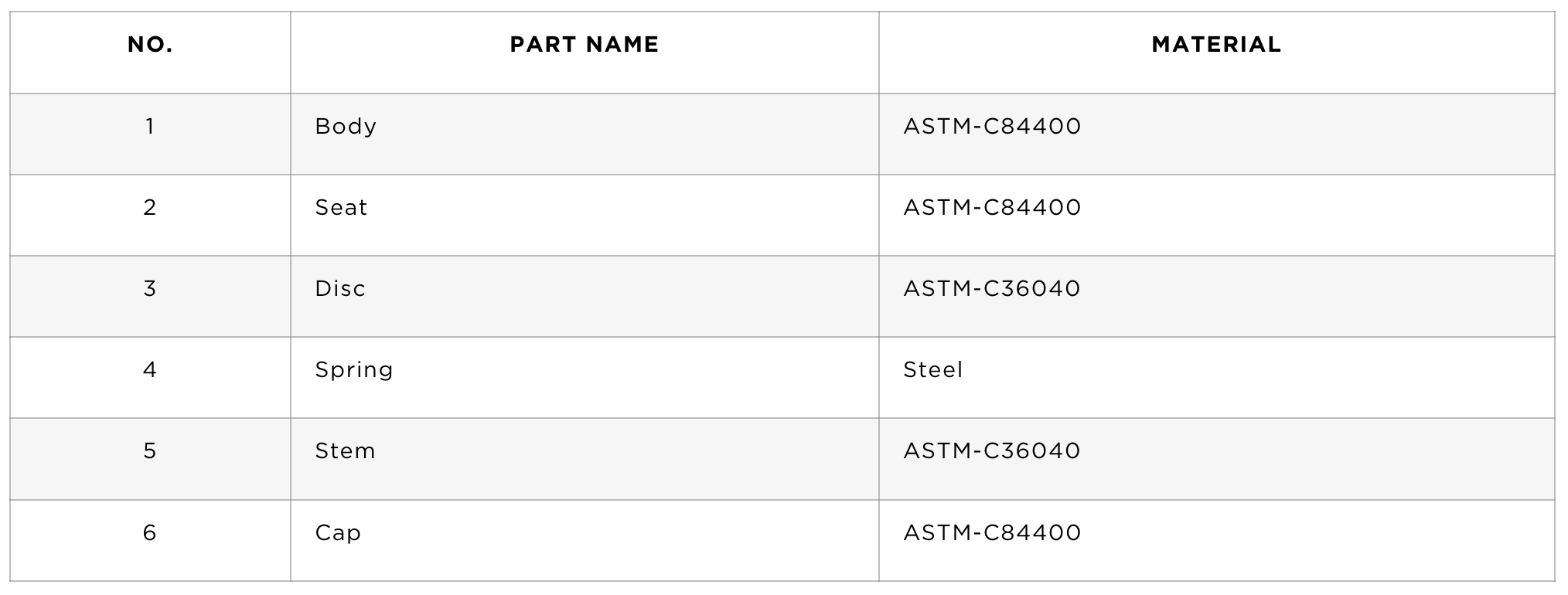

NO.	PART NAME	MATERIAL
1	Body	ASTM-C84400
1	Body	ASTM-C84400
2	Seat	ASTM-C84400



3	Disc	ASTM-C36040
4	Spring	Steel
5	Stem	ASTM-C36040
6	Cap	ASTM-C84400

Screwed bonnet, with brass level handle
Hydrostatically tested to BS EN 12266-1:2012
Manufactured in accordance with BS EN 1213:2000
Threaded To BS EN 10226-2
Applicable for HVAC System, Fire Protection System,
Plumbing / Sanitary System

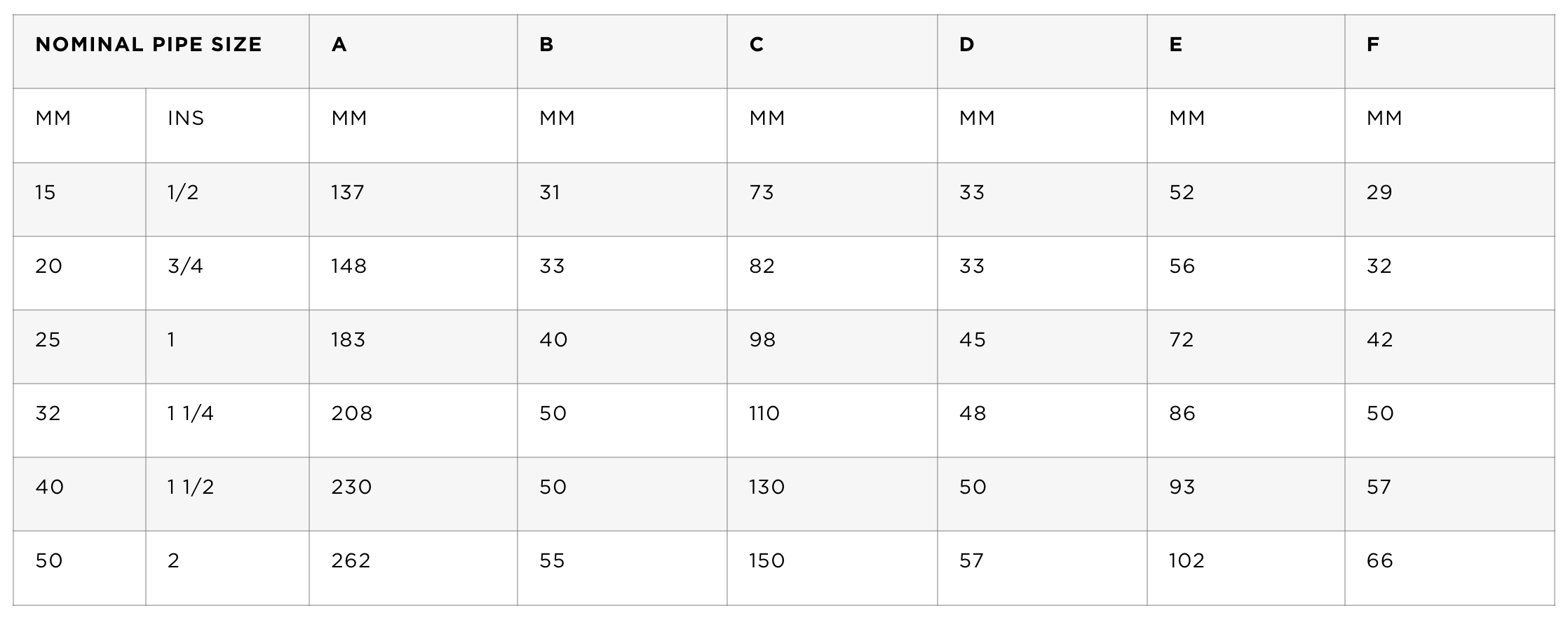

NOMINAL PIPE SIZE		A	B	C	D	E	F
MM	IN	MM	MM	MM	MM	MM	MM
25	1	183	40	98	45	72	40

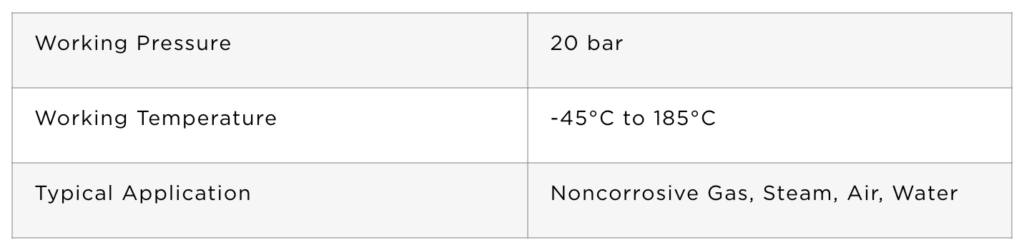

Working Pressure: 20 Bar

Working Temperature: -45°C – 185°C

Typical Application: Noncorrosive Gas, Steam, Air, Water
