Size
100 – 1600 mm
Pressure Rating
16 Bar (<DN300) | 10 Bar (>DN350)
Type
Double Eccentric

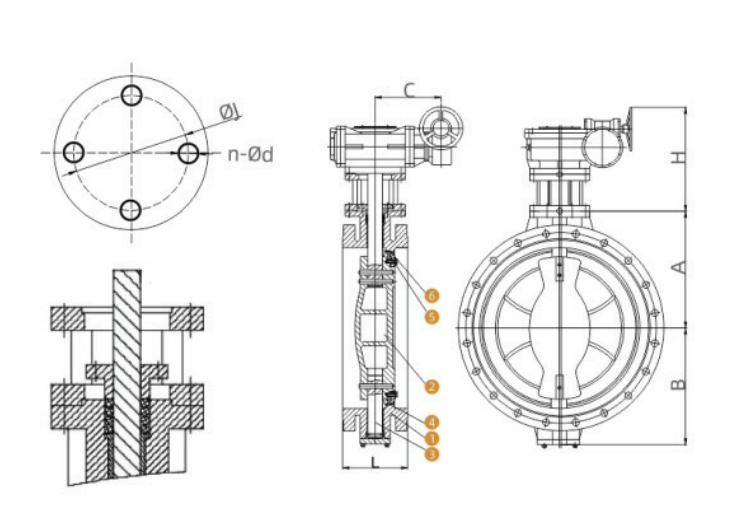

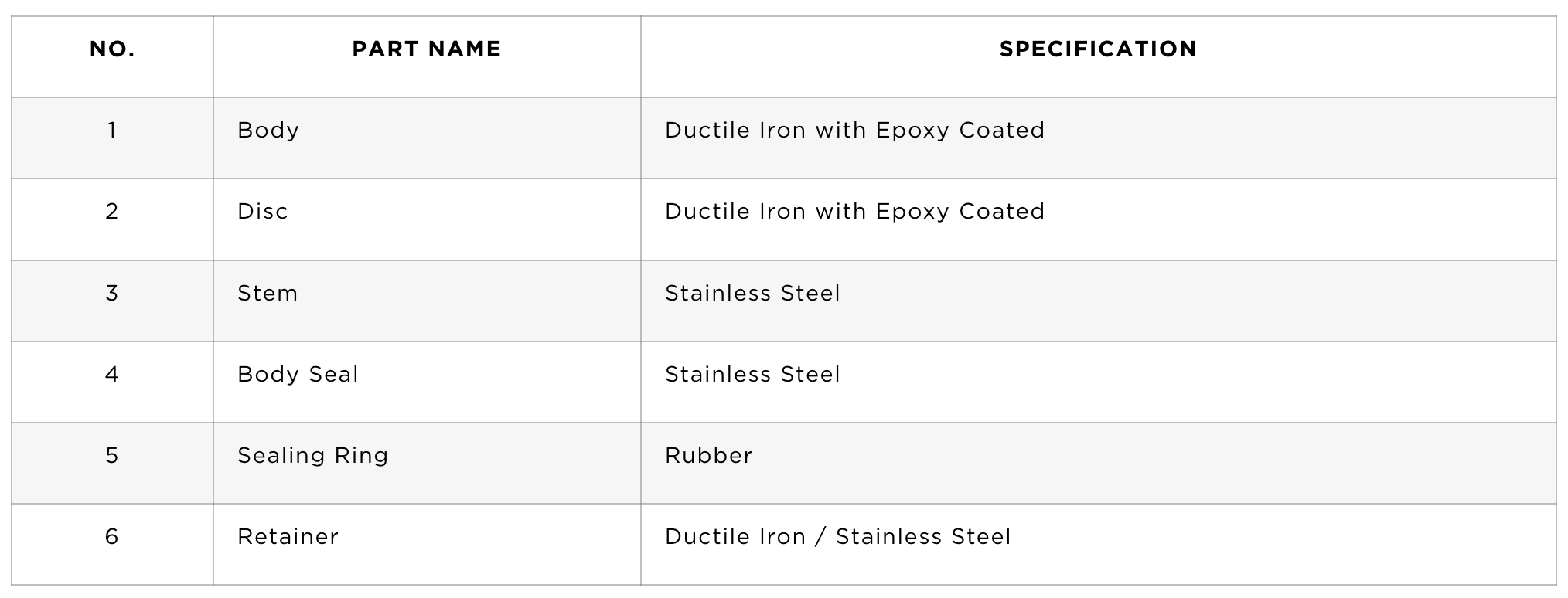

| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Ductile Iron with Epoxy Coated |
| 2 | Disc | Ductile Iron with Epoxy Coated |
| 3 | Stem | Stainless Steel |
| 4 | Body Seal | Stainless Steel |
| 5 | Sealing Ring | Rubber |
| 6 | Retainer | Ductile Iron / Stainless Steel |
Engineered for performance and durability, the AFA Double
Eccentric Butterfly Valve delivers the following key advantages:

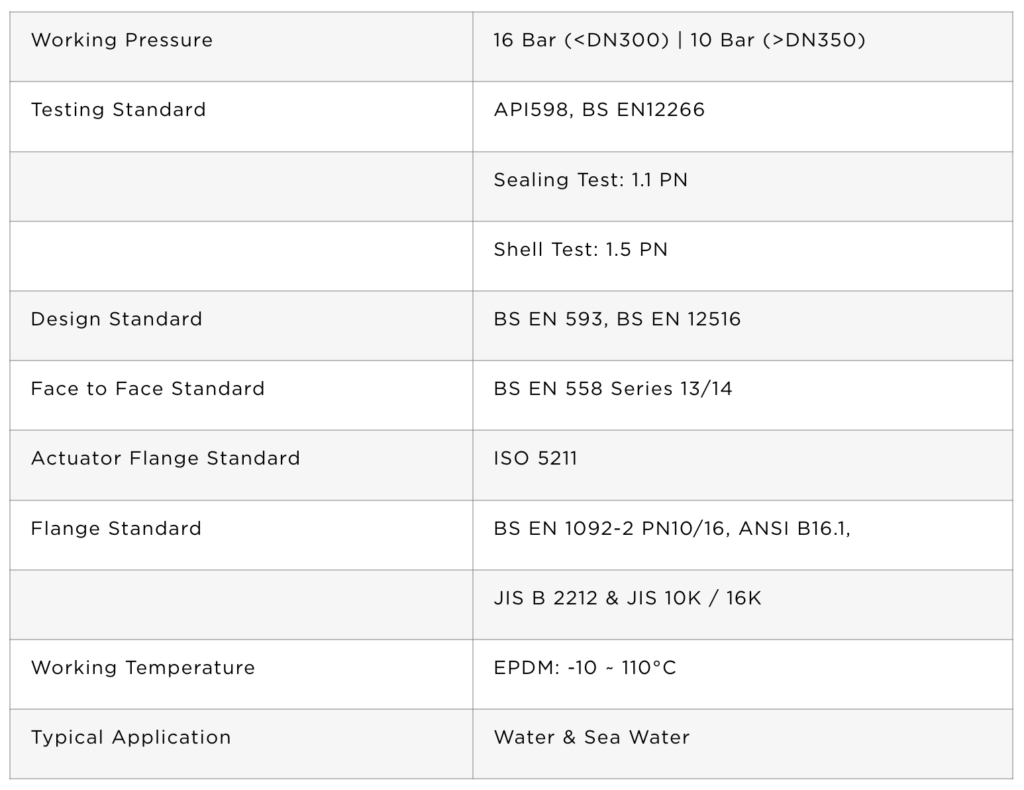

Working Pressure: 16 Bar (<DN300) | 10 Bar (>DN350)
Testing Standard: API598, BS EN12266 Sealing Test: 1.1 PN
Shell Test: 1.5 PN
Design Standard: BS EN 593, BS EN 12516
Face to Face Standard: BS EN 558 Series 13/14
Actuator Flange Standard: ISO 5211
Flange Standard: BS EN1092-2 PN10/16, ANSI B16.1,
JIS B 2212 & JIS 10K / 16K
Working Temperature: EPDM: -10 – 110°C
Typical Application: Drinking Water, Raw Water, Sewage Water,
Sea Water, Waste Water, Industrial Water
