Size
50 – 300 mm
Pressure Rating
PN20
Type
Resilient seat
Flanged Connection

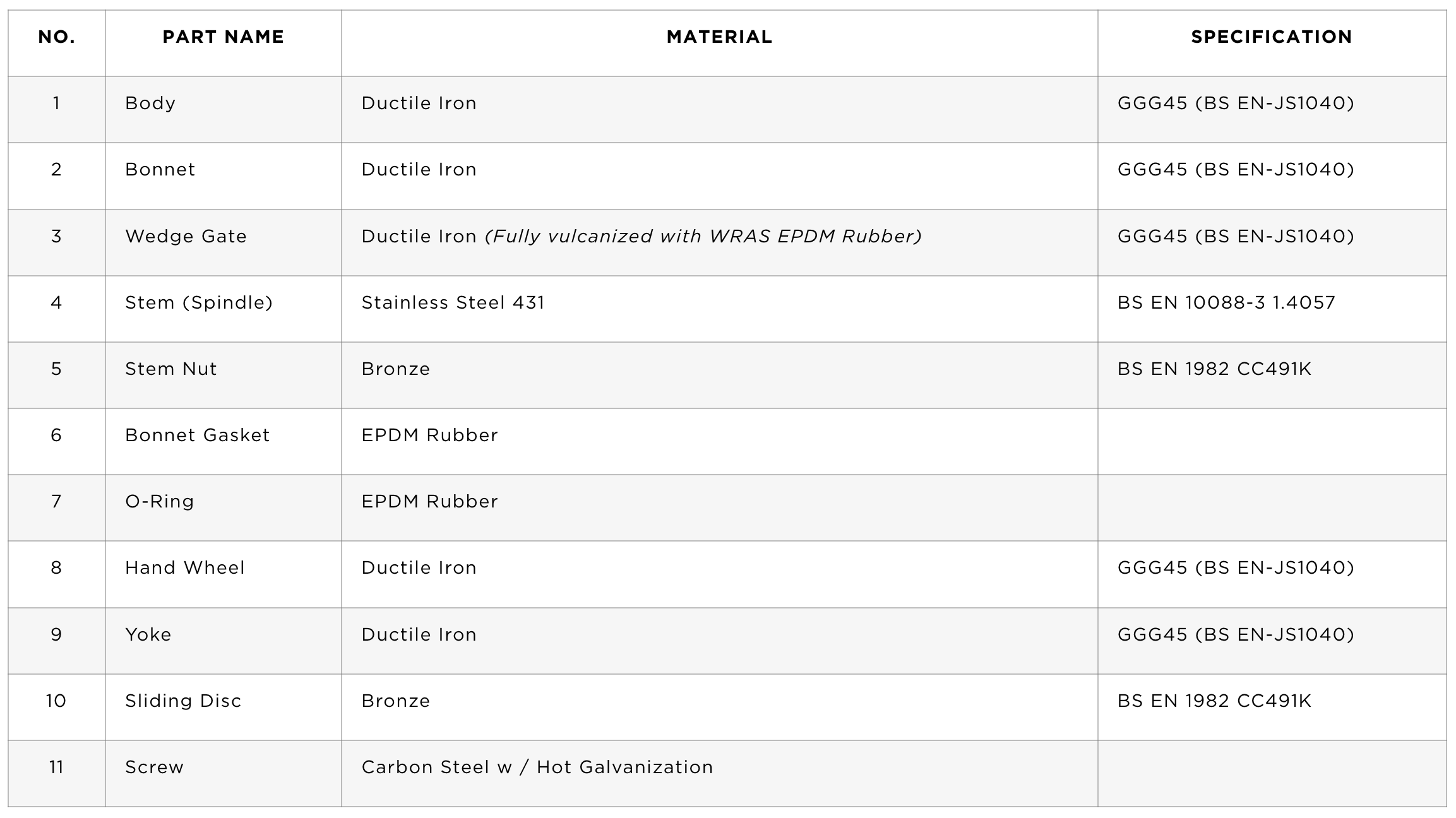

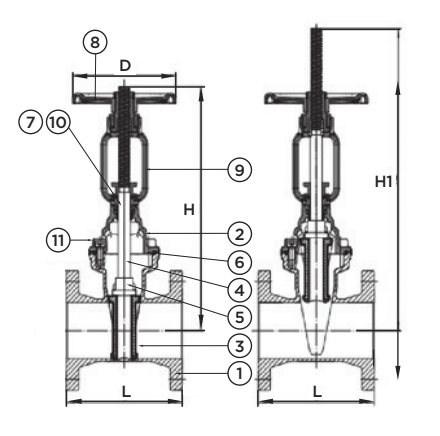

| NO. | PART NAME | MATERIAL | SPECIFICATION |
|---|---|---|---|
| 1 | Body | Ductile Iron | GGG45 (EN-JS1040) |
| 2 | Bonnet | Ductile Iron | GGG45 (EN-JS1040) |
| 3 | Wedge Gate | Ductile Iron (fully vulcanised with WRAS EPDM rubber) | GGG45 (EN-JS1040) |
| 4 | Stem (Spindle) | Stainless Steel 431 | BS EN 10088-3 1.4057 |
| 5 | Stem Nut | Bronze | BS EN 1982 CC491K |
| 6 | Bonnet Gasket | EPDM Rubber | |
| 7 | O-Ring | EPDM Rubber | |
| 8 | Hand Wheel | Ductile Iron | GGG45 (EN-JS1040) |
| 9 | Yoke | Ductile Iron | GGG45 (EN-JS1040) |
| 10 | Sliding Disc | Bronze | BS EN 1982 CC491K |
| 11 | Screw | Carbon Steel w / Hot Galvanization |

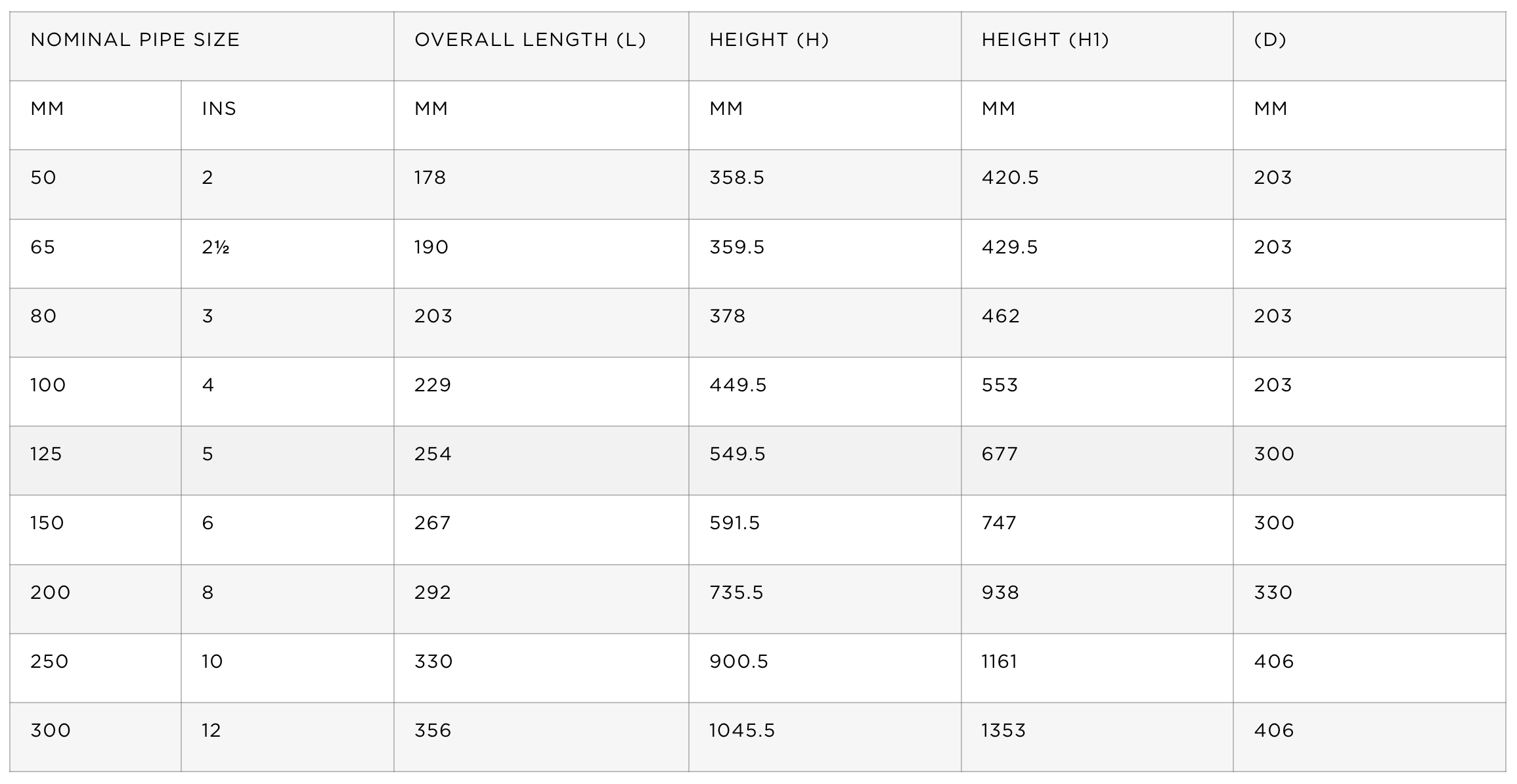

| NOMINAL PIPE SIZE | OVERALL LENGTH (L) | HEIGHT (H) | HEIGHT (H1) | D | |
|---|---|---|---|---|---|
| MM | IN | MM | MM | MM | MM |
| 50 | 2 | 178 | 358.5 | 420.5 | 203 |
| 65 | 2 1/2 | 190 | 359.5 | 429.5 | 203 |
| 80 | 3 | 203 | 378 | 462 | 203 |
| 100 | 4 | 229 | 449.5 | 553 | 203 |
| 125 | 5 | 254 | 549.5 | 677 | 300 |
| 150 | 6 | 267 | 591.5 | 747 | 300 |
| 200 | 8 | 292 | 735.5 | 938 | 330 |
| 250 | 10 | 330 | 900.5 | 1161 | 406 |
| 300 | 12 | 356 | 1045.5 | 1353 | 406 |

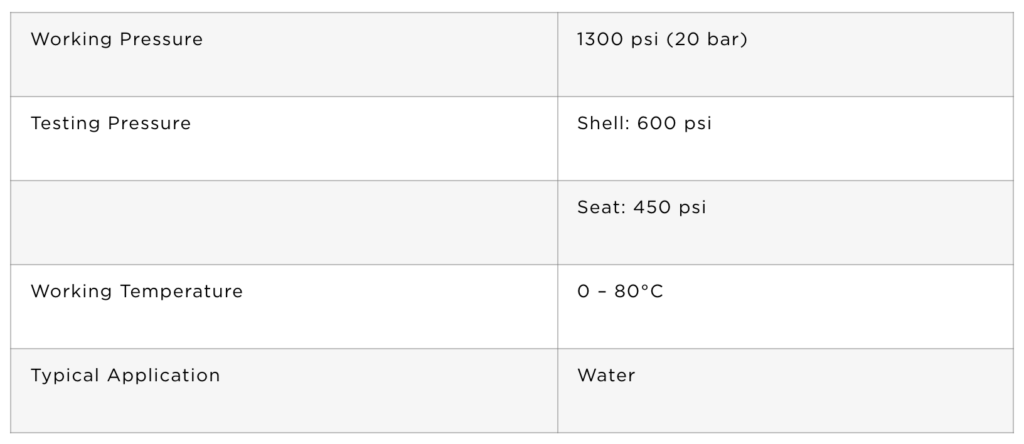

Working Pressure: 300 PSI (20 bar)
Testing Pressure: Shell: 600 PSI | Seat: 450 PSI
Working Temperature: 0°C – 80°C
Typical Application: Water
