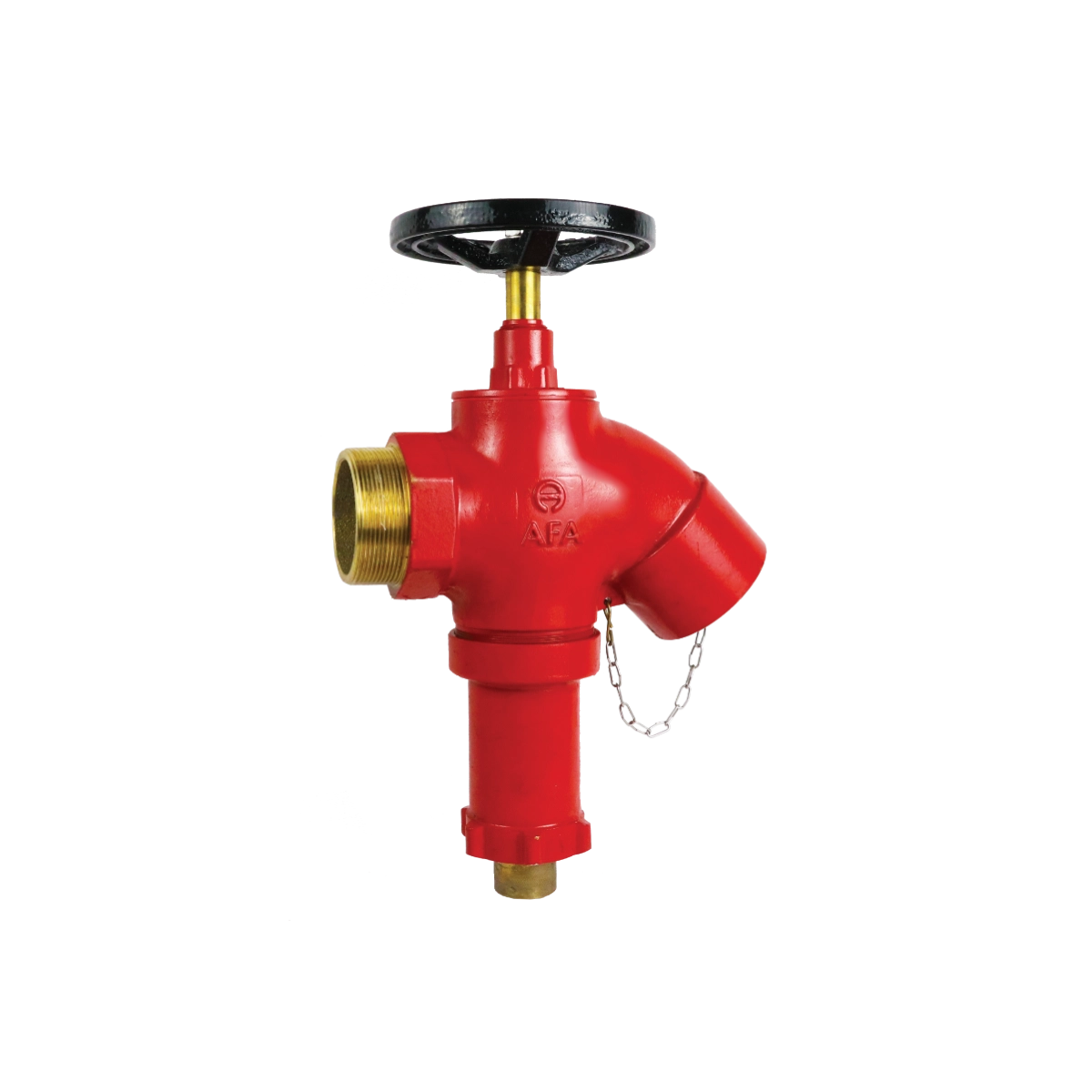

'AFA' PRV-F

E Type Pressure Reducing Valve

Size
65 mm


Pressure Rating
PN20


Connection
Threaded

Ask For A Quote
Quantity:
Certified by

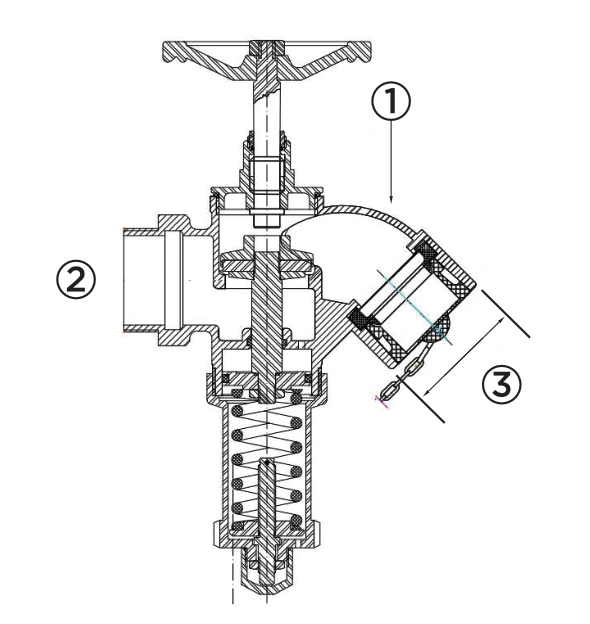

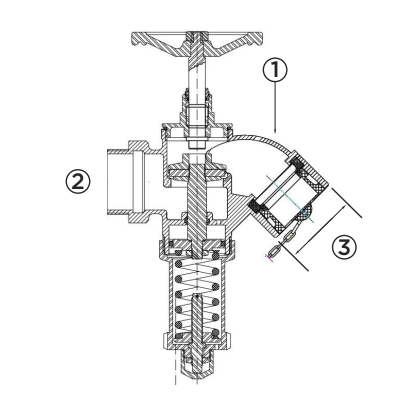

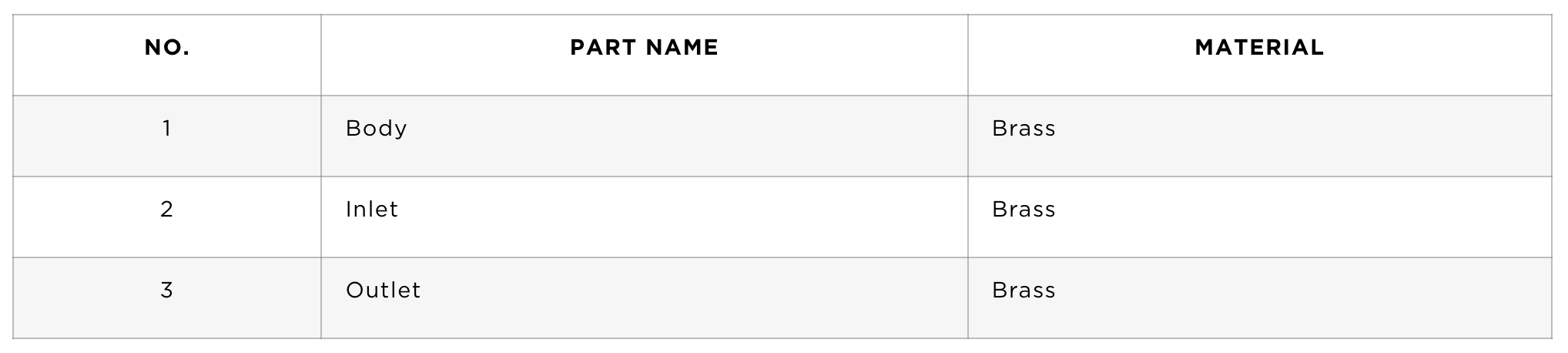

NO.PART NAMEMATERIAL
1BodyBrass
2InletBrass
3OutletBrass
  • Complete with a plastic blank cap and chain
  • Hydrostatically tested and manufactured in accordance with BS 5401-1
  • 2 1/2″ inlet threaded to BS EN 10226-2 (BSP) / flanged to BS 4504 PN16
  • Outlet female instantaneous connections complying with BS 336:2010

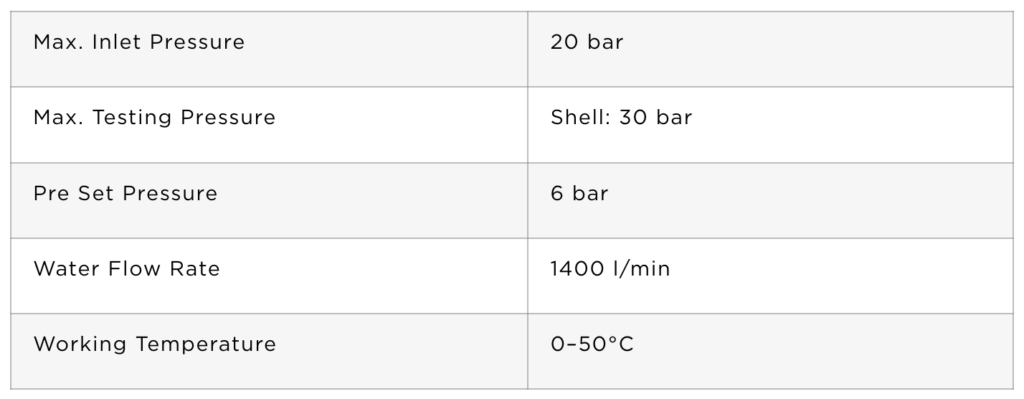

Max. Inlet Pressure: 20 Bar

Max. Testing Pressure: Seal: 30 Bar

Pre-Set Pressure: 6 bar

Water Flow Rate: 1400 l/min

Working Temperature: 0°C- 50°C
