'LEDE' XGQT2

Flexible Coupling

Size
1″ – 24″


Max. Pressure
20 Bar (300 PSI)

Ask For A Quote
Quantity:
Certified by

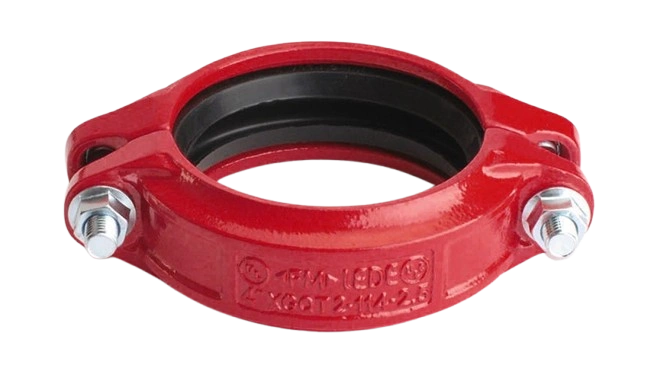

The LEDE Model XGQT2 is a standard flexible coupling for use in a variety of general piping applications of moderate pressure services. The Model XGQT2 couplings feature flexibility that can deal with misalignment, distortion, thermal stress, vibration and noise and also resist seismic tremors. With the use of Model XGQT2 couplings, you can even design a curved layout.

Sizes available:
25 mm – 600 mm / 1” ~ 24”

Working Pressure:
Up to 20 bar / 300 psi
Maximum working pressures are CWP (cold water pressure)or maximum allowed working pressure within the service temperature range of the gasket used in the coupling, based on standard wall or sch. 7/10/40 steel pipe, cut or roll-grooved to ANSI/AWWA C606-04 specifications. These ratings may occasionally differ from the maximum working pressures listed and/or approved by UL, ULC, and/or FM as testing conditions and test pipes differ

Housing Coating:
Red Enamel

Housing material:
Ductile Iron conforming to ASTM A536 Gr. 65-45-12.

Gasket material:
EPDM (Silicon free) These gaskets have excellent self-sealing capabilities and are designed to provide a leak-tight seal
