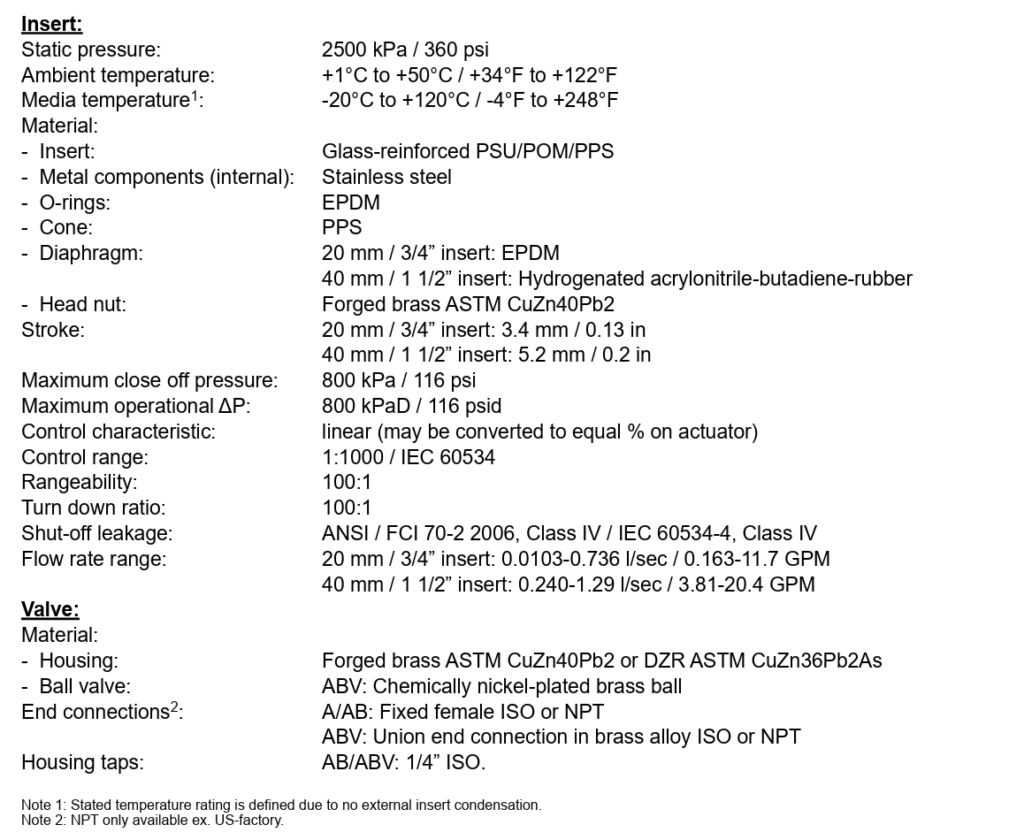

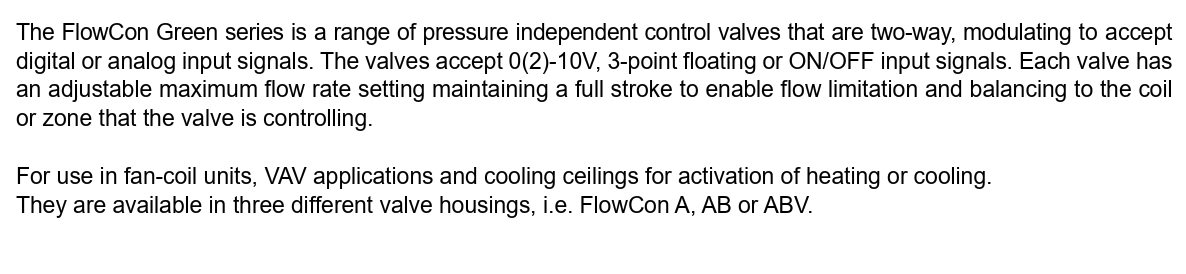

FlowCon Green.0 / Green.1 / Green.2

Insert

• Static pressure: 2500 kPa / 360 psi

• Ambient temperature: +1°C to +50°C / +34°F to +122°F

• Media temperature: -20°C to +120°C / -4°F to +248°F¹

• Material:

  • Insert: Glass-reinforced PSU/POM/PPS

  • Metal components (internal): Stainless steel

  • O-rings: EPDM

  • Cone: PPS

  • Diaphragm:

    • 20 mm / 3/4” insert: EPDM

    • 40 mm / 1 1/2” insert: Hydrogenated acrylonitrile-butadiene-rubber

  • Head nut: Forged brass ASTM CuZn40Pb2

• Stroke:

  • 20 mm / 3/4” insert: 3.4 mm / 0.13 in

  • 40 mm / 1 1/2” insert: 5.2 mm / 0.2 in

• Maximum close off pressure: 800 kPa / 116 psi

• Maximum operational $\Delta$P: 800 kPaD / 116 psid

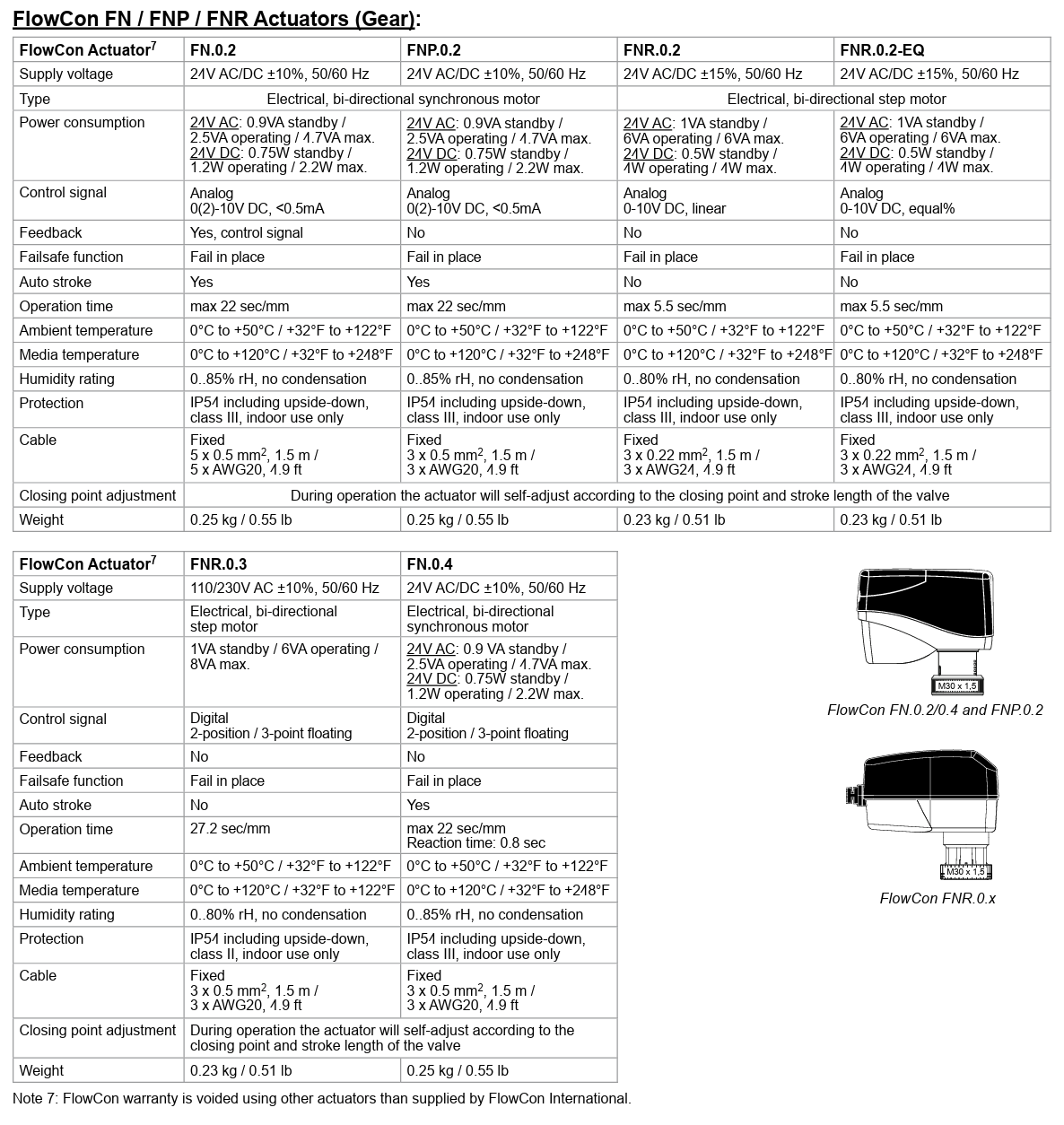

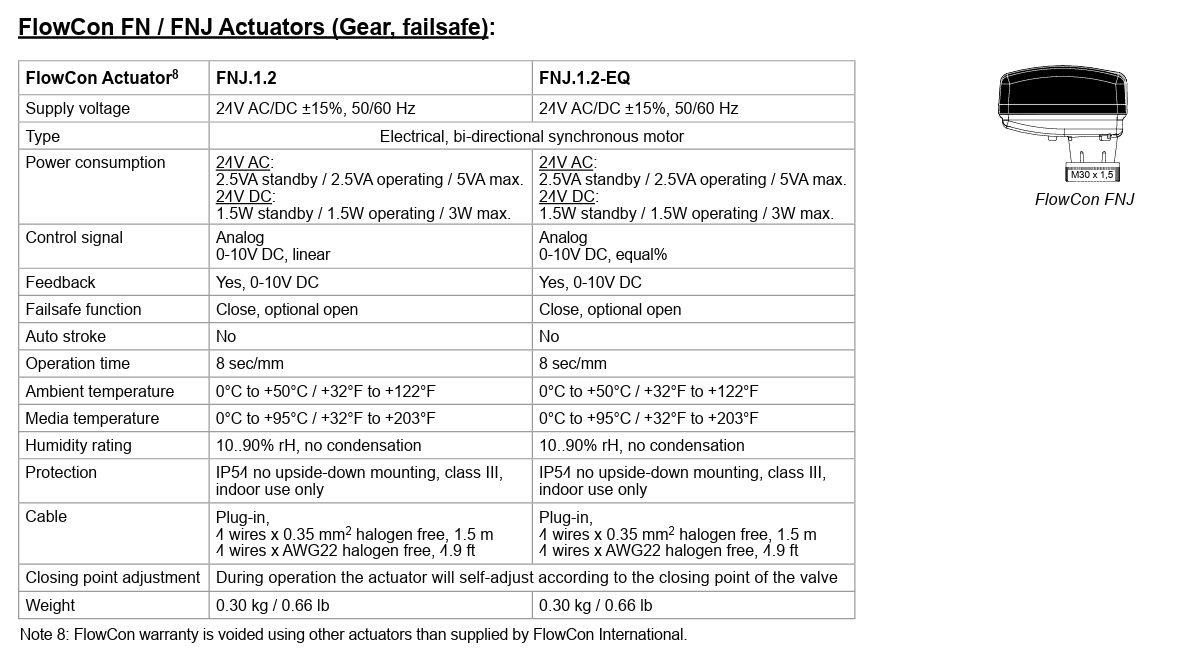

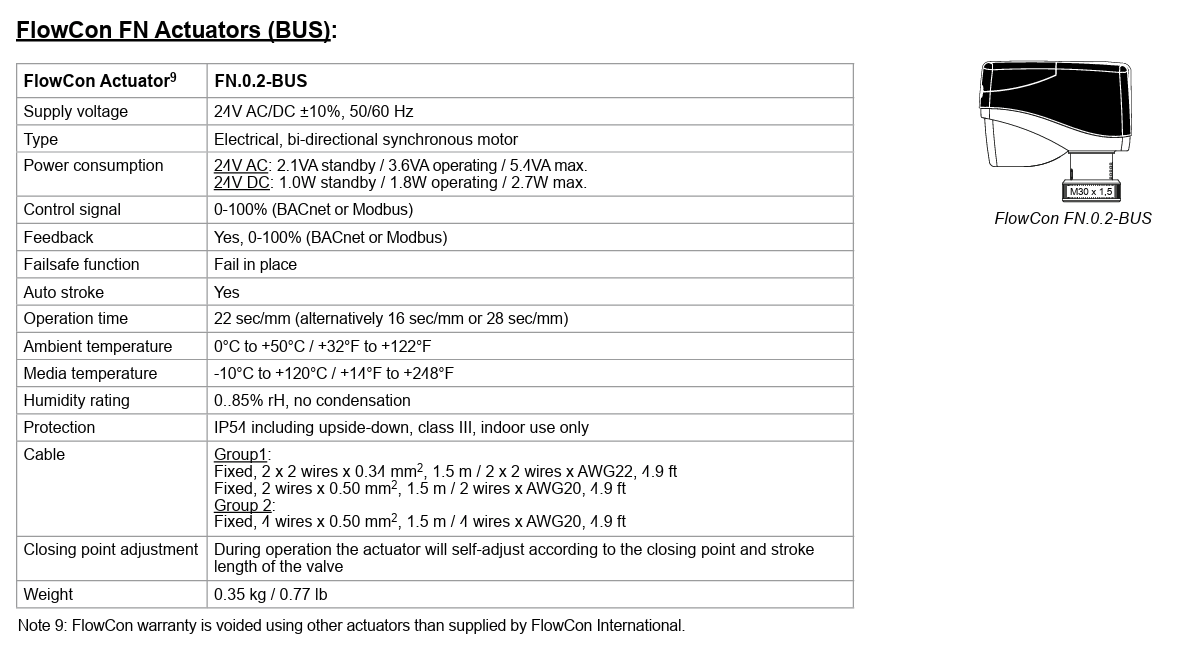

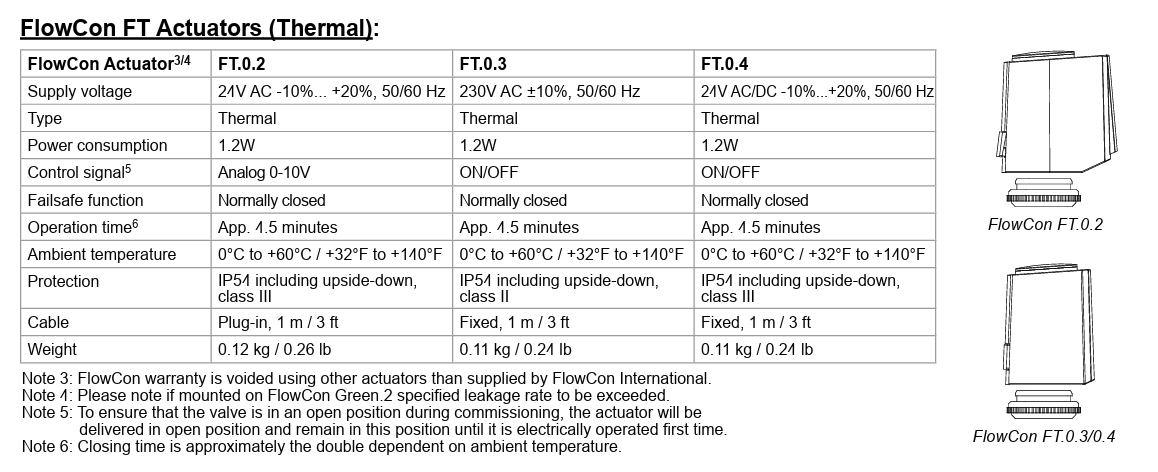

• Control characteristic: Linear (may be converted to equal % on actuator)

• Control range: 1:1000 / IEC 60534

• Rangeability: 100:1

• Turn down ratio: 100:1

• Shut-off leakage: ANSI / FCI 70-2 2006, Class IV / IEC 60534-4, Class IV

• Flow rate range:

  • 20 mm / 3/4” insert: 0.0103-0.736 l/sec / 0.163-11.7 GPM

  • 40 mm / 1 1/2” insert: 0.240-1.29 l/sec / 3.81-20.4 GPM

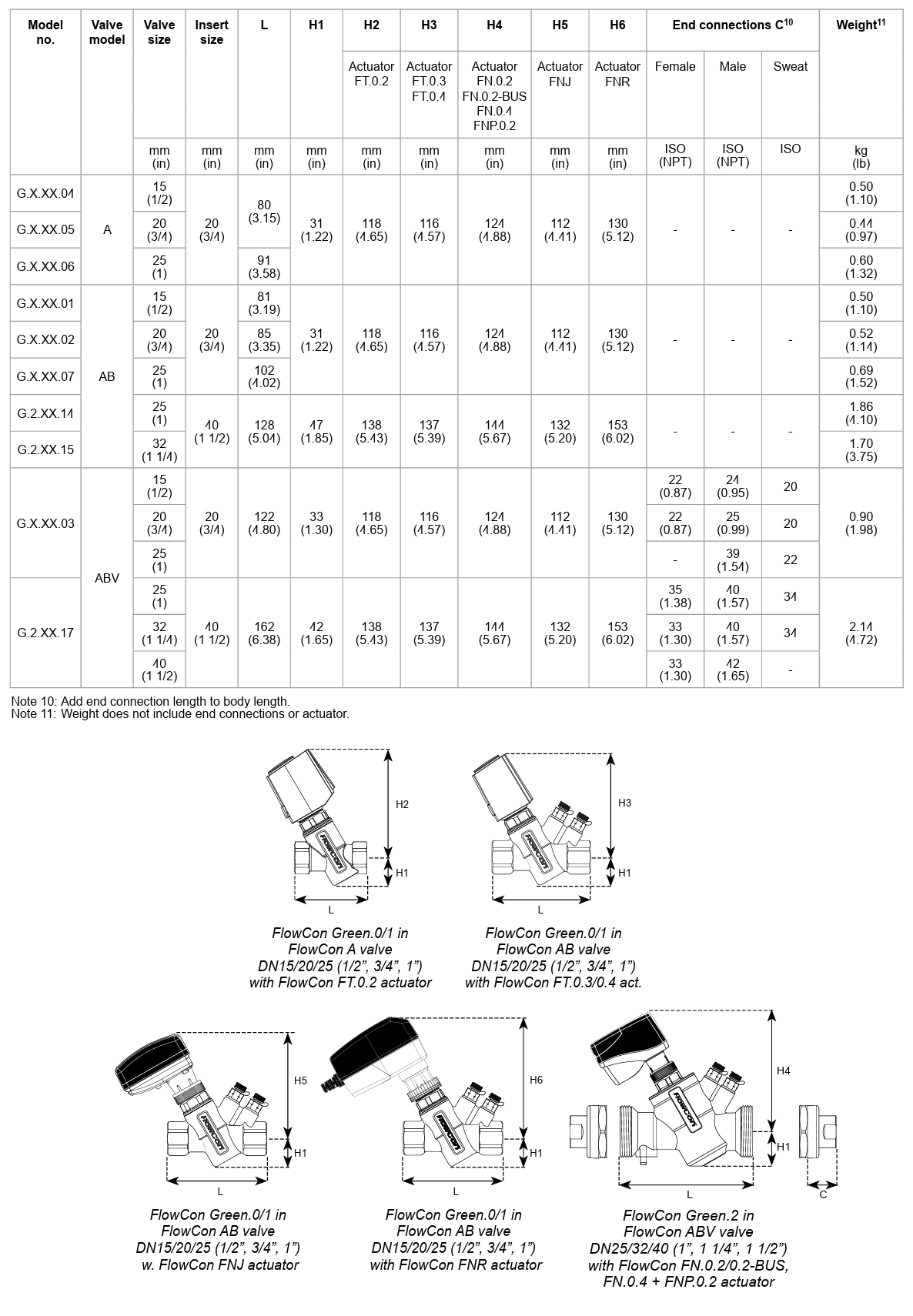

Valve

• Material:

  • Housing: Forged brass ASTM CuZn40Pb2 or DZR ASTM CuZn36Pb2As

  • Ball valve: ABV: Chemically nickel-plated brass ball

• End connections:²

  • A/AB: Fixed female ISO or NPT

  • ABV: Union end connection in brass alloy ISO or NPT

• Housing taps: AB/ABV: 1/4” ISO

Note 1: Stated temperature rating is defined due to no external insert condensation.

Note 2: NPT only available ex. US-factory.
