'AFA' GPG

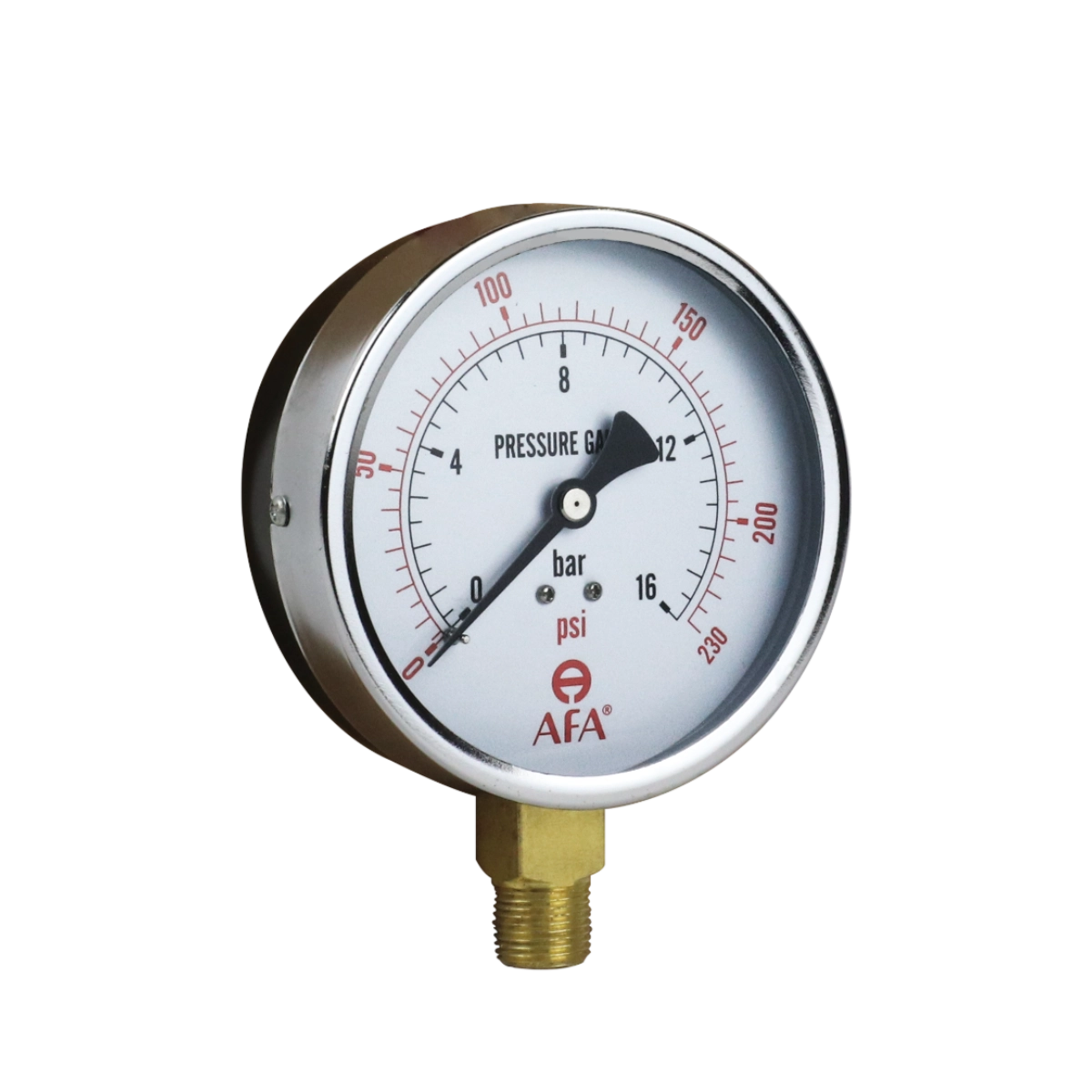

General Pressure Gauge

Material
Case – Black Steel
Socket – Brass


Pressure Rating
0 – 100, 150, 200, 350, 600 PSI


Connection
1/4″ BSPT (for 2 1/2″)
3/8″ BSPT (for 4″)

Ask For A Quote
Quantity:
Certified by
Dial Size2 1/2" (65mm), 4" (100mm)
Pressure Range0 - 100, 150, 250, 350, 600 PSI
Scale ReadingBar & PSI
DialWhite aluminum with black and red markings
CaseSteel, painted black
LensGlass
RingSteel, chrome plated
PointerAluminum, painted black
SocketBrass
Connection1/4" BSPT (for size 65mm)
3/8" BSPT (for size 100mm)
Bourdon TubePhosphor Bronze
MovementBrass
Over-Pressure Limit25% of full scale value
Working PressureMaximum 75% of full scale value
Ambient Temperature-20°C - 60°C
Accuracy+/- 1.6% of full scale
ProtectionIP52
  • Steel Casing
  • Dual scale pressure unit reading in bar and PSI
  • Applicable for HVAC System, Fire Protection System, Plumbing / Sanitary System
