Lug Type Butterfly Valve

– Actuator mounting flange conforms to ISO 5211 drilling
– Butterfly valve can be supplied with electric actuator, micro switch, tamper switch (upon request)
– Hydrostatically tested to BS EN 12266-1:2012
– Manufactured in accordance with BS EN 593:2009
– Flanged to BS EN 1092-1 PN25
– Applicable for Waterwork, Sewage System, Drainage System, Fire Protection System, HVAC System,
– Plumbing / Sanitary System, Heating System, Irrigation System

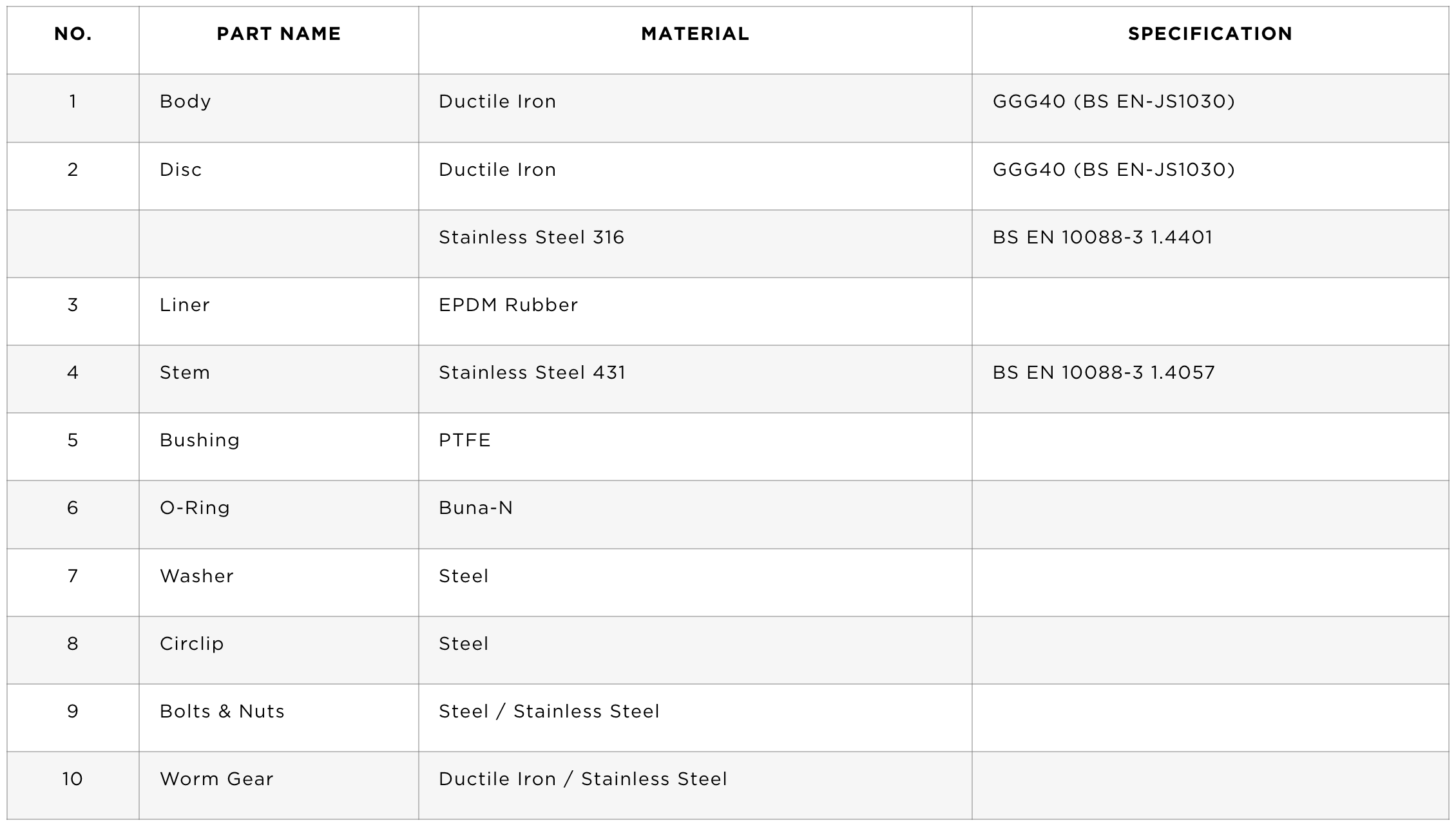

– Optional material available on request
