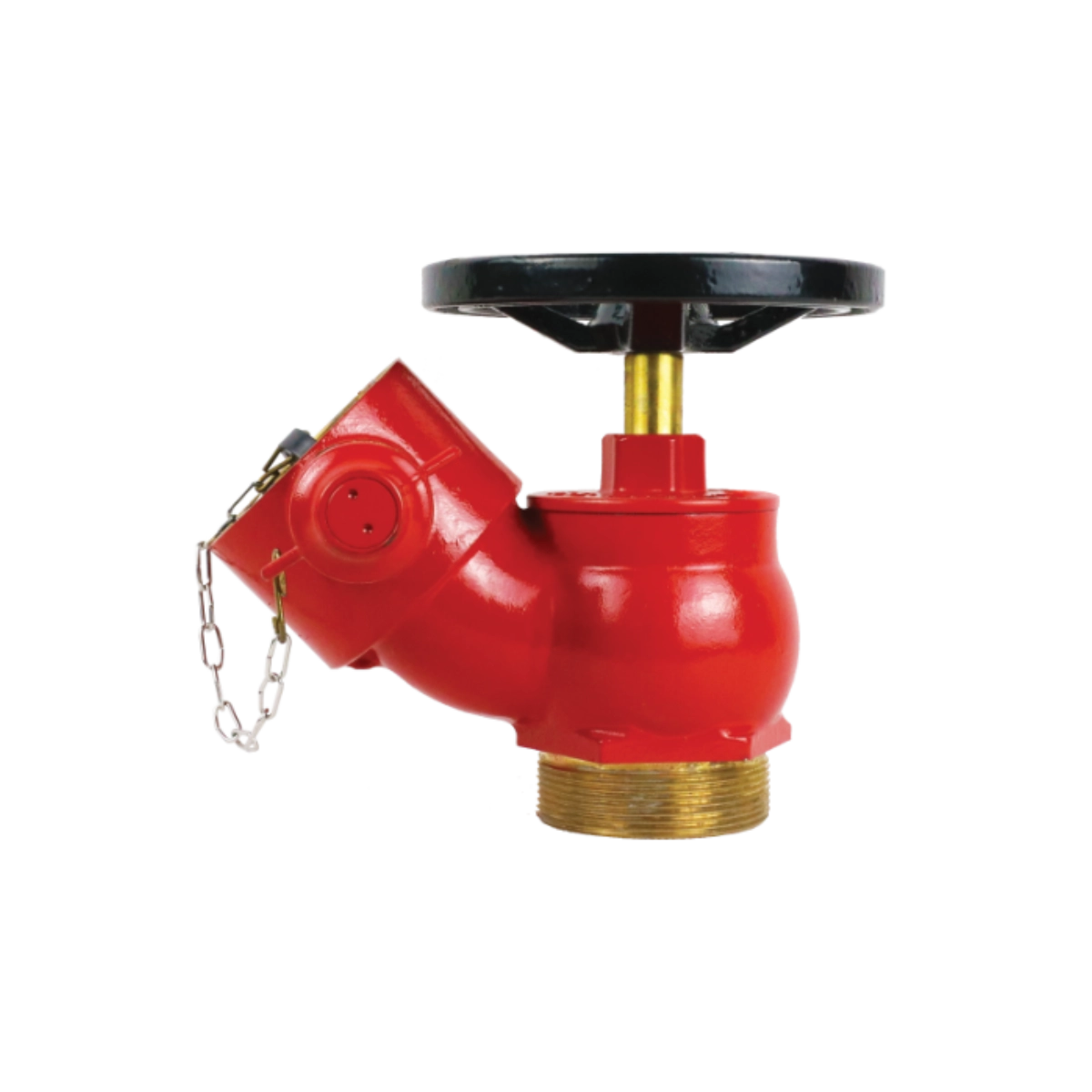

'AFA' LV-F

Oblique Type Landing Valve

Size
65 mm


Pressure Rating
PN15


Connection
Threaded

Ask For A Quote
Quantity:
Certified by

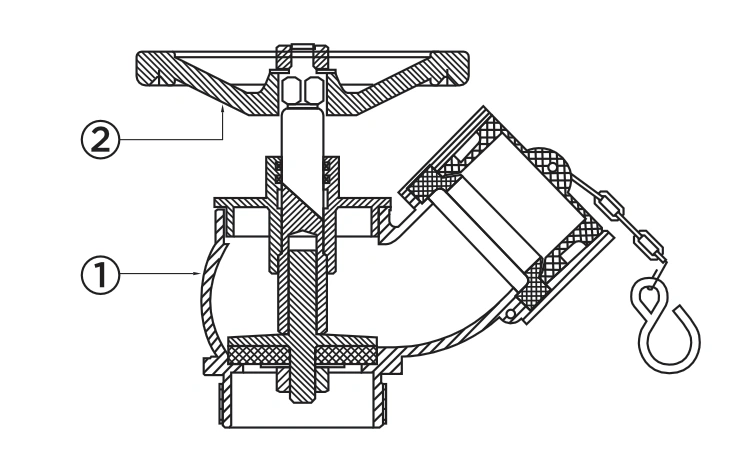

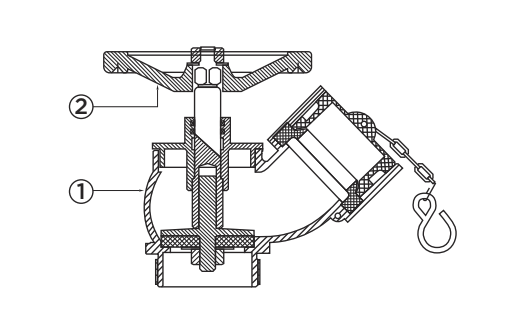

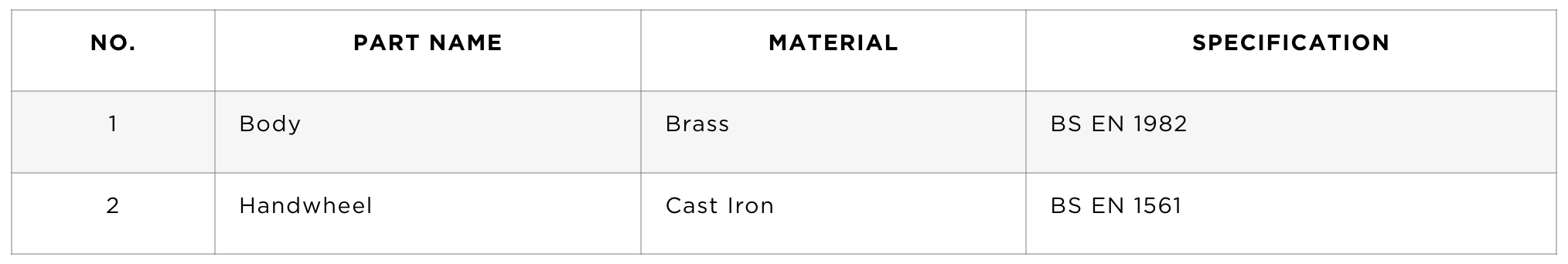

NO.PART NAMEMATERIALSPECIFICATION
1BodyBrass BS EN 1982
2HandwheelCast IronBS EN 1561
  • Complete with a plastic blank cap and chain
  • Hydrostatically tested and manufactured in accordance with BS 5401-1
  • 2 1/2″ inlet threaded to BS EN 10226-2 (BSP) / flanged to BS 4504 PN16
  • Outlet female instantaneous connections complying with BS 336:2010

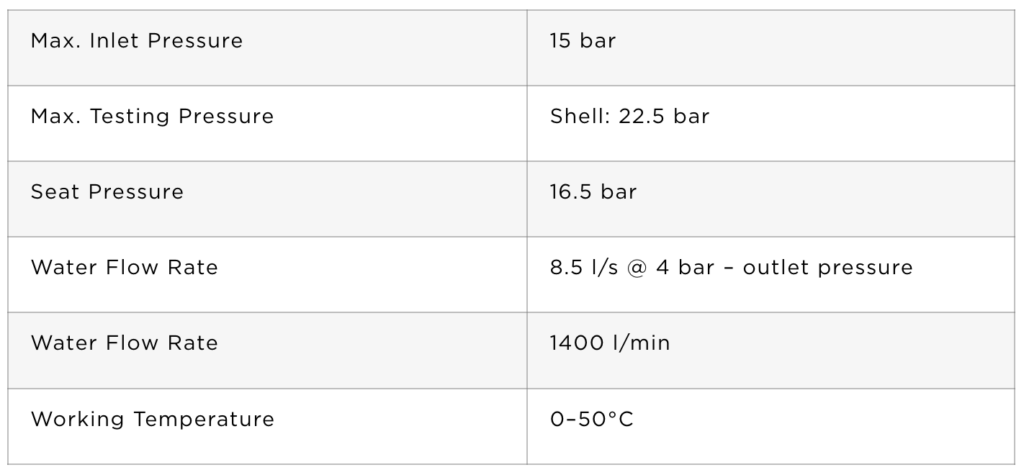

Working Pressure: 15 Bar

Testing Pressure: Shell: 22.5 bar | Seat: 16.5 bar

Water Flow Rate: 8.5 l/s @ 4 bar – outlet pressure

Working Temperature: 0°C- 50°C
