'AFA' PFH-F

Pillar Hydrant

Material
Body – Ductile Iron


Pressure Rating
PN16


Connection
4″ inlet universal drilled flange

Ask For A Quote
Quantity:
Certified by

Material

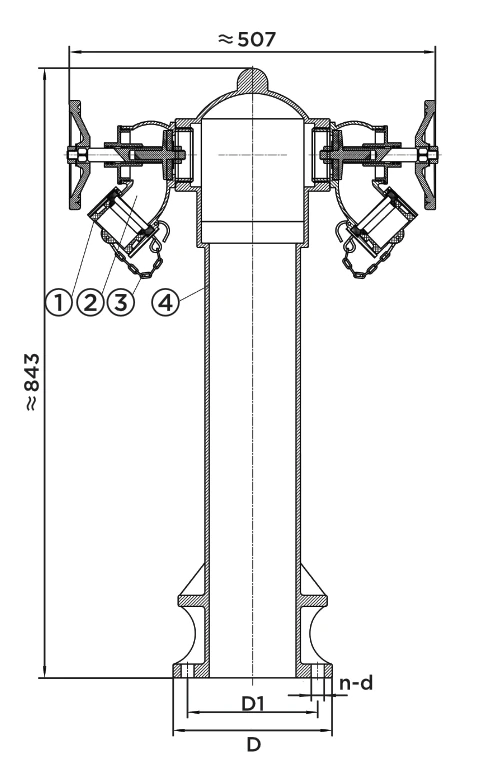

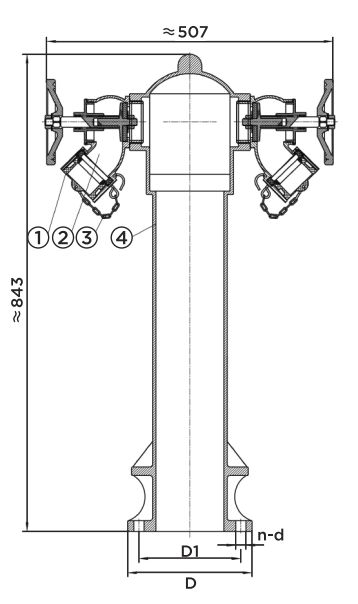

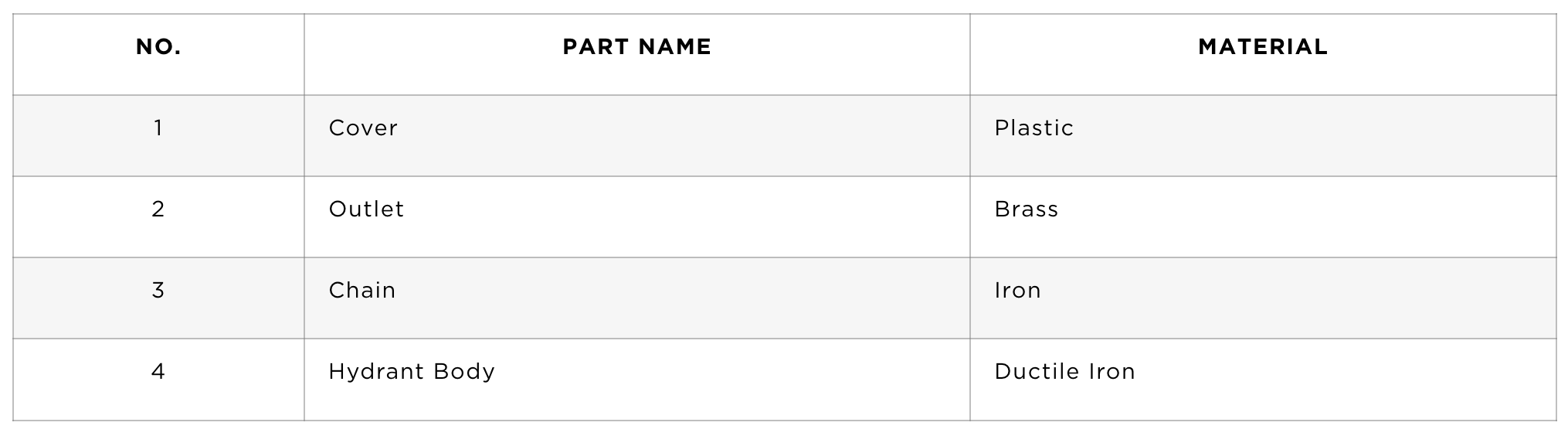

No.Part NameMaterial
1CoverPlastic
2OutletBrass
3ChainIron
4Hydrant BodyDuctile Iron

Flange Size

DD1n-d
LBSP2201808-18
ANSI229190.58-19
  • Hydrostatically tested and manufactured in accordance with BS 750
  • 4″ inlet universal drilled flange complying to BS Standard
  • 2 1/2″ London round thread outlet complying with BS 750
  • Female instantaneous connections complying with BS 336:2010

Working Pressure: 16 bar

Testing Pressure:  Shell: 24 bar

Working Temperature: Max 55°C
