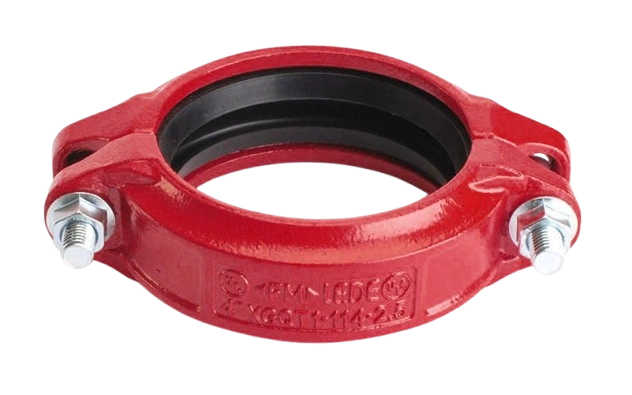

'LEDE' XGQT1

Rigid Coupling

Size
1″ – 12″


Max. Pressure
20 Bar (300 PSI)

Ask For A Quote
Quantity:
Certified by

The LEDE Model XGQT is a T&G (tongue & groove) design rigid coupling for moderate pressure applications where rigidity is required including value connections, mechanical rooms, fire mains and long straight runs. The built-in teeth and T&G mechanism firmly grasp the pipe ends to eliminate undesired. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13.

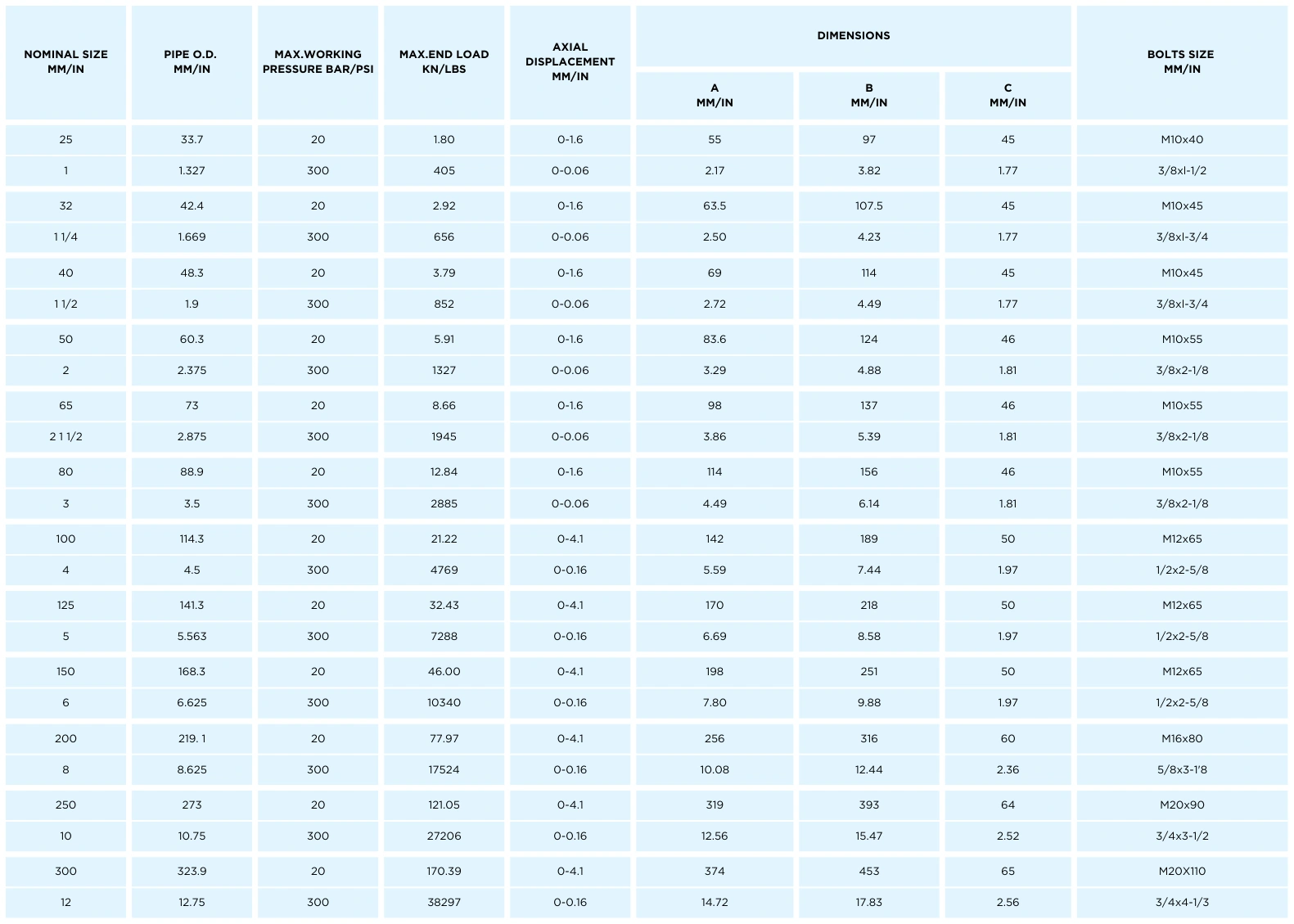

Sizes available:
25 mm – 300 mm / 1” ~ 12”

Working Pressure:
Up to 20 bar / 300 psi
Maximum working pressures are CWP (cold water pressure)or maximum allowed working pressure within the service temperature range of the gasket used in the coupling, based on standard wall or sch. 7/10/40 steel pipe, cut or roll-grooved to ANSI/AWWA C606-04 specifications. These ratings may occasionally differ from the maximum working pressures listed and/or approved by UL, ULC, and/or FM as testing conditions and test pipes differ

Housing Coating:
Red Enamel

Housing material:
Dutile Iron conforming to ASTM A536 Gr. 65-45-12.

Gasket material:
EPDM (Silicon free) These gaskets have excellent self-sealing capabilities and are designed to provide a leak-tight seal
