Size
20 – 1200 mm
Pressure Rating
PN16

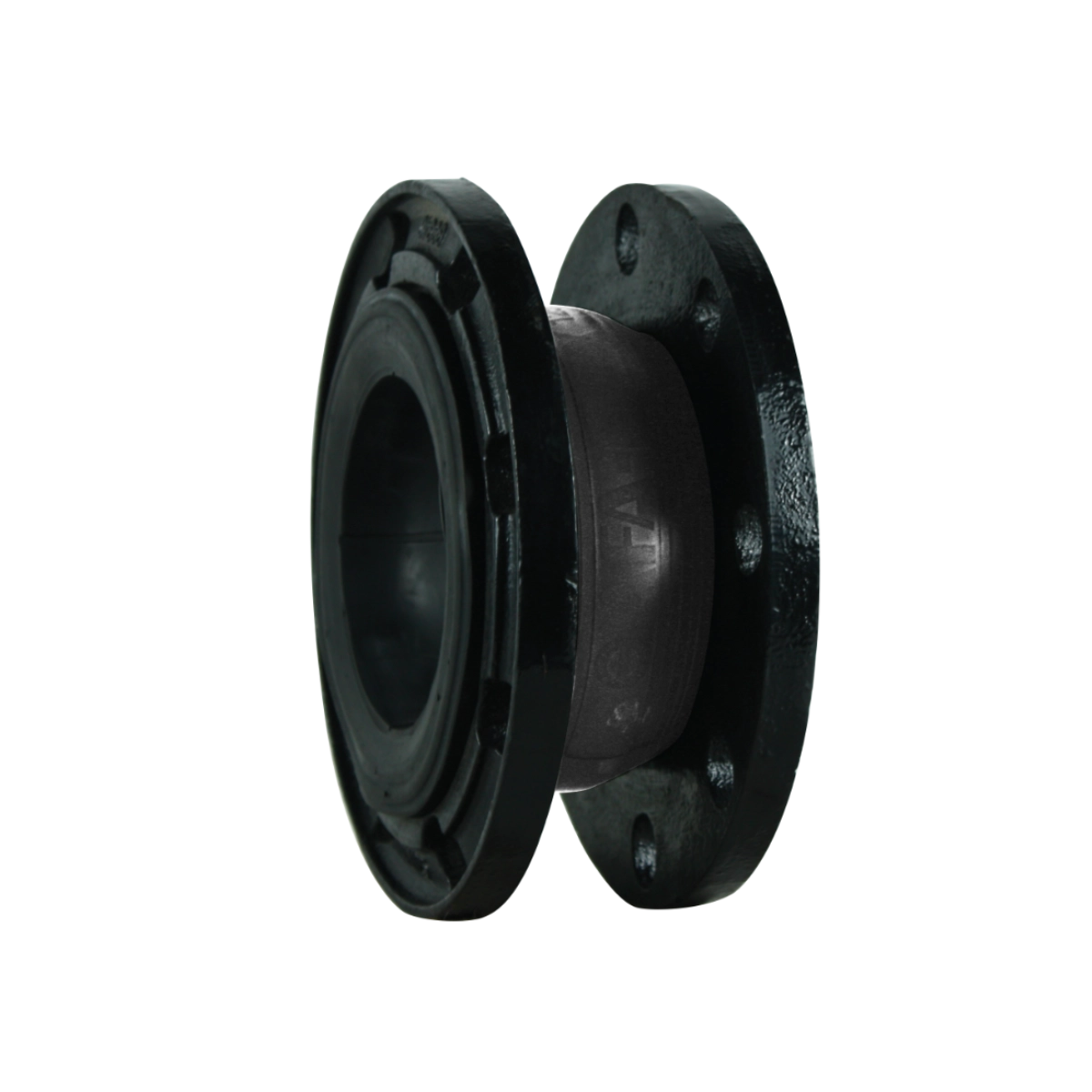

Type
Single bellow, Flanged connection

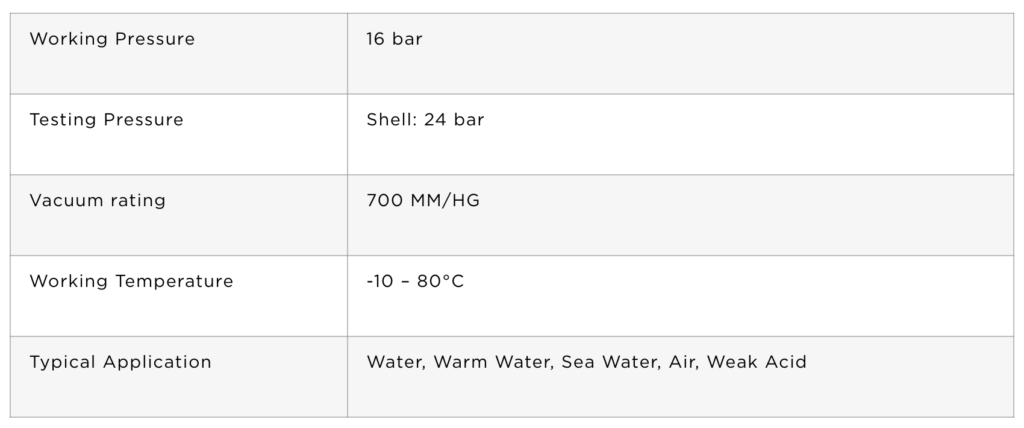

Working Pressure: 16 bar
Testing Pressure: Shell: 24 bar
Vacuum Rating: 700 MM/HG
Working Temperature:
-10°C – 80°C
Typical Application:
Water, Warm Water, Sea Water, Air, Weak Acid
Operating Temperature (°C) | AMBIENT | 50 | 60 | 70 | 80 |
Max Operating Pressure (Bar) | 16 | 12.4 | 10 | 7.5 | 6.5 |
