‘AFA’ 99SSHDC

Single Sphere Flexible Joint With Control Rod

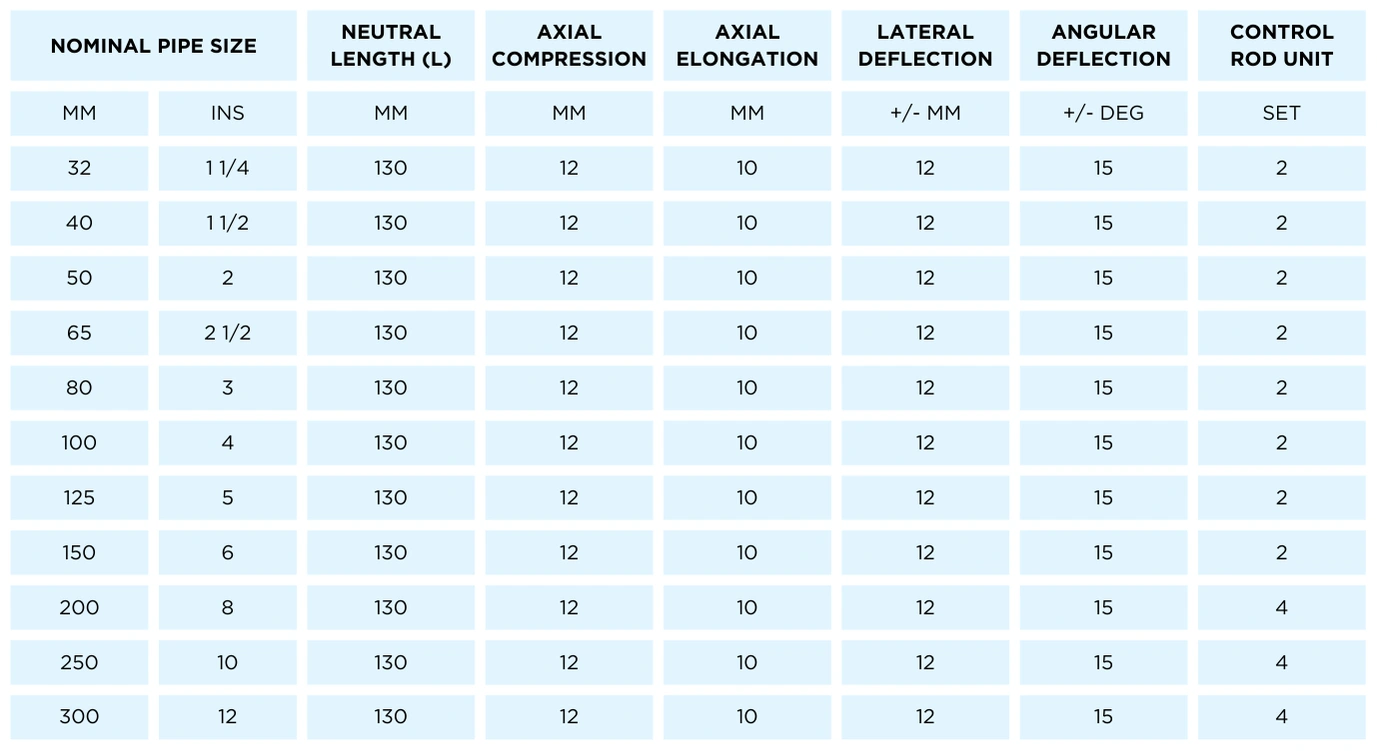

Size
32 – 300 mm


Pressure Rating
PN25


Type
Single bellow, Flanged connection

Ask For A Quote
Quantity:
Certified by
NO.PART NAMEMATERIALSPECIFICATION
1Body (Outer Layer)EPDM RubberBS EN 681-1, BS 6920-1
2Body (Inner Layer)EPDM RubberBS EN 681-1, BS 6920-1
3Reinforcing FabricNylon Fabric
4WireHard Steel Wire
5FlangeGalvanised Mild Steel / Brass
6Control Rod UnitGalvanised Steel
  • Reduce vibration, noise and movement inherent in the piping system
  • Hydrostatically tested to BS EN 12266-1:2012
  • Threaded to BS EN 10226-2 [BSP] / ANSI B1.20.1 [NPT]
  • Applicable for HVAC Systems, Fire Protection System, Plumbing / Sanitary System, Pollution Control Systems, Power Generation Plant, Marine Cooling Systems, etc.
  • Optional accessories: Control Rod (on request)

Working Pressure: 25 bar

Testing Pressure: 30 bar

Vacuum Rating: 700 MM/HG

Working Temperature:
-10°C – 80°C

Typical Application:
Water, Warm Water, Sea Water, Air

Operating Temperature (°C)AMBIENT50607080
Max Operating Pressure (Bar)251512.4107.5
