Size
40 – 600 mm
Pressure Rating
PN10 / PN16
Type
Flanged Connection

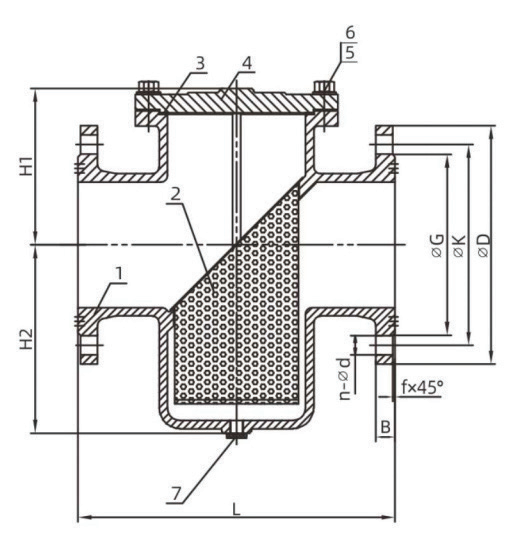

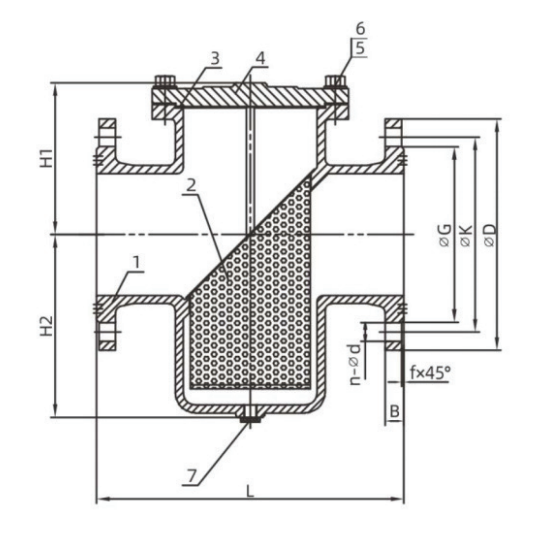

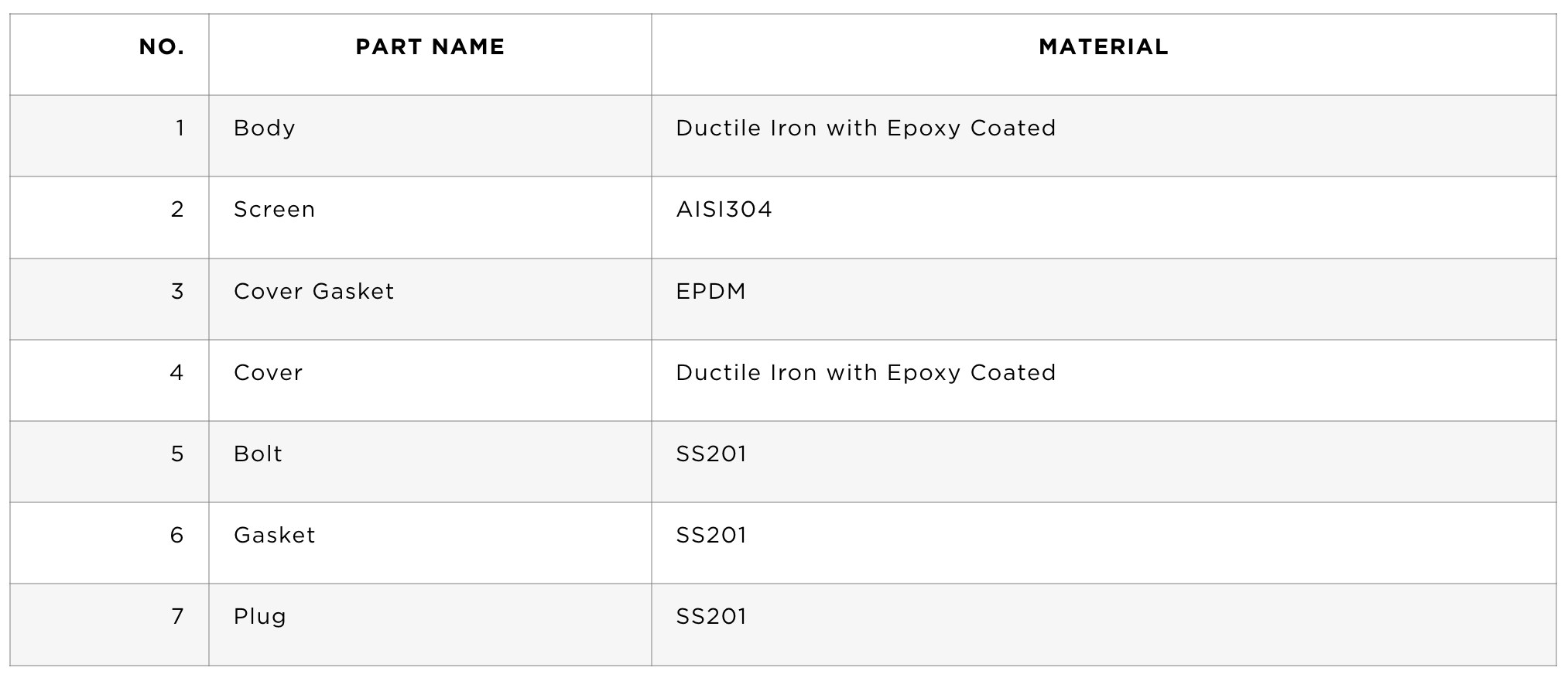

| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Ductile Iron with Epoxy Coated |
| 2 | Screen | AISI304 |
| 3 | Cover Gasket | EPDM |
| 4 | Cover | Ductile Iron with Epoxy Coated |
| 5 | Bolt | SS201 |
| 6 | Gasket | SS201 |
| 7 | Plug | SS201 |
A T-pot strainer is a strainer shaped like the letter “T” and is installed in pipelines to remove debris and designed to protect downstream equipment from damage or clogging by foreign particles. Its compact design and robust construction make it suitable for a wide range of applications.
Compact Design
Ideal for installations where space is restricted or concern
Low Pressure Drop
Engineered with an unrestricted flow path and optimised screen design to ensures system efficiency.
Easy Maintenance
Features a removable cover for easy access to the filter
screen without draining the entire pipeline or removing the strainer body.
Working Pressure: PN10 / PN16
Working Temperature: -29 – 425°C
Typical Application: Water, Oil, Steam
