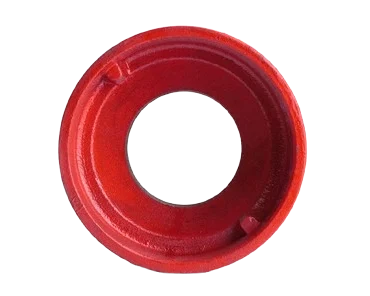

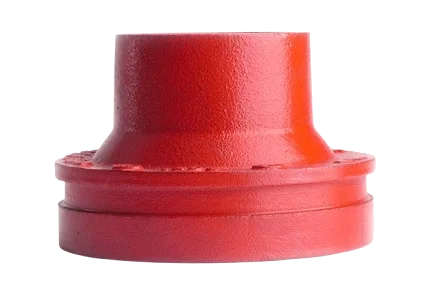

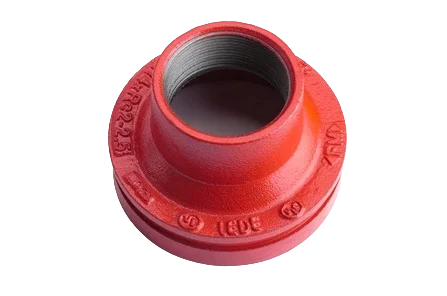

'LEDE' XGQT07S

Threaded Concentric Reducer

Size
50 x 25 mm – 200 x 100 mm / 2’’ x 1’’ ~ 8’’ x 4’’


Max. Pressure
16 Bar (230 PSI)

Ask For A Quote
Quantity:
Certified by

LEDE concentric reducer is cast of ductile iron. The
end-to-end dimensions of these reducers are less than that of fabricated reducers.

Sizes available:
50 x 25 mm – 200 x 100 mm / 2’’ x 1’’ ~ 8’’ x 4’’

Working Pressure:
Up to 16 bar / 230 psi
Maximum working pressures are CWP (cold water pressure)or maximum allowed working pressure within the service temperature range of the gasket used in the coupling, based on standard wall or sch. 7/10/40 steel pipe, cut or roll-grooved to ANSI/AWWA C606-04 specifications. These ratings may occasionally differ from the maximum working pressures listed and/or approved by UL, ULC, and/or FM as testing conditions and test pipes differ

Coating:
Red Enamel

Material:
Ductile Iron conforming to ASTM A536 Gr. 65-45-12.
