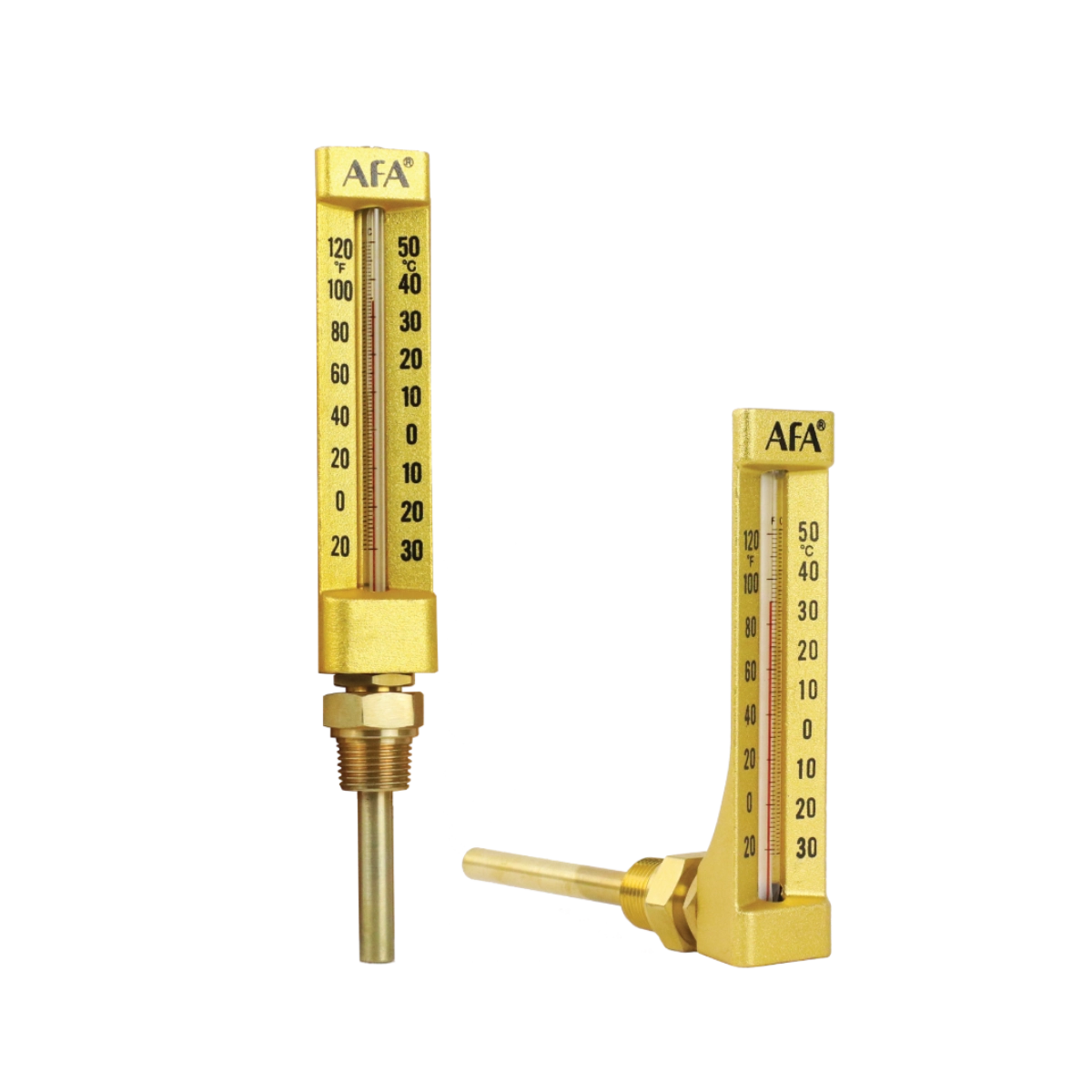

'AFA' TM-S | TM-A

V-Line Thermometer

Length
2 1/2″ , 4″ , 6″


Temperature Range
-30°C – 50°C


Connection
1/2″ BSPT

Ask For A Quote
Quantity:
Certified by

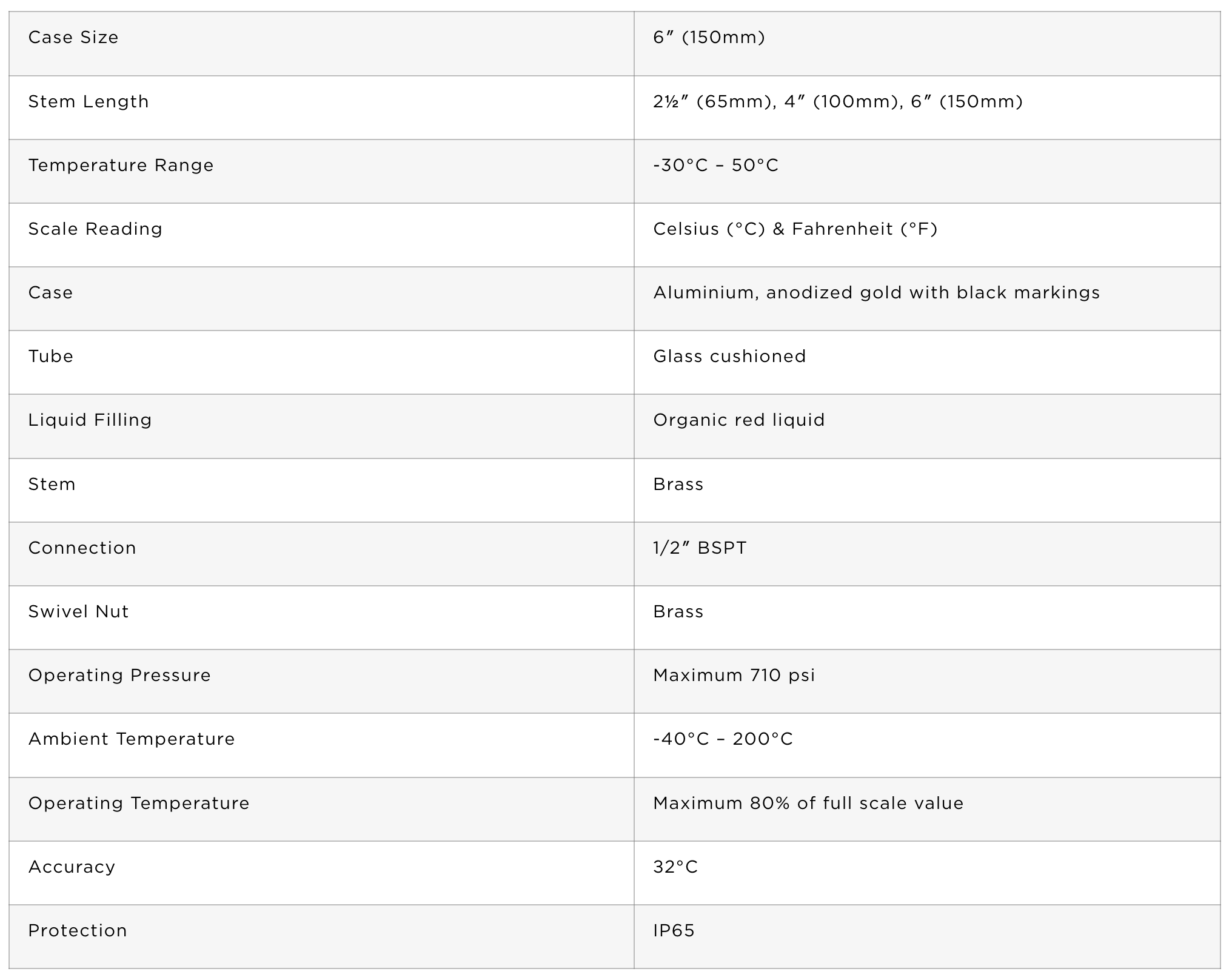

Case Size6" (150 mm)
Stem Length2 1/2" (65 mm) | 4" (100 mm) | 6" (150 mm)
Temperature Range-30°C - 50°C
Scale ReadingCelcius (°C) & Fahrenheit (°F)
CaseAluminum, anodized gold with black markings
TubeGlass Cushioned
Liquid FillingOrganic red liquid
StemBrass
Connection1/2" BSPT
Swivel NutBrass
  • Straight type (TM-S) and Angle type (TM-A)
  • Steel casing
  • Dual scale pressure units reading in bar and PSI
  • Applicable for HVAC Systems, Machine Building, Vessel Construction , etc.

Operating Pressure: Max 710 PSI

Ambient Temperature: -40°C – 200°C

Operating Temperature: Maximum 80% of full-scale value

Accuracy: +/- 2°C

Protection: IP65
