'LEDE' XD381X

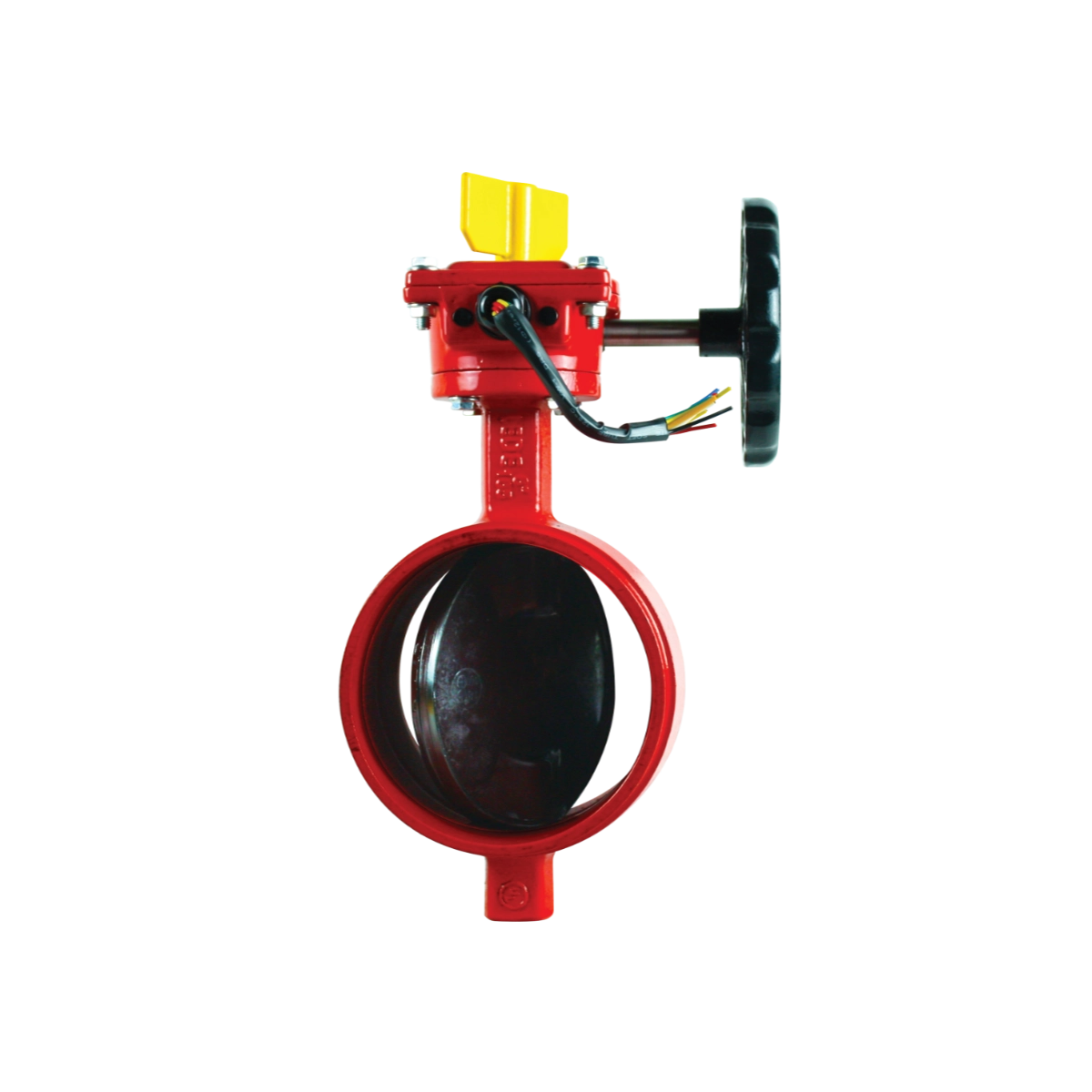

Wafer Type Butterfly Valve With Tamper Switch (Grooved End)

Size
50 – 200 mm


Pressure Rating
PN16 / PN25


Type
Worm Gear / Grooved End

Ask For A Quote
Quantity:
Certified by

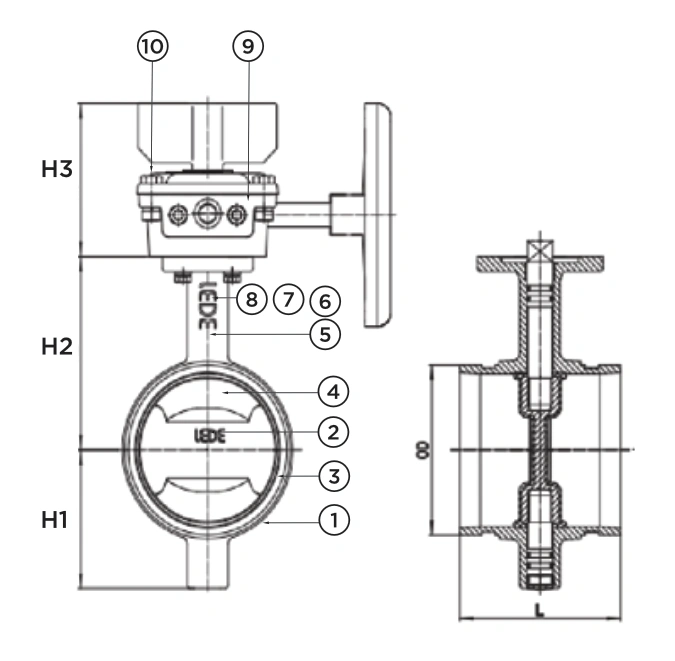

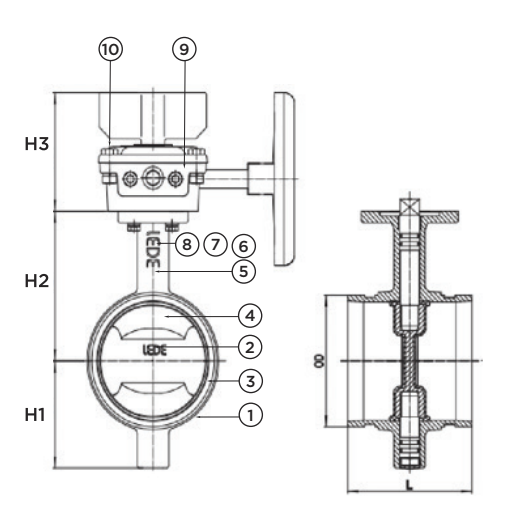

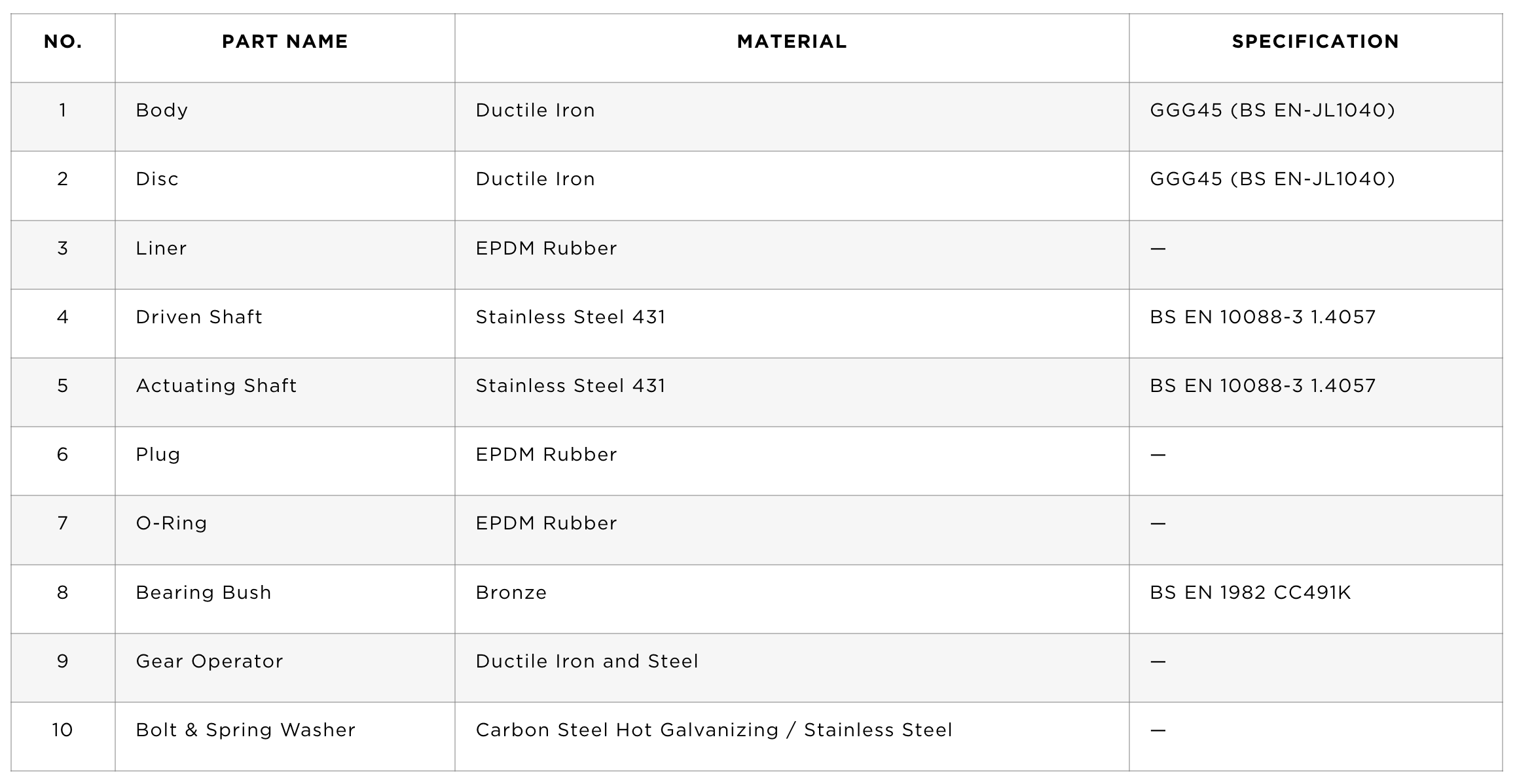

NO.PART NAMEMATERIALSPECIFICATIONS
1BodyDuctile IronGGG45 (EN-JS1040)
2DiscDuctile IronGGG45 (EN-JS1040)
3LinerEPDM Rubber
4Driven ShaftStainless Steel 431BS EN 10088-3 1.4057
5Actuating ShaftStainless Steel 431BS EN 10088-3 1.4057
6PlugEPDM Rubber
7O-RingEPDM Rubber
8Bearing BushBronzeBS EN 1982 CC491K
9Gear OperatorDuctile Iron and Steel
10Bolt & Spring WasherCarbon Steel Hot Galvanising / Stainless Steel
  • Actuator mounting flange conforms to ISO 5211 drilling
  • Hydrostatically tested to UL 1091
  • Manufactured in accordance with MSS SP-67
  • Grooved to AWWA C606
  • Applicable for HVAC Systems, Fire Protection Systems, Plumbing / Sanitary Systems

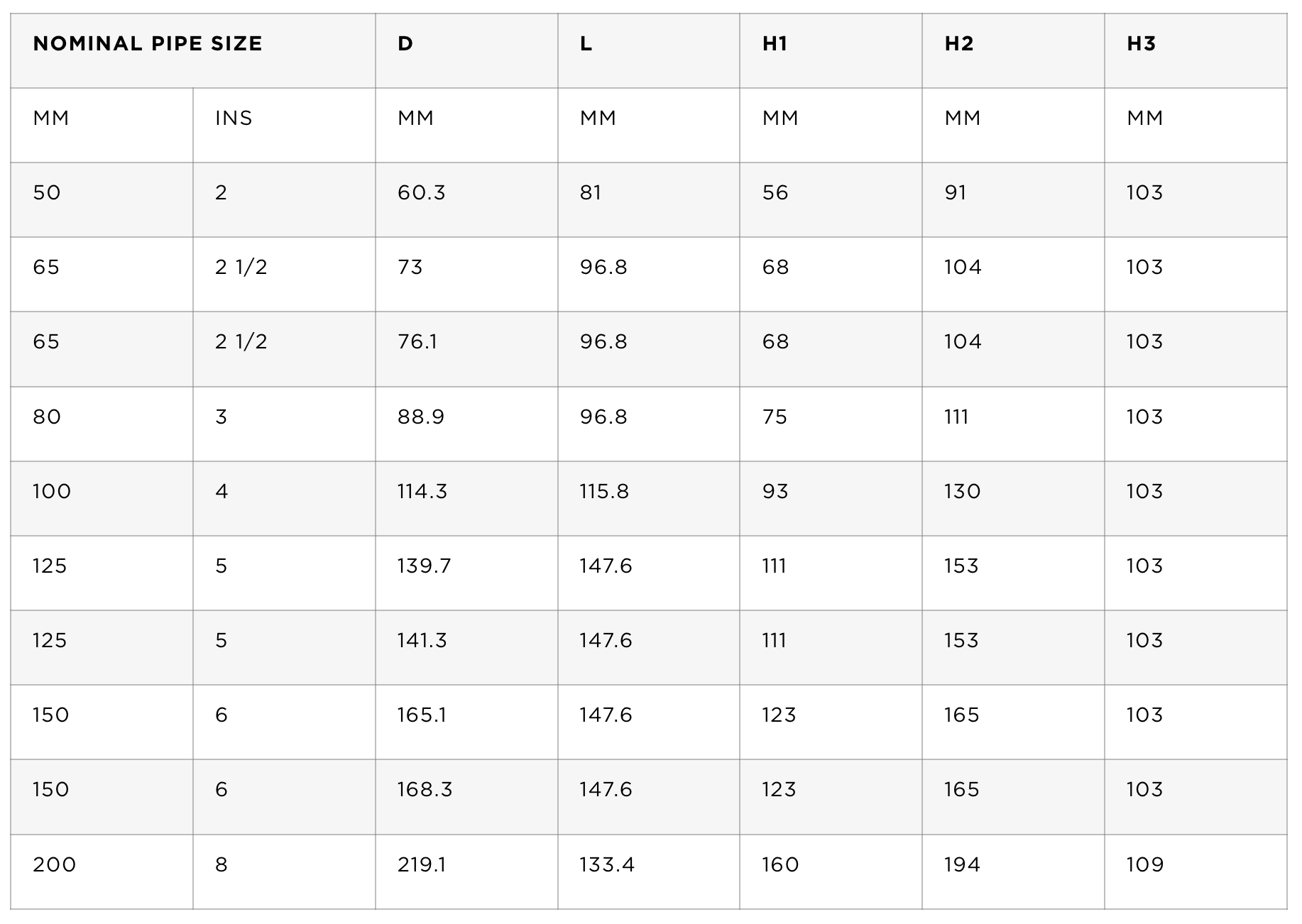

NOMINAL PIPE SIZEDLH1H2H3
MMINMMMMMMMMMM
50260.3815691103
652 1/27396.868104103
76.1
80388.996.875111103
1004114.3115.893130103
1255139.7147.6111153103
141.3
1506165.1147.6123165103
168.3
2008219.1133.4160194109

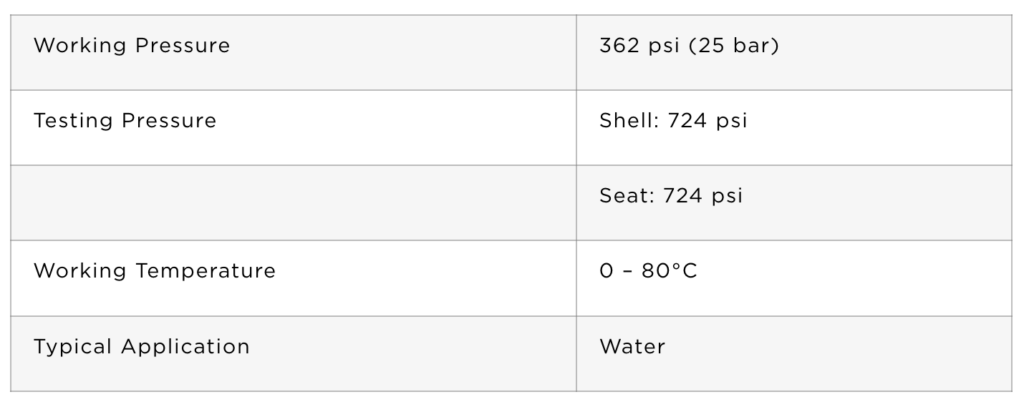

Working Pressure: 362 PSI (25 bar)

Testing Pressure: Shell: 724 PSI | Seat: 724 PSI

Working Temperature: 0°C – 80°C

Typical Application: Water
