'LEDE' XD371X

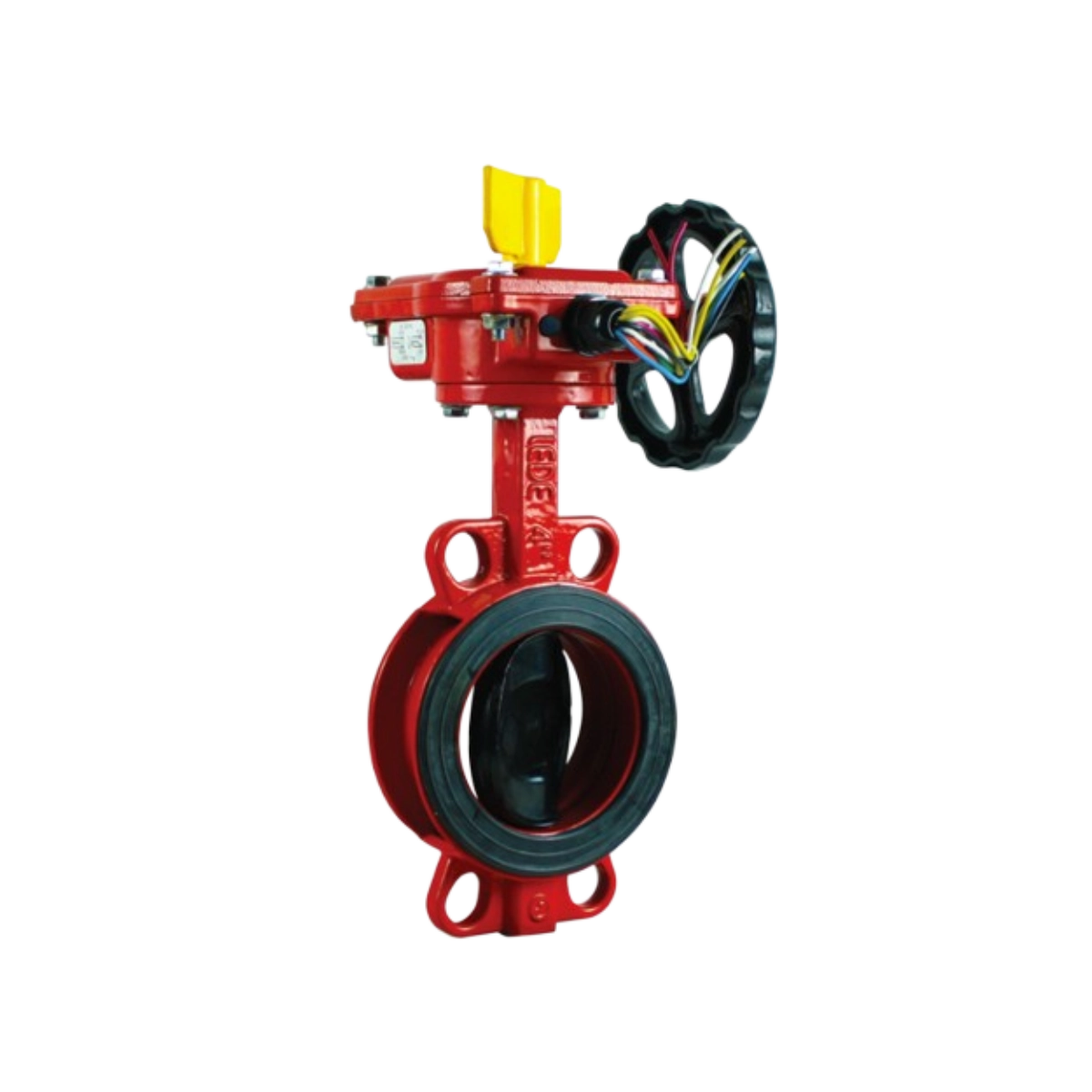

Wafer Type Butterfly Valve With Tamper Switch

Size
50 – 300 mm

Pressure Rating
PN16 / PN25

Type
Worm Gear / Wafer Connection

Ask For A Quote

Dimension:

Quantity:

Certified by

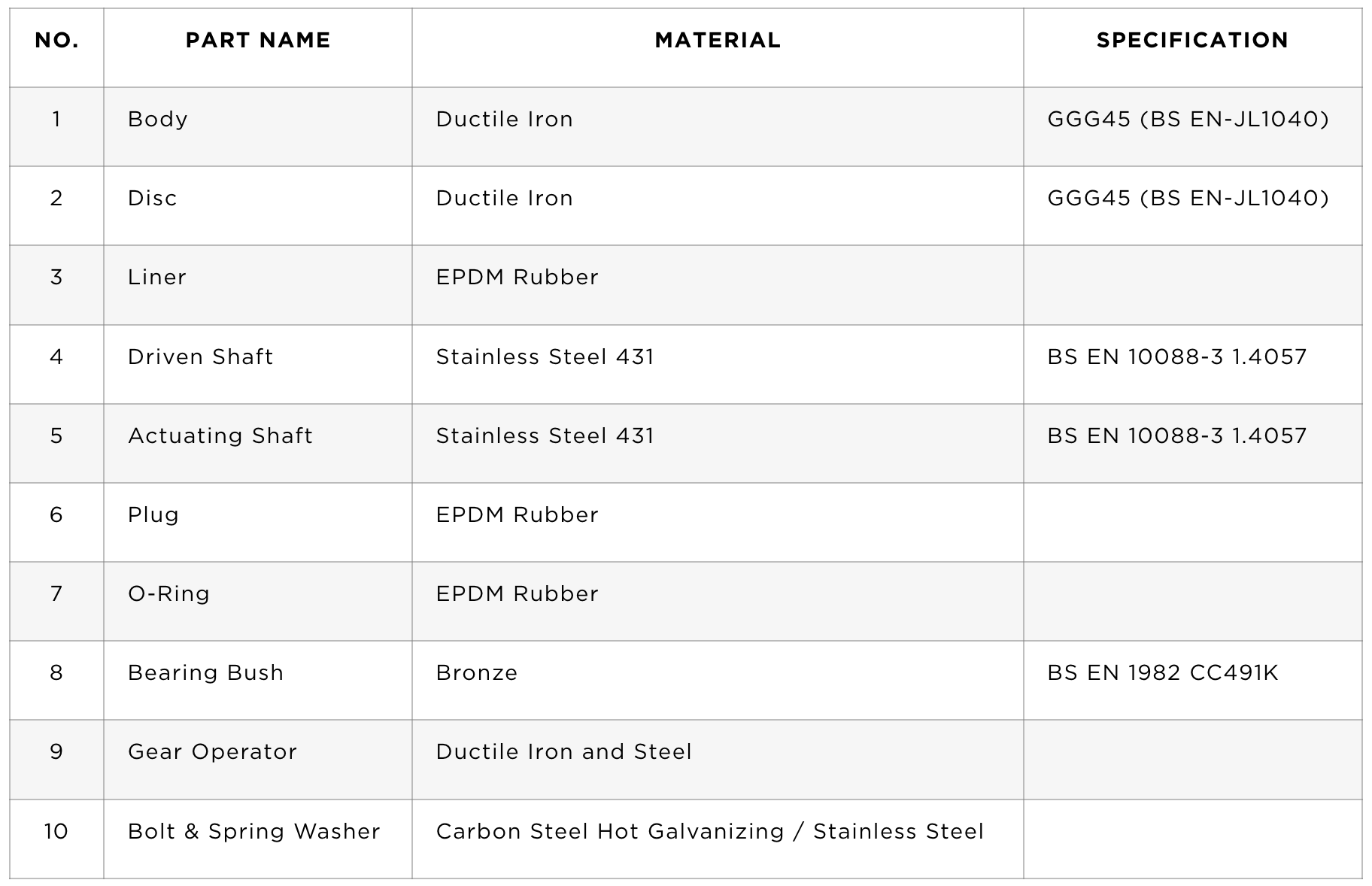

NO.	PART NAME	MATERIAL	SPECIFICATIONS
1	Body	Ductile Iron	GGG45 (EN-JS1040)
2	Disc	Ductile Iron	GGG45 (EN-JS1040)
3	Liner	EPDM Rubber
4	Driven Shaft	Stainless Steel 431	BS EN 10088-3 1.4057
5	Actuating Shaft	Stainless Steel 431	BS EN 10088-3 1.4057
6	Plug	EPDM Rubber
7	O-Ring	EPDM Rubber
8	Bearing Bush	Bronze	BS EN 1982 CC491K
9	Gear Operator	Ductile Iron and Steel
10	Bolt & Spring Washer	Carbon Steel Hot Galvanising / Stainless Steel

Actuator mounting flange conforms to ISO 5211 drilling
Hydrostatically tested to UL 1091
Manufactured in accordance with EN 593:2009
Flanged to EN 1092-2 PN16 / ASME B16.1 Class 125
Applicable for HVAC Systems, Fire Protection Systems, Plumbing / Sanitary Systems

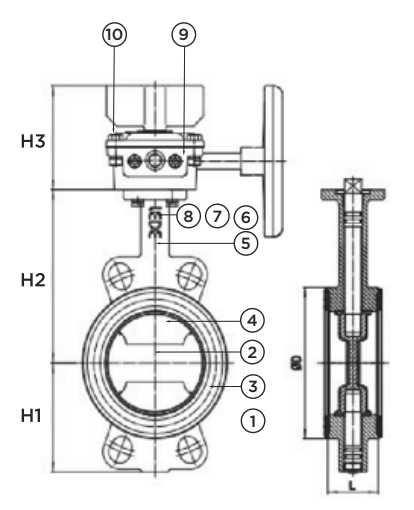

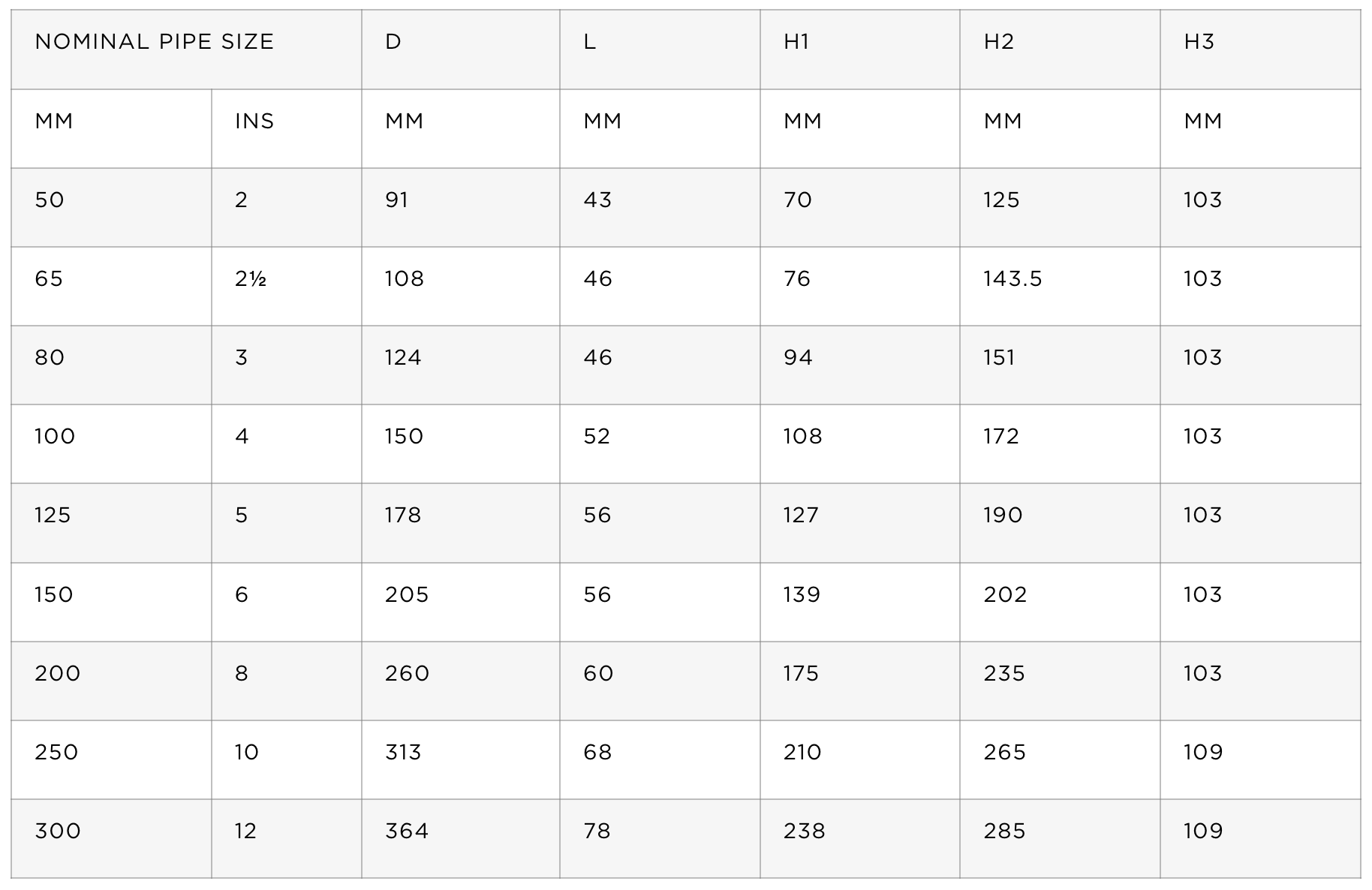

NOMINAL PIPE SIZE		D	L	H1	H2	H3
MM	IN	MM	MM	MM	MM	MM
50	2	91	43	70	125	103
65	2 1/2	108	46	76	143.5	103
80	3	124	46	94	151	103
100	4	150	52	108	172	103
125	5	178	56	127	190	103
150	6	205	56	139	202	103
200	8	260	60	175	235	103
250	10	313	68	210	265	109
300	12	364	78	238	285	109

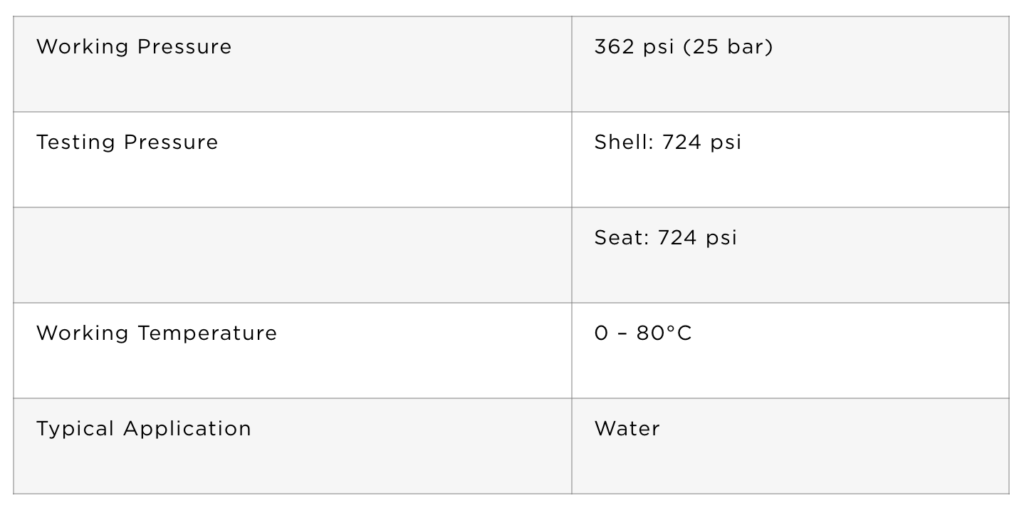

Working Pressure: 362 PSI (25 bar)

Testing Pressure: Shell: 724 PSI | Seat: 724 PSI

Working Temperature: 0°C – 80°C

Typical Application: Water
