'AFA' FIG92

Y-Pattern Strainer (PN16)

Size
50 – 300 mm

Pressure Rating
PN16

Connection
Flanged

Ask For A Quote

Dimension:

Quantity:

Certified by

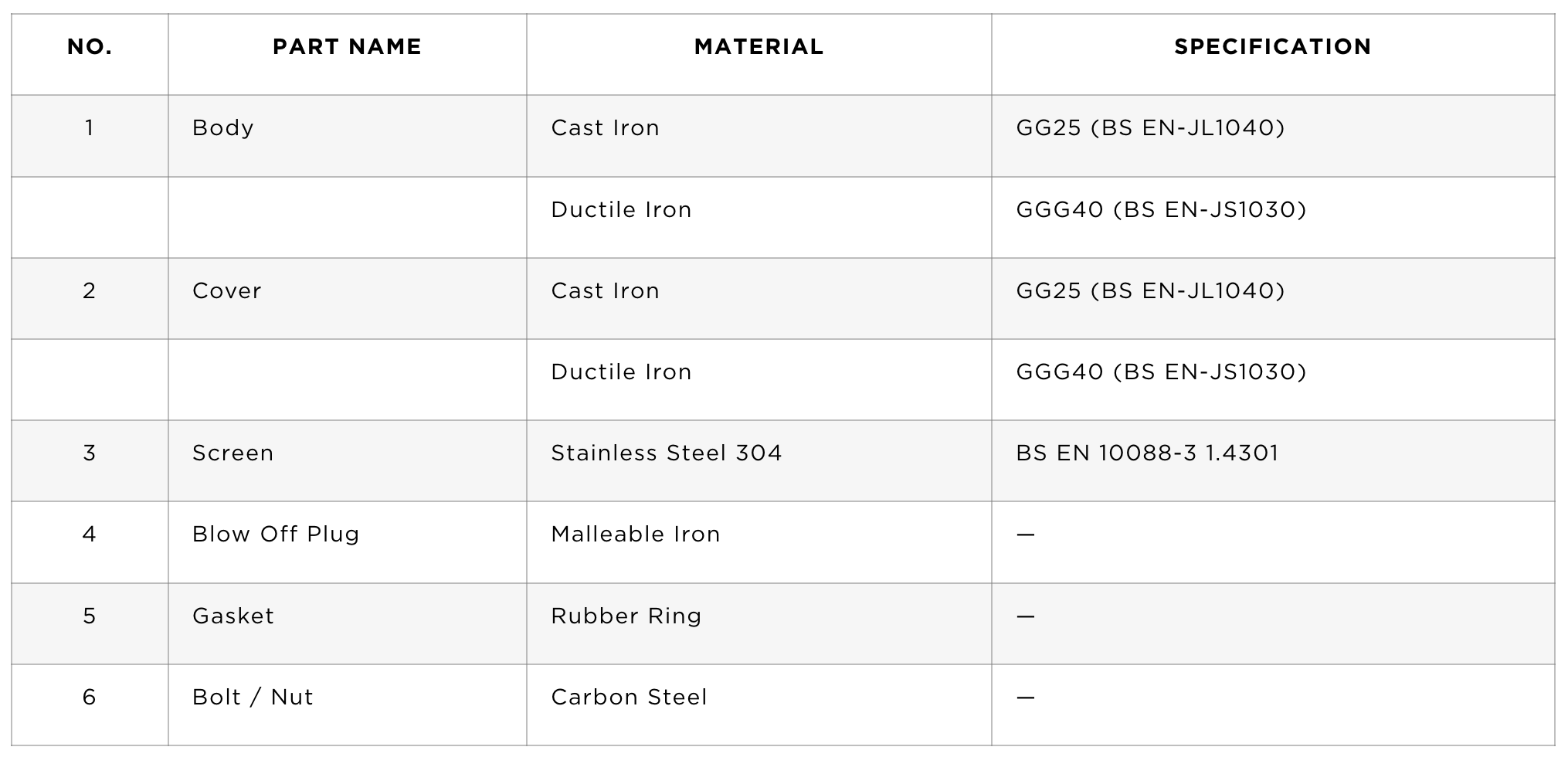

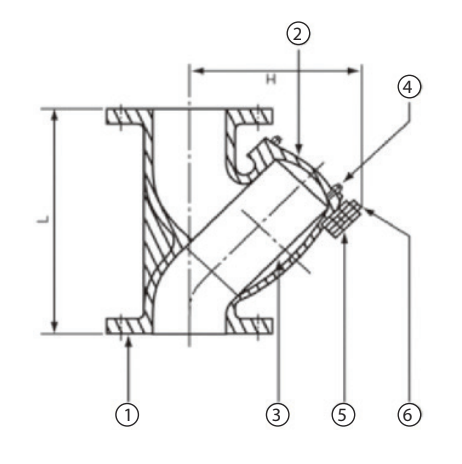

NO.	PART NAME	MATERIAL
1	Body / Cover	Ductile Iron with Epoxy Coated
2	Screen	Stainless Steel 304
3	Gasket	EPDM Rubber
4	Body / Cover	Ductile Iron with Epoxy Coated
5	Screw	Stainless Steel
6	Gasket	EPDM Rubber
7	Plug	Stainless Steel

Filter foreign matter (contaminants / solids) attend in every pipeline and build up to cause blockage
Can be fitted with drain off ball valve for easy cleaning and flushing system
Stainless steel perforated screen
Hydrostatically tested to BS EN 12266-1:2012
Flanged to DIN3230 / EN1092-2 PN10/16
Applicable for HVAC Systems, Fire Protection Systems, Plumbing / Sanitary System, Pump Suction Inlet

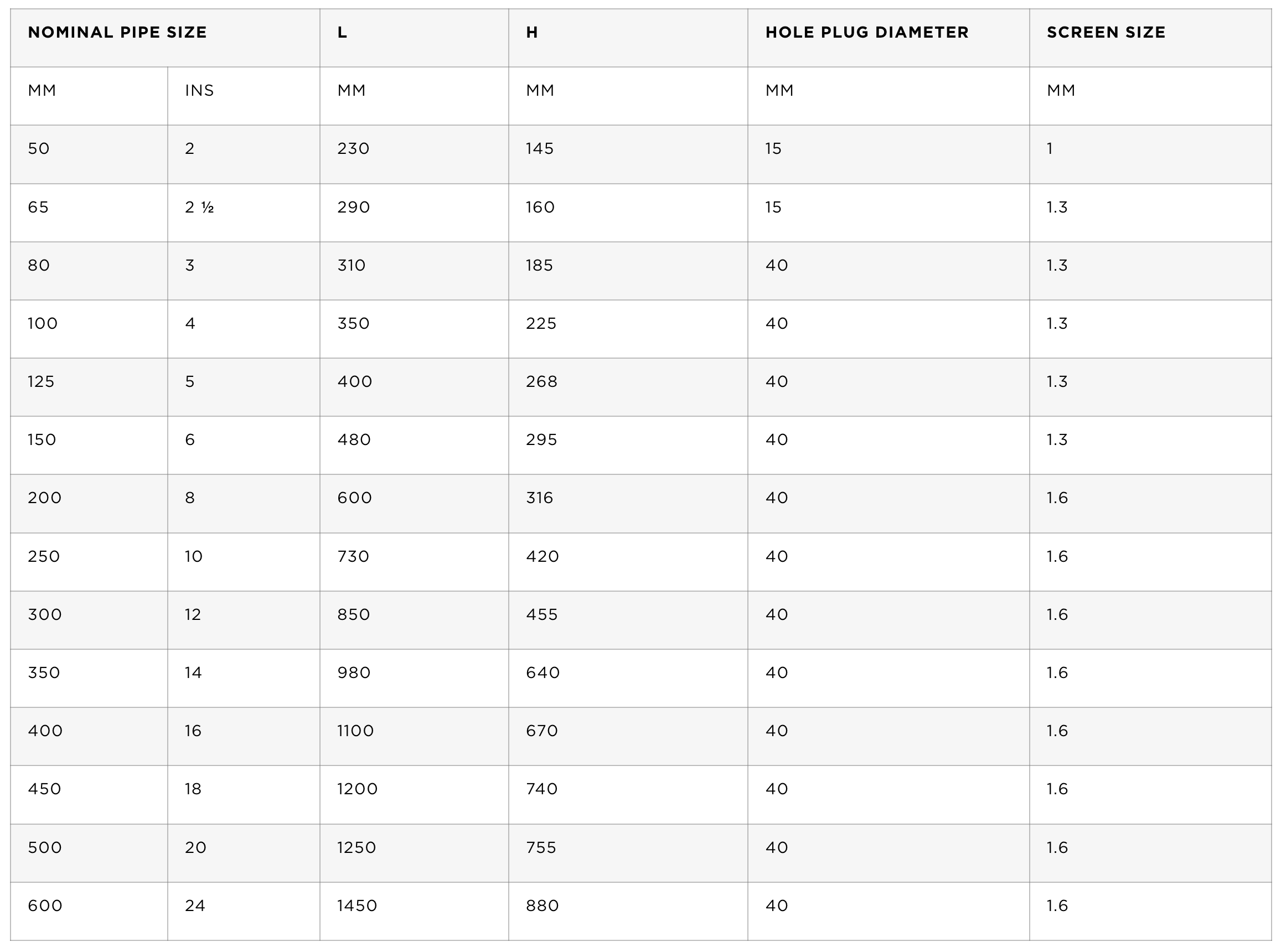

NOMINAL PIPE SIZE		LENGTH (L)	HEIGHT (H)	HOLE PLUG DIAMETER	SCREEN SIZE
MM	IN	MM	MM	MM	MM
50	2	230	145	15	1
65	2 1/2	290	160	15	1.3
80	3	310	185	15	1.3
100	4	350	225	15	1.3
125	5	400	268	20	1.3
150	6	480	295	20	1.3
200	8	600	316	20	1.6
250	10	730	420	20	1.6
300	12	770	608	20	1.6

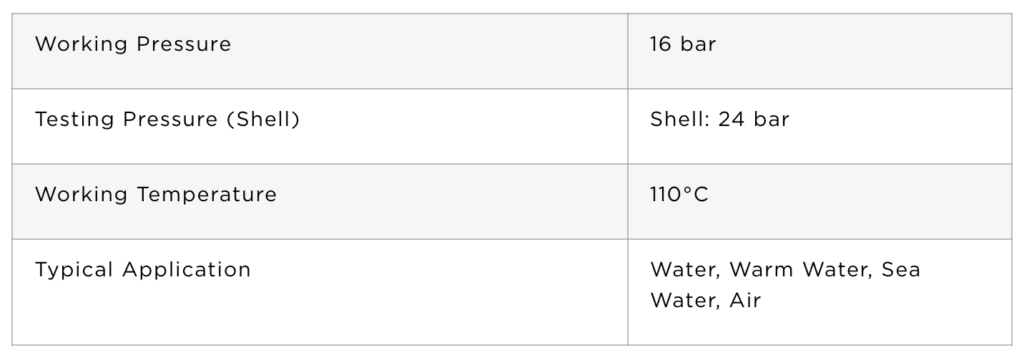

Working Pressure: 16 Bar

Testing Pressure: Shell: 24 Bar

Working Temperature: -10°C – 80°C

Typical Application: Water, Warm Water
