'LEDE' 6102

Y-Pattern Strainer (Grooved End)

Size
50 – 200 mm

Pressure Rating
PN25

Connection
Grooved

Ask For A Quote

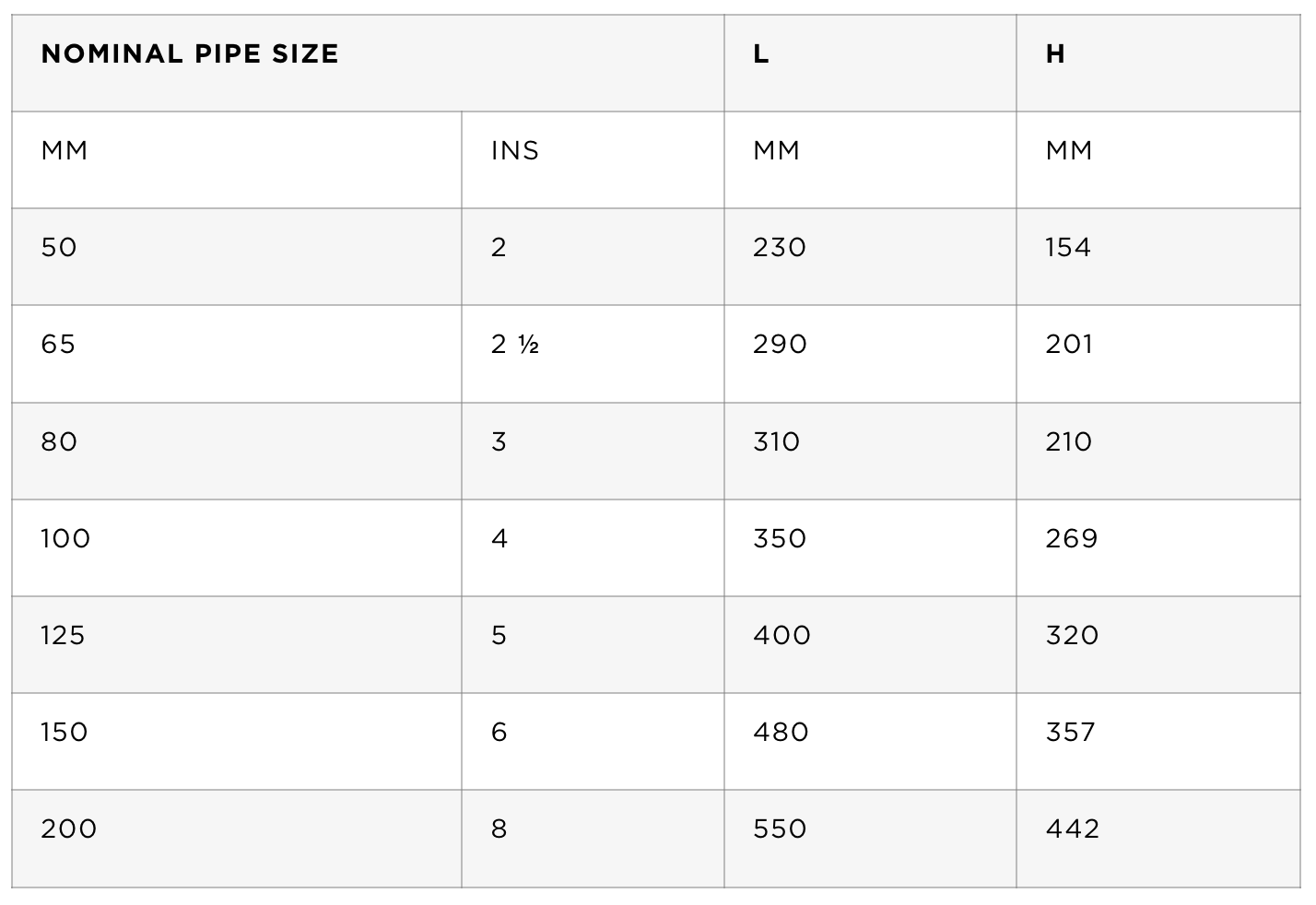

Dimension:

Quantity:

Certified by

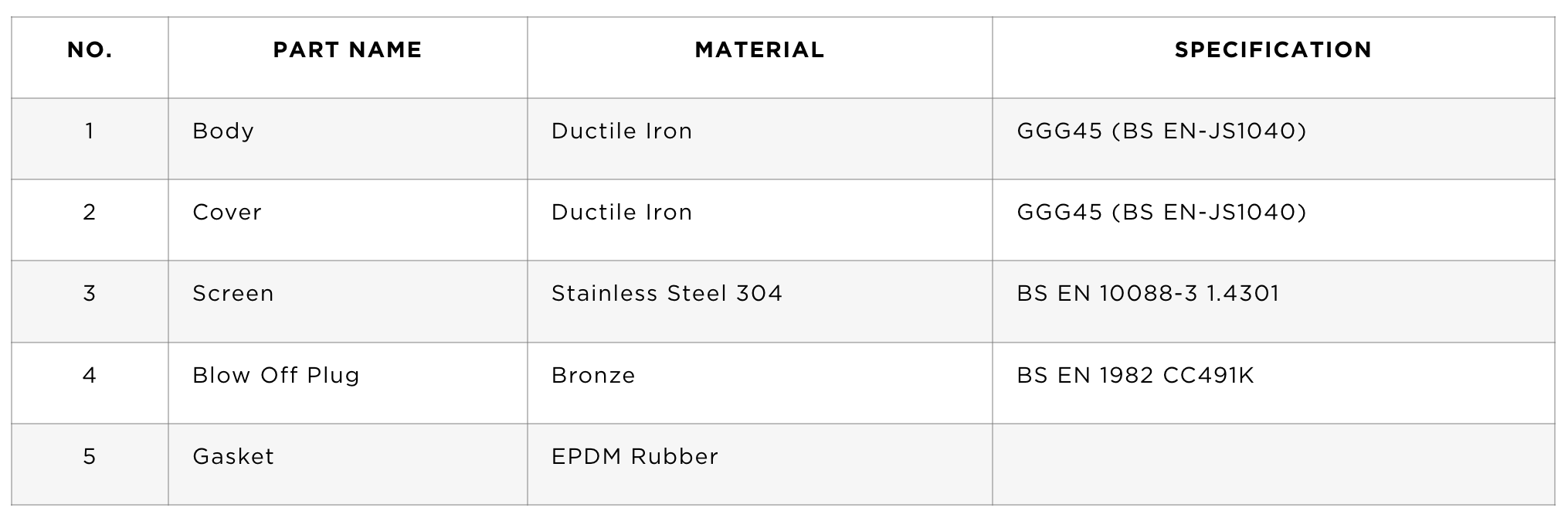

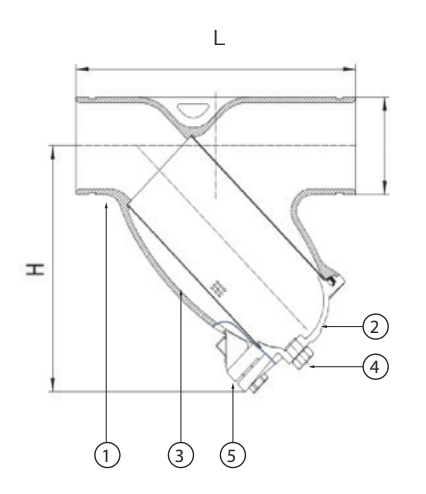

NO.	PART NAME	MATERIAL	SPECIFICATION
1	Body	Ductile Iron	GGG45 (EN-JS1040)
2	Cover	Ductile Iron	GGG45 (EN-JS1040)
3	Screen	Stainless Steel 304	BS EN 10088-3 1.4301
4	Blow Off Plug	Bronze	BS EN 1982 CC491K
5	Gasket	EPDM Rubber

Filter foreign matter (contaminants / solids) attend in every pipeline and build up to cause blockage
Stainless steel perforated screen
Hydrostatically tested to UL321
Grooved to AWWA C606
Applicable for HVAC Systems, Fire Protection System, Plumbing / Sanitary System

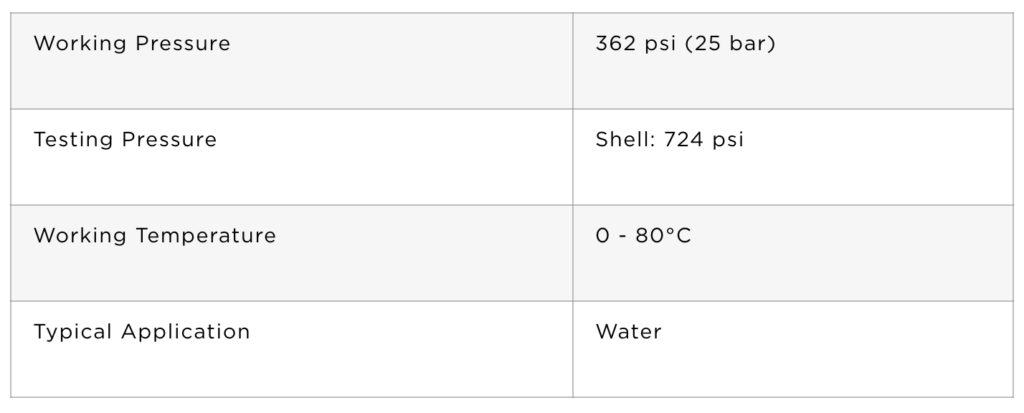

Working Pressure: 362 PSI (25 bar)

Testing Pressure: Shell: 724 PSI

Working Temperature: 0°C – 80°C

Typical Application: Water
