'AFA' FIG92-H

Y-Pattern Strainer (PN25)

Size
50 – 300 mm

Pressure Rating
PN25

Connection
Flanged

Ask For A Quote

Dimension:

Quantity:

Certified by

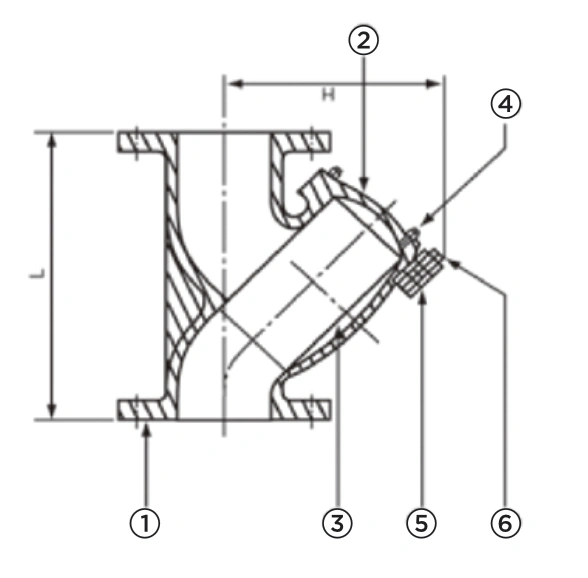

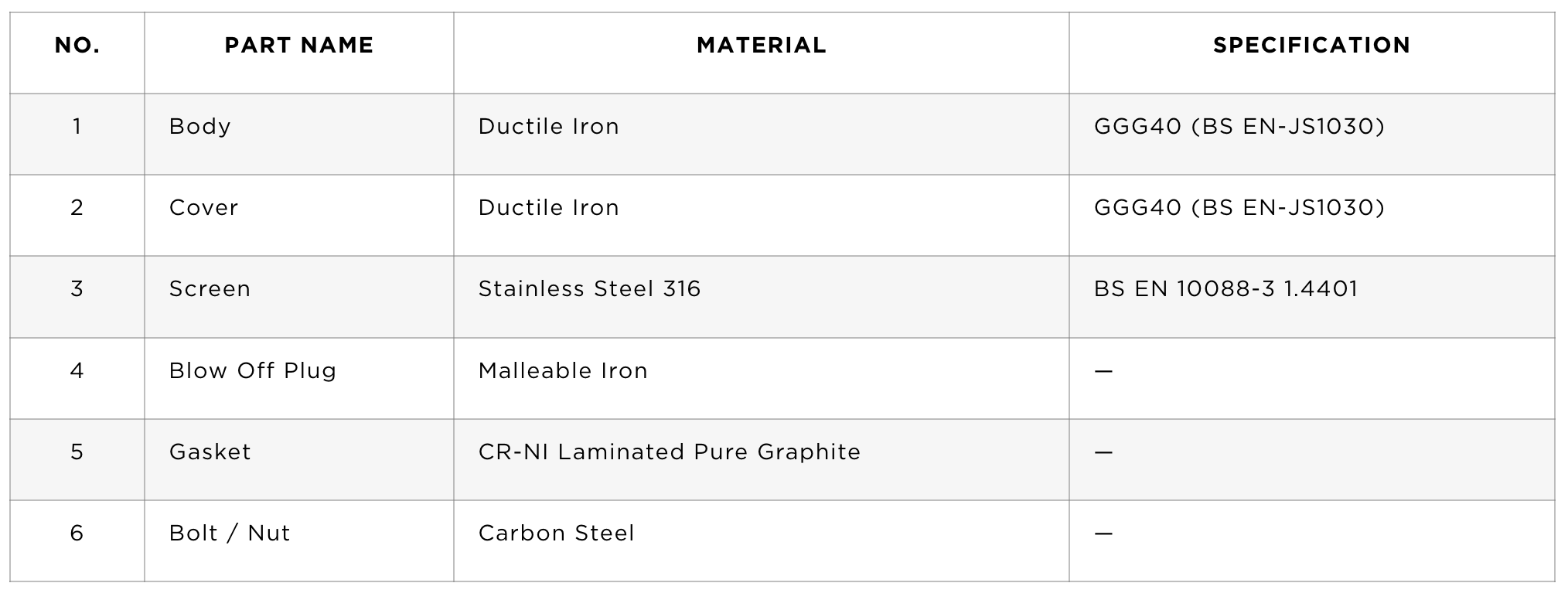

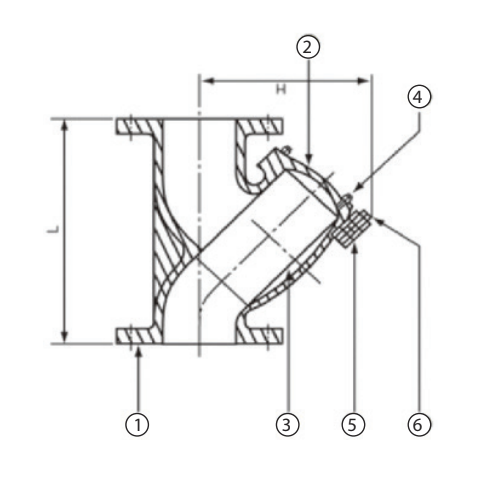

NO.	PART NAME	MATERIAL	SPECIFICATION
1	Body	Ductile Iron	GGG40 (EN-JS1030)
2	Cover	Ductile Iron	GGG40 (EN-JS1030)
3	Screen	Stainless Steel 316	BS EN 10088-3 1
4	Blow Off Plug	Malleable Iron
5	Gasket	CR-NI Laminated Pure Graphite
6	Bolt / Nut	Carbon Steel

Filter foreign matter (contaminants / solids) attend in every pipeline and build up to cause blockage
Can be fitted with drain off ball valve for easy cleaning and flushing system
Stainless steel perforated screen
Hydrostatically tested to BS EN 12266-1:2012
Flanged to EN1092-1 PN25
Applicable for HVAC Systems, Fire Protection Systems, Plumbing / Sanitary System, Pump Suction Inlet

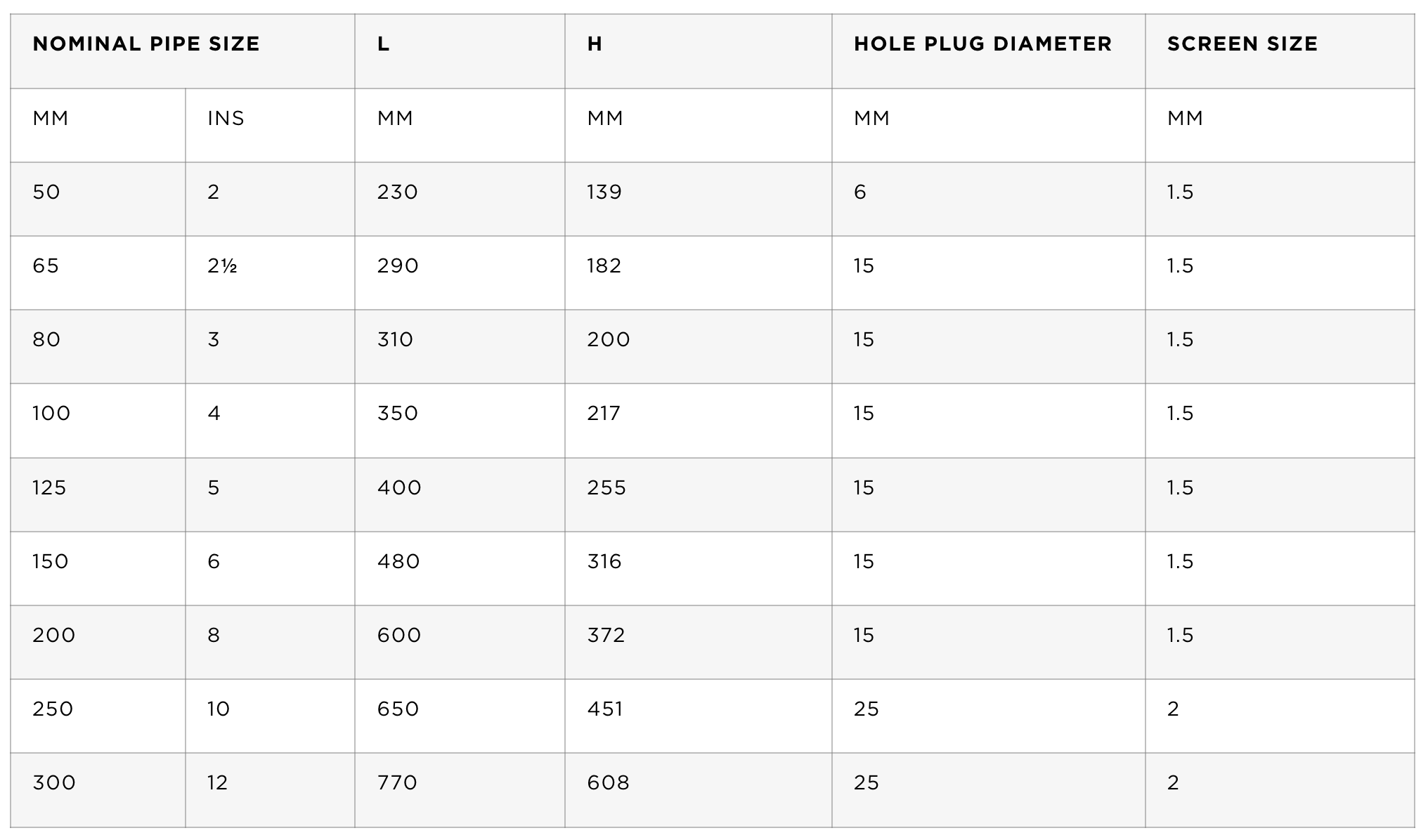

NOMINAL PIPE SIZE		LENGTH (L)	HEIGHT (H)	HOLE PLUG DIAMETER	SCREEN SIZE
MM	IN	MM	MM	MM	MM
50	2	230	139	6	1.5
65	2 1/2	290	182	15	1.5
80	3	310	200	15	1.5
100	4	350	217	15	1.5
125	5	400	255	15	1.5
150	6	480	316	15	1.5
200	8	600	372	15	1.5
250	10	650	451	25	2
300	12	770	608	25	2

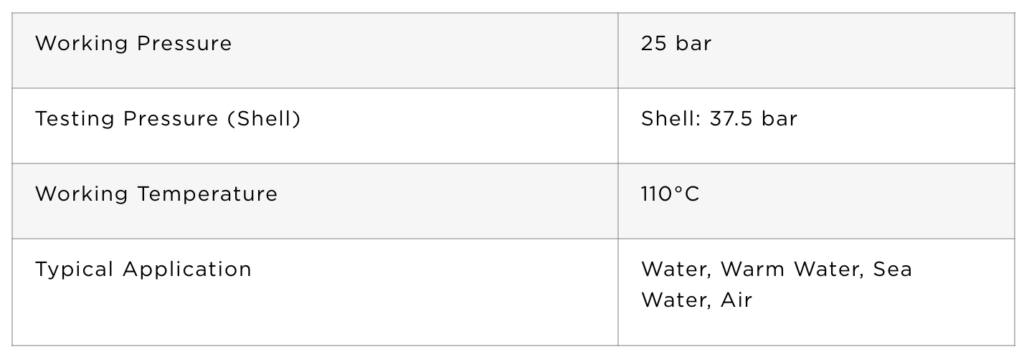

Working Pressure: 25 Bar

Testing Pressure: Shell: 37.5 Bar

Working Temperature: 110°C

Typical Application: Water, Warm Water, Sea Water, Air
