'LEDE' 6101

Y-Pattern Strainer

Size
50 – 300 mm


Pressure Rating
PN20


Connection
Flanged

Ask For A Quote
Quantity:
Certified by

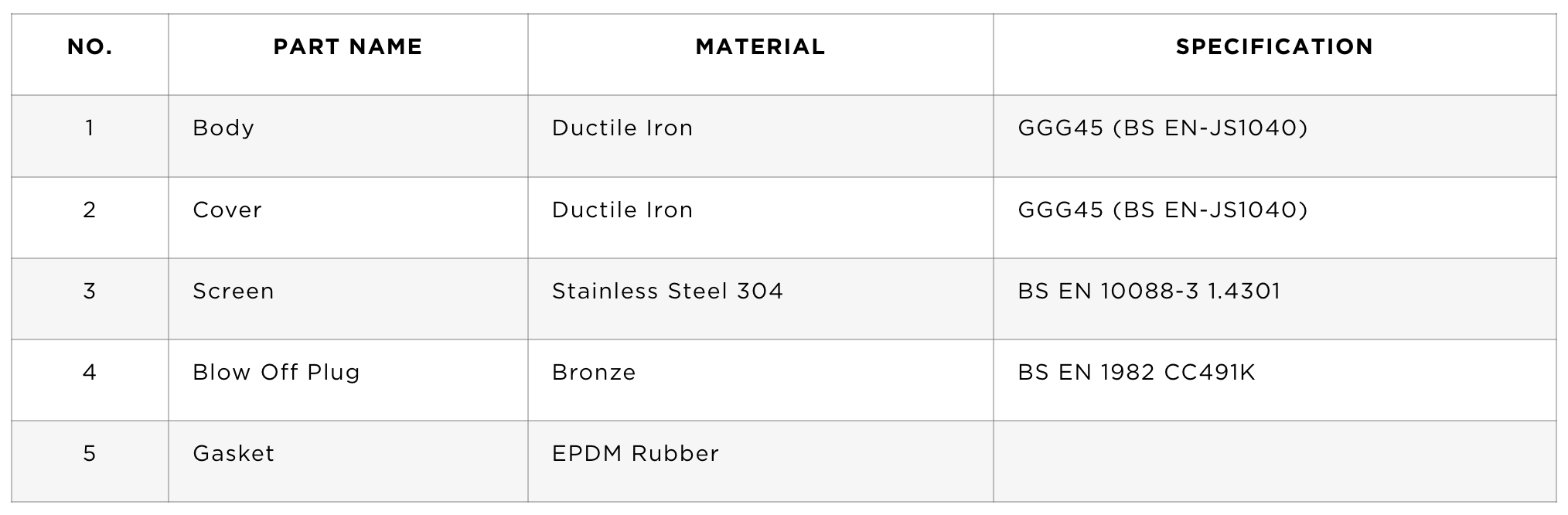

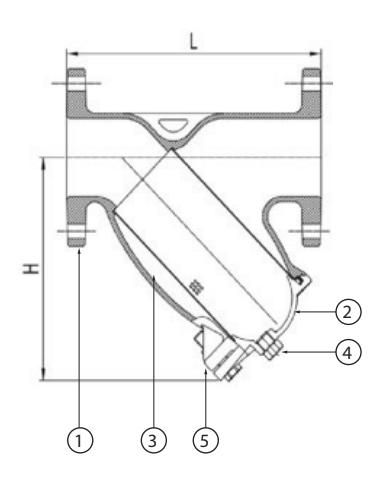

NO.PART NAMEMATERIALSPECIFICATION
1BodyDuctile IronGGG45 (EN-JS1040)
2CoverDuctile IronGGG45 (EN-JS1040)
3ScreenStainless Steel 304BS EN 10088-3 1.4301
4Blow Off PlugBronzeBS EN 1982 CC491K
5GasketEPDM Rubber
  • Filter foreign matter (contaminants / solids) attend in every pipeline and build up to cause blockage
  • Stainless steel perforated screen
  • Hydrostatically tested to UL321
  • Flanged to ASME B16.1 Class 125
  • Applicable for HVAC Systems, Fire Protection System, Plumbing / Sanitary System

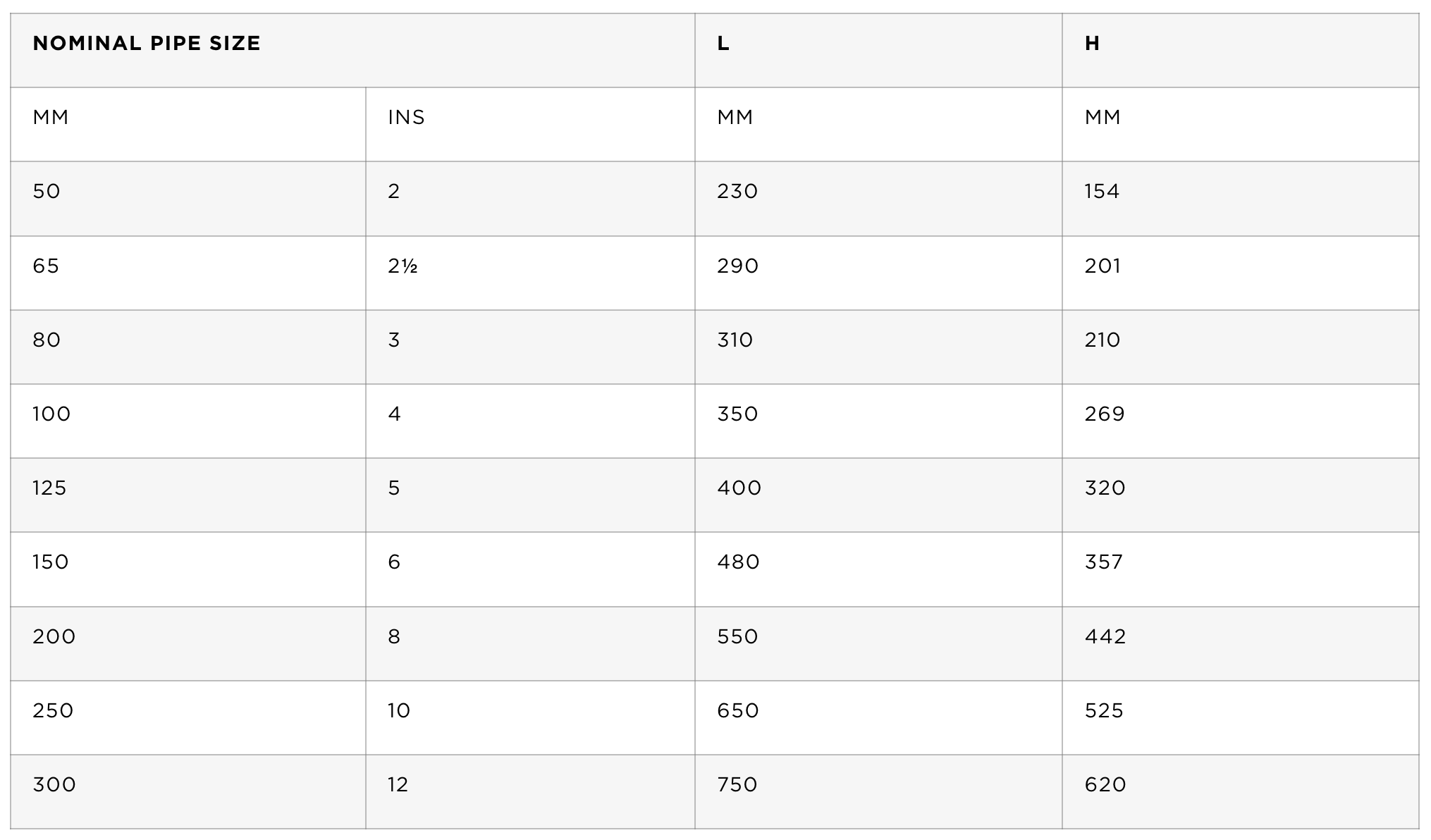

NOMINAL PIPE SIZELENGTH (L)HEIGHT (H)
MMINMMMM
502230158
652 1/2290201
803310210
1004350269
1255400320
1506480357
2008550442
25010650525
30012750620

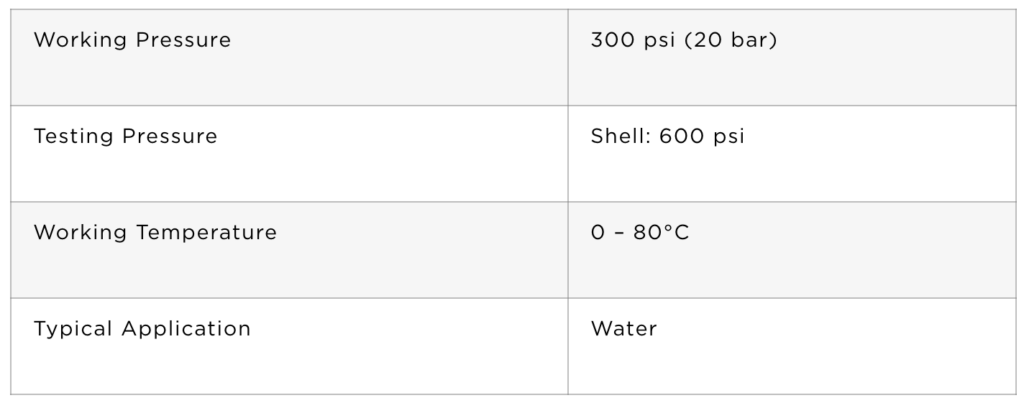

Working Pressure: 300 PSI (20 bar)

Testing Pressure: Shell: 600 PSI

Working Temperature: 0°C – 80°C

Typical Application: Water
